Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH1.0-2xnT 40T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 5~8workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 1.0mm | Pin: | 40P |
|---|---|---|---|
| OEM/ODM: | Accepted | Termination: | Solder |
| Contact Resistance(max): | 30m Ohm Max | Insulation Resistance(min): | 1000M Ohm Min At DC 500V |
| Highlight: | surface mount pin header,male female header pins |
||

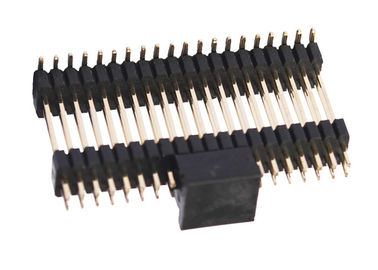

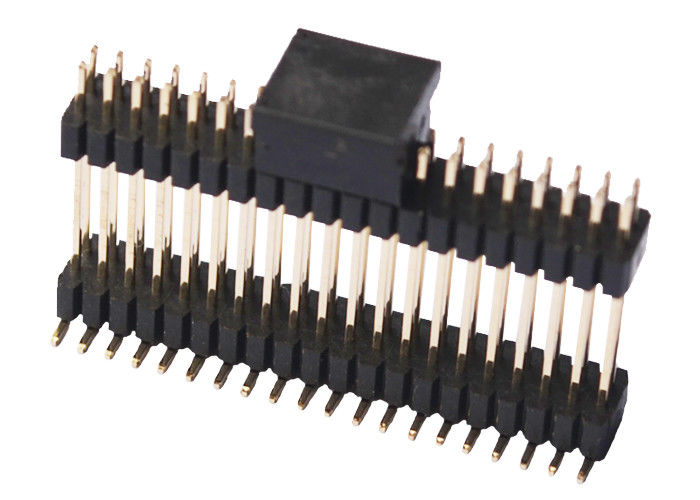

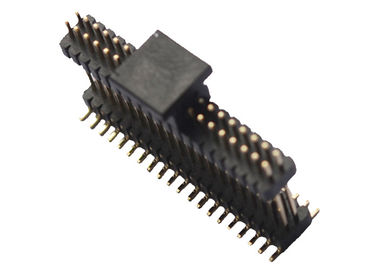

Double Plastic 1.0mm 40Pin Dual Row Pin Header Connector CAP SMT Type
| Name | Pin Header Connector/PCB Connector |
| Pitch | 1.0mm |
| Type | SMT |
| Insulator Color | Black/Grey |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 0.75A |
| Contact Resistance(max) | 3m ohm Max |
| Operating Voltage | 40V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
| Mounting Type | Through Hole/Horizontal/vertical mount smt |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2 Pins to 80 Pins |
Description
1. Its function is to act as a bridge between the blocked or isolated circuits in the circuit, and to take on the task of current or signal transmission.
2. It is usually used together with female header to form board to board connection; or it is used together with electronic harness terminal to form board to line connection; it can also be used independently for board to board connection.
3. It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.
Why choose RealRun?
1. RealRun has more than 10 years experiences in the electronic connectors area.
2. The goods with good quality and service are sold to more than 70 countries.
3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4. One of the biggest electronic connectors supplier in the China mainland.
Shenzhen RealRun Electronic Co., Ltd established in May of 2005, specializes in operating connectors. Main products: Pin header, Female header, Box header, Ejector header, IDC series, IC socket, single and double row round hole socket, FFC/FPC connector and SD socket, FFC cable, flat ribbon cable, RJ45 and RJ11, etc.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: If happend with the defective products when receiving the goods, how to deal with?
1. Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all the responsibility.
2. First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.
3. Second: discuss the solutions.
4. Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.
Q: Which payment can be accepted:
1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Contact Person: sunny
Tel: +86-13066932090
Fax: 86-755-2996-1182
