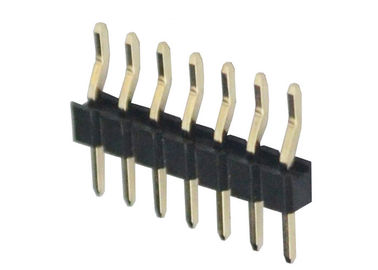

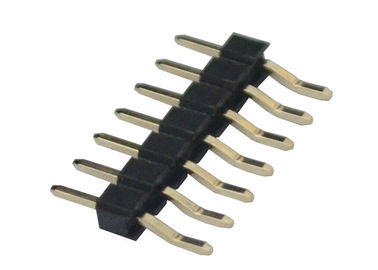

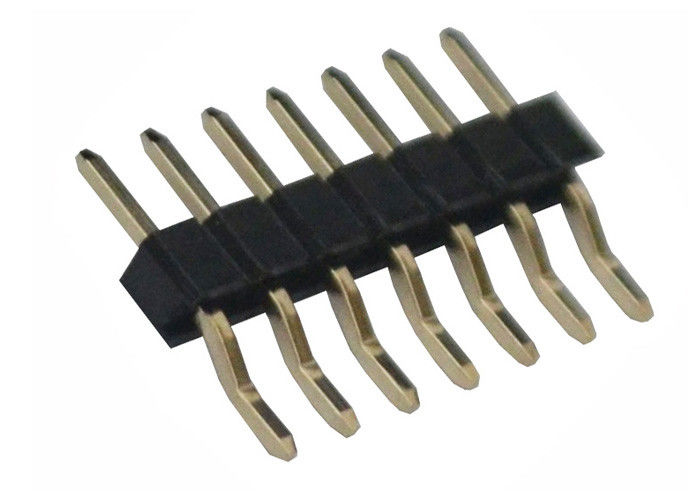

Square Single Row 7 Pin Header Black 2.54 Pitch Connector Horizontal Type

Square Single Row 7 Pin Header Black 2.54 Pitch Connector Horizontal Type

Description

1. Pin header is widely used in LED display, industrial control and power control, instruments and meters, security monitoring, automotive electronics, computers and peripheral equipment, medical devices, household appliances, power supply, various communication equipment, etc

2. Its function is to act as a bridge between the blocked or isolated circuits in the circuit, and to take on the task of current or signal transmission.

3. It is usually used together with female header to form board to board connection; or it is used together with electronic harness terminal to form board to line connection; it can also be used independently for board to board connection.

Category

1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;

2. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).

3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;

4. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);

5. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column;

6. Number of stitches: 02 to 80; 02 to 100;

7. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing.

FAQ

Q: Can I get some samples?

A: Yes,some samples are free.

Q: What’s the delivery time?

A: It usually takes about 5~8 workdays to produce the products.

Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.

Q: How do you guarantee my goods right?

A: Order will be arranged exactly as requested, we will doubly check the packing and qty before delivering out also we will take you photos if required or necessary.
