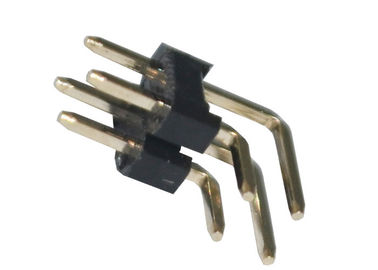

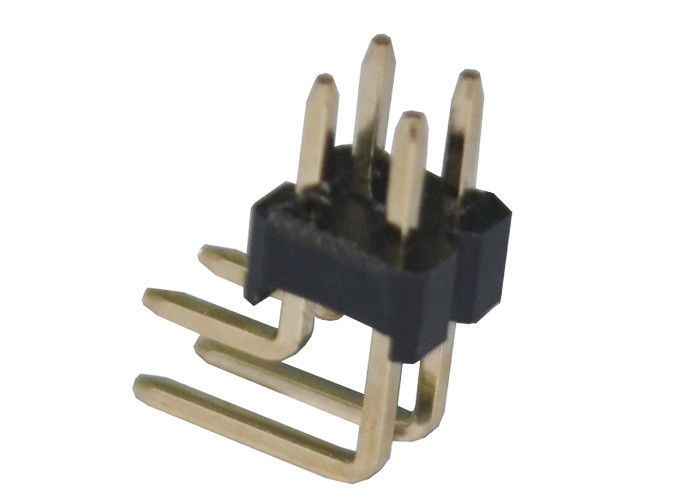

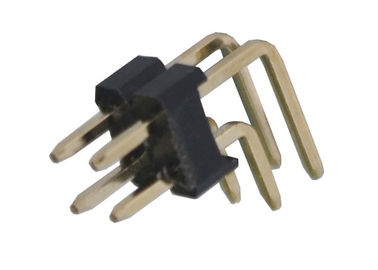

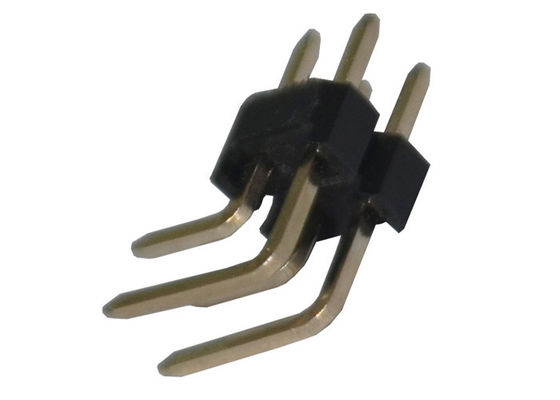

Right Angle Dual Row Pin Header Connector 2.54mm X 2.5mm Insulation Resistance

Right Angle Dual Row Pin Header Connector 2.54mm X 2.5mm Insulation Resistance

Product Name: pin connector

1. features: Single Row Pin Header use of a wide range of environmental protection fireproof anti-oxidation conductive and strong, to be blocked in the circuit between the circuit or isolated, to the bridge function, assume the current or signal transmission task.

2. Single Row Pin Header material: Pin Header is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.

3. scope of application: pin are widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. As the most reliable connection plate to plate, wire to board provides.

Category

1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;

2. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).

3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;

4. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);

5. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column;

7. Number of stitches: 02 to 80; 02 to 100;

9. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing;

FAQ

Q:Do you provide samples ? is it free or extra?

A: Free samples. You need to pay for courier cost. Please contact us for details.

Q: What’s the delivery time?

A: It usually takes about 3~7 workdays to produce the products.

Q:How can I get quotation?
A: It is helpful for us to recommend the right item if we know your detail description or specifications. Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.

Shipping

If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.

Payment

Our company accept T/T, Western union, Paypal, Alipay for payment, Please inform us if you have a prefer payment way.
