| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.54-2xnW 8W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pin: | 8P | Contact Resistance(max): | 30m Ohm |
|---|---|---|---|
| Plastic Hight: | 2.0mm | Operating Temperature: | -40~105℃ |
| Withstanding Voltage: | 500VAC | Insulation Resistance(min): | 1000M Ohm |
| High Light: | 500VAC Pin Header Connector,Insulator PA6T Pin Header Connector,3A Pcb Header Connector |
||

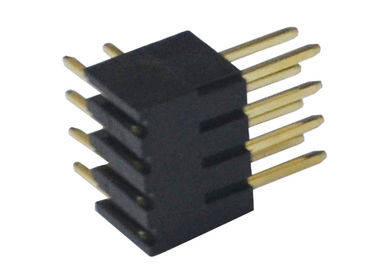

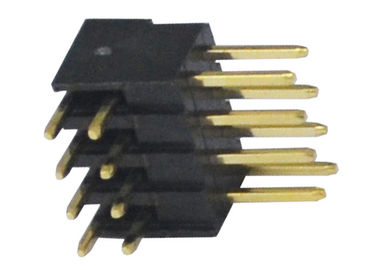

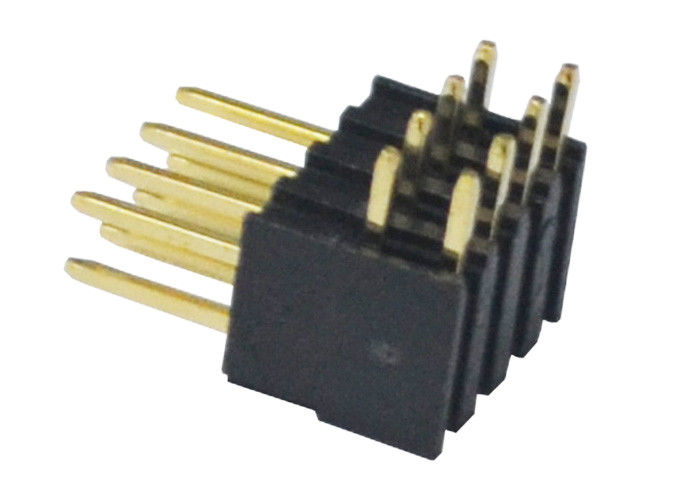

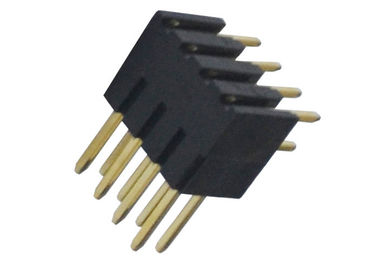

2.54 Mm Pin Connector Right Angle Pcb Header High Temperature Resistant
| Name | Pin Header Connector/PCB Connector |
| Pitch | 2.54mm |
| Plastic Hight | 7.4mm |
| Type | Right Angle Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 30m ohm Max |
| Withstanding Voltage | 500V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
| Mounting Type | Horizontal |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2 Pins to 80 Pins |
What is the Pin Header Connector?
Pin Header Connector is usually used together with female header to form board to board connection; or it is used together with electronic harness terminal to form board to line connection; it can also be used independently for board to board connection.
Product Application
Pin Header Connector are widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. As the most reliable connection plate to plate, wire to board provides.
Product features
The use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
Category
1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;
2. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);
3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;
4. According to the Height: 1.0/1.5/2.5mm;
5. Number of stitches: 02 to 80;
6. Number of stitches: 02 to 80; 02 to 100;
7. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing;
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.
Why Choose RealRun?
1. Best quality, most of products are made by ourselvs.
2. Good price, the cheapest in the same quantity level.
3. All kinds of products passed ROHS,REACH export.
4. Inspections: 100% tested before delivery.
5. Available for ODM/OEM order.
