| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH5.08-1xnT 3T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 5.08mm | Pin: | 3P |
|---|---|---|---|
| Insulator Color: | White | Plastic Hight: | 2.5mm |
| Current Rating: | 7A | Operating Temperature: | -40~105℃ |
| High Light: | male female header pins,connector pin header |
||

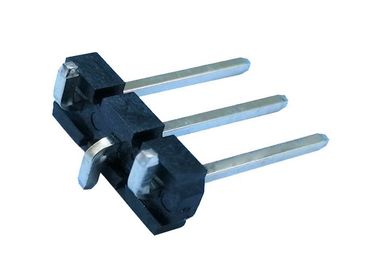

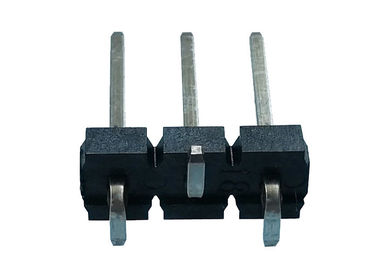

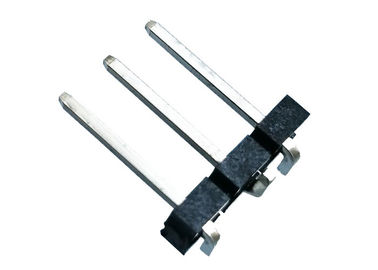

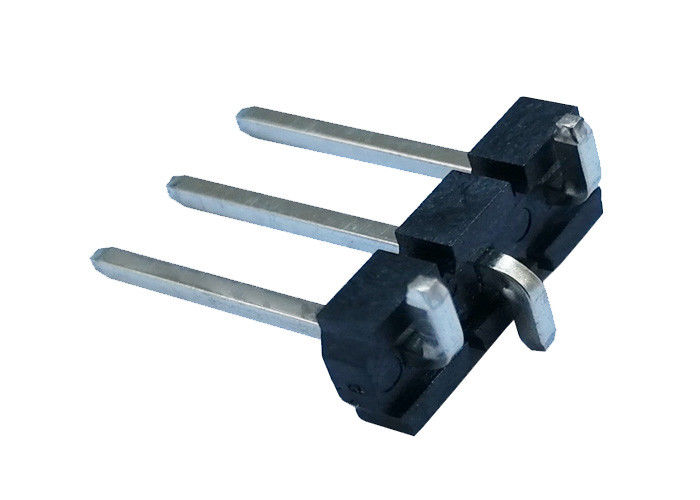

3 Pin Single Row Pin Header Connector SMT Type Black 5.08x2.5mm Pitch
| Product Name: pin connector | ||||||||
| features: It is usually used together with female header to form board to board connection; or it is used together with electronic harness terminal to form board to line connection; it can also be used independently for board to board connection. | ||||||||
| product material: It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel. | ||||||||
| Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. Provide the most reliable connection for the plate to plate and the line to plate. |
|
Pitch: 3.96mm |
|||||
| Plastic Hight: 3.2mm | |||||
| Rated Current:7.0AMP | |||||
| Contact Resistance: 20mΩ Max | |||||
| Withstand Voltage:1000V AC/DC | |||||
| Insulation Resistance:1000MΩ Min | |||||
| Operation Temperature: -40°c to +105°c | |||||
| Contact Material :brass | |||||
| Contact Plating: Au Over Ni | |||||
| Insulator Material :Polyester (UL94V-0) | |||||
|
Termination: Solder |
|||||
|
Processing Temperature: 260±5℃ for 10 seconds |
Packing & Shipping
1. Housing: bag /SMT Wafer:tape and reel/terminal:tape and reel .Normally,we use the carton with good quality to put all goods in it in case any damage during the delivery.
2. The way of shipment : by sea, by air, or express such as DHL/TNT/UPS etc.
3. Delivery Time: normally 3~7wroking dasy. For urgent orders ,we can shorten the delivery time accordingly.
Why choose RealRun?
1. best quality,most of products are made by ourselvs.
2. good price,the cheapest in the same quantity level.
3. prompt reply in 24hours.
4. fast delivery,the stock goods will be delivered whinin three days and the customized goods will be delivered within five days as soon as we received the T/T money.
5. All kinds of products passed ROHS,REACH export
6. Inspections:100% tested before delivery
7. Available for ODM/OEM order
8. Please contact us so we can offer you the best quality,competitive price and timely delivery.
