Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH5.08-1xnP 3P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 5.08mm | Pin: | 3P |
|---|---|---|---|
| Insulator Color: | Black | Plastic Hight: | 2.5mm |
| Current Rating: | 7A | Operating Temperature: | -40~105℃ |
| Highlight: | SGS Straight Pin Header Connector,3P Polyester Pin Header Connector,5.08X2.5mm Female Header Connector |
||

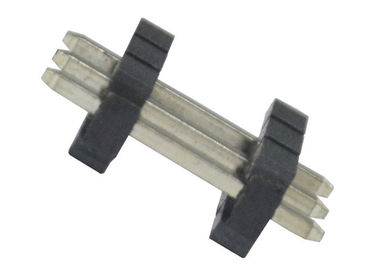

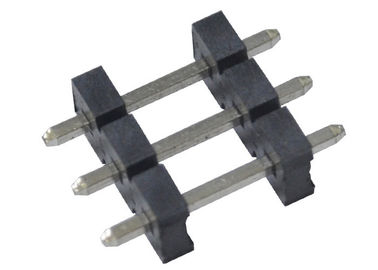

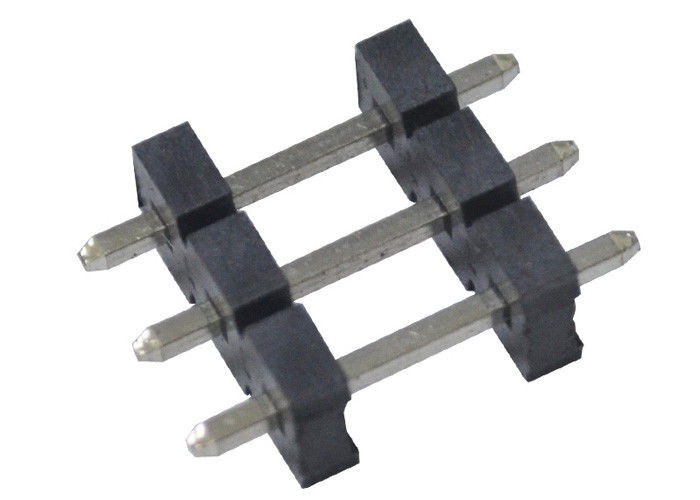

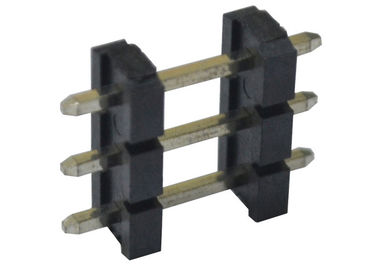

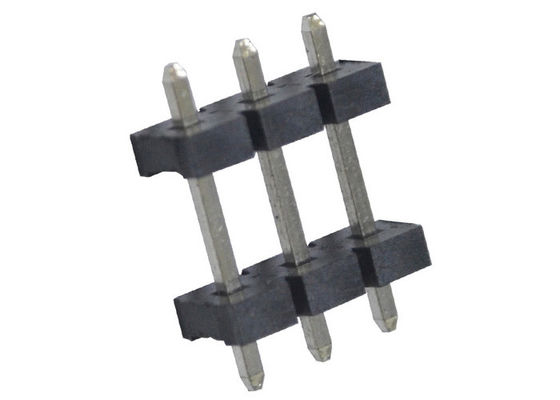

Single Row Straight Pin Header Pitch 5.08 X 2.5mm Female Header Double Plastic
| Product Name: pin connector | ||||||||
| features: It is usually used together with female header to form board to board connection; or it is used together with electronic harness terminal to form board to line connection; it can also be used independently for board to board connection. | ||||||||
| product function : Its function is to act as a bridge between the blocked or isolated circuits in the circuit, and to take on the task of current or signal transmission. | ||||||||
| Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. Provide the most reliable connection for the plate to plate and the line to plate. |
|

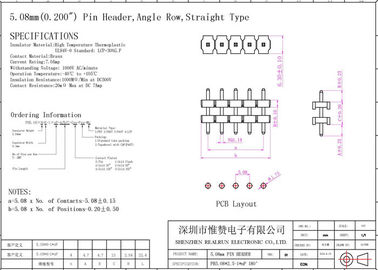

Pitch: 5.08mm |
|||||
| Plastic Hight: 2.5mm | |||||
| Rated Current:7.0AMP | |||||
| Contact Resistance: 30mΩ Max | |||||
| Withstand Voltage:500VAC/DC | |||||
| Insulation Resistance:1000MΩ Min | |||||
| Operation Temperature: -40°c to +105°c | |||||
| Contact Material :brass | |||||
| Contact Plating: Au Over Ni | |||||
| Insulator Material :Polyester (UL94V-0) | |||||
|
Termination: Solder |
|||||
|
Processing Temperature: 260±5℃ for 10 seconds |
Packing & Shipping
1. Housing: bag /SMT Wafer:tape and reel/terminal:tape and reel .Normally,we use the carton with good quality to put all goods in it in case any damage during the delivery.
2. The way of shipment : by sea, by air, or express such as DHL/TNT/UPS etc.
3. Delivery Time: normally 3~7wroking dasy. For urgent orders ,we can shorten the delivery time accordingly.
Why choose RealRun?
Automatic Production
More than 80% RealRun products are made by automatic assembly lines. As intelligent is more and more widely in use, We could only adapt the development of the times,so that we could provide most qualified products to our clients.
Delivery on time
Every customer is distinctive,so we have to make every delivery in time to cherish every chance given by our customers.
Make Value
Business is like a long journey. The value is the views on the way.Making value for the customers is to make value for the company ,as mutual win-win is our goal.
Instant Response
Everybody will get in trouble now and then,same as working time. Instant response might be possible to solve the problems customers meet in time.
