Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH1.27*3.4-1*nPBW 6PBW |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 1.27mm | Color: | Black/White |
|---|---|---|---|
| Application: | PCB Board | Insulator Material: | PA6T//PA9T/LCP |
| Processing Temperature: | 260±5℃ For 10 Seconds | Plastic Height: | 3.4mm |
| Highlight: | female pin header connector,right angle female header |
||

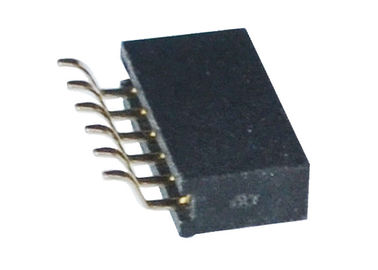

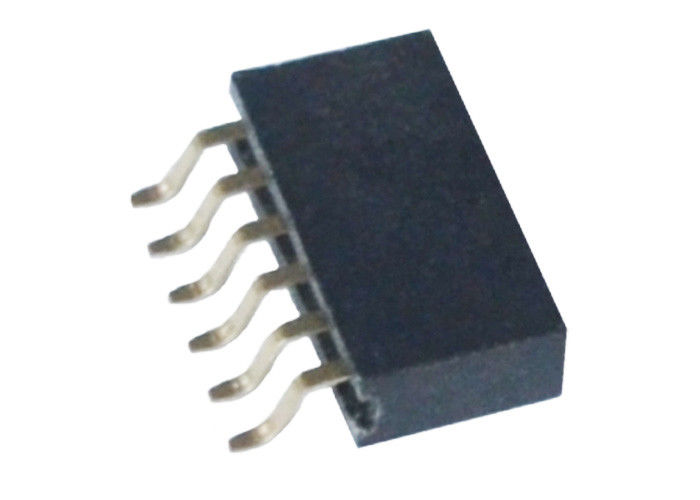

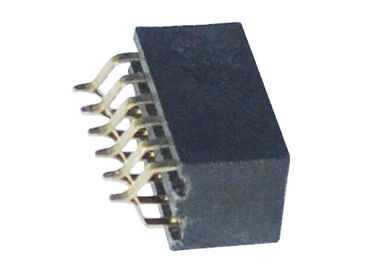

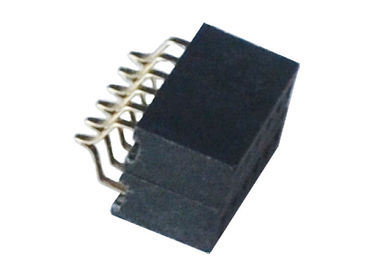

Single / Double Row Female Header 1.27mm 6 Pin Connector Horizontal SMT Type
| Product Name | female header connector |
| Pitch | 0.8mm,1.0mm,1.27mm,2.0mm,2.54mm,3.96mm,5.08mm |
| Detail | DIP,SMD,90 degree,180 degree |
| Housing | PA6T/PA9T/LCP+30%G.F UL94V-0 |
| Insulator Height for Choice | 3.50mm ,3.60mm ,4.50mm ,5.00mm ,5.70mm ,5.90mm ,6.00mm ,6.80mm ,6.90mm ,7.10mm ,7.20mm ,7.50mm ,8.40mm ,8.50mm ,8.60mm ,11.0mm |
| Pin | 02~80P |
| Contact Material | Phosphor Brass,Brass |
| Insulator Material | PBT,PA6T,PA9T,LCP,PA66,PA46,PPS,PA115(Halogen Free) |
| Rating Current | 3.00AMP |
| Contact Resistance | 20mΩ Max |
| Withstanding Voltage | AC 1000V/Minute |
| Insulating Resistance | 1000MΩ Min |
| Temperture Range | -40°C to +105°C |
| Plating | Gold(Au) or Tin(Sn) plated over Nickel(Ni) |
| Packaging | PE Bag,Tube,Tape&Reel,Tube+CAP,Tray,Plastic Box |
Item name: female connector:
1.product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
2.product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0.
3.scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
Payment
Our company accept T/T, Western union, Paypal, Alipay for payment, Please inform us if you have a prefer payment way.
Refund & Replacement
1. We provide 3 months warrantly;
2. Any items must be returned in their original condition to qualify for a refund or replacement.
3. The buyer is responsible for all the shipping cost incurred.
We have a large stock and the prices are variable,so sometimes the prices we post are not accurate.If needed,pls contact us for specific prices.
