| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.0*2.2-2*nT 20T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.0mm | Color: | Black |
|---|---|---|---|
| Application: | PCB Board | Insulator Material: | PA6T//PA9T/LCP |
| Processing Temperature: | 260±5℃ For 10 Seconds | Operating Temperature: | -40~105℃ |
| High Light: | female pin header connector,right angle female header |
||

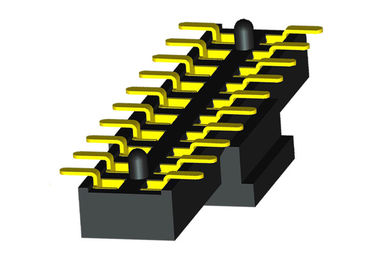

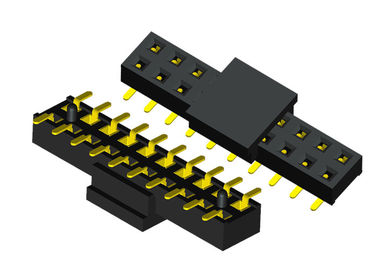

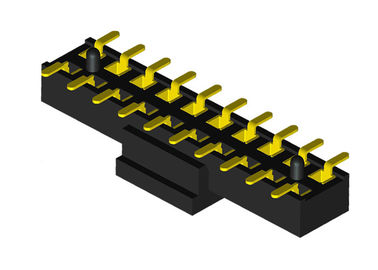

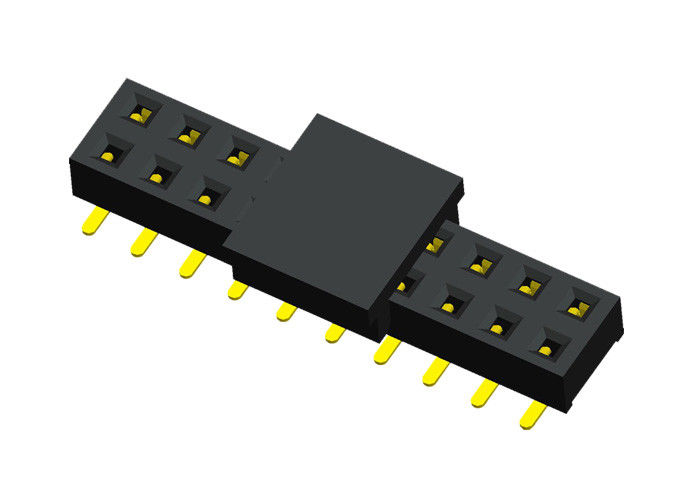

20 Pin Black Female Header Connector Double Row 2.0mm Pitch With CAP
| Current Rating | 2.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | phosphor Bronze |
| Contact Plating | AU over Ni |
| Insulator Material | PA9T+30％GF UL94V-0 |
| Item name: 2.0mm female pin connector | ||
| 1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance. | ||
| 2. product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0. | ||
| 3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection. |
Why Choose RealRun
Automatic Production
More than 80% CNJWY products are made by automatic assembly lines. As intelligent is more and more widely in use, We could only adapt the development of the times,so that we could provide most qualified products to our clients.
Delivery on time
Every customer is distinctive,so we have to make every delivery in time to cherish every chance given by our customers.
Make Value
Business is like a long journey. The value is the views on the way.Making value for the customers is to make value for the company ,as mutual win-win is our goal.
Instant Response
Everybody will get in trouble now and then,same as working time. Instant response might be possible to solve the problems customers meet in time
FAQ
Q: Can I get some samples?
A: Yes, sample order is available, samples are free. and it will be freight collect payment.
Q : How long is your lead time?
A: Normally, our lead time is 3-7 days according to different products.
Q: What’s your payment term?
A: We accept T/T and Paypal.
Q. which payment can be accepted:
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
