Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.0*4.5-1*nT 5T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.0mm | Color: | Black |
|---|---|---|---|
| Application: | PCB Board | Insulator Material: | PA6T//PA9T/LCP |
| Processing Temperature: | 260±5℃ For 10 Seconds | Operating Temperature: | -40~105℃ |
| High Light: | right angle female header,smd female header |
||

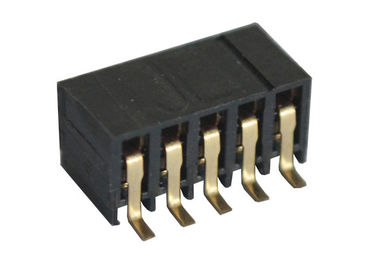

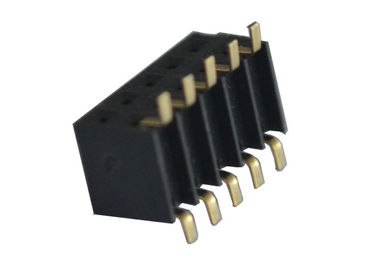

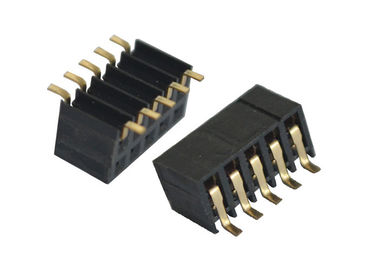

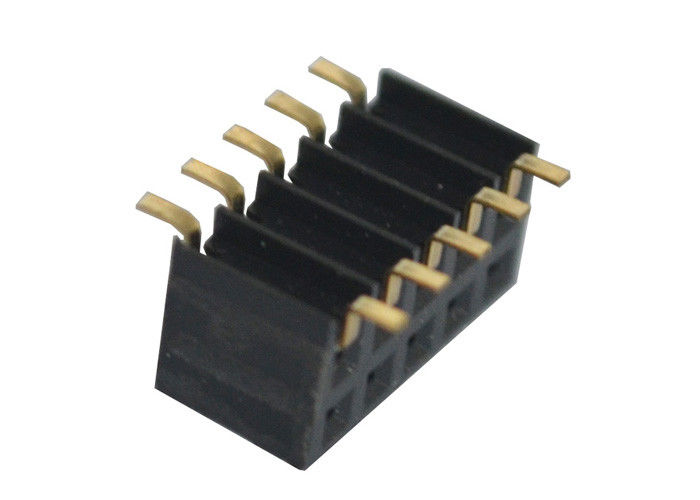

Surface Mount Pin Header Black 2.0mm Pitch Single Row 5 Pin Female Header
| Current Rating | 2.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | phosphor Bronze |
| Contact Plating | AU over Ni |
| Insulator Material | PA9T+30％GF UL94V-0 |
Product Name: female connector
1. features: the use of a wide range of environmental protection fireproof antioxidant strong conductivity
2. material: PA9T/PBT/ brass or phosphor bronze; dielectric materials: plastic UL 94V-0
3. scope of application: general are widely used in electronics, electrical appliances, instrument connection device mainly plays the role of a current or signal transmission. Usually with pin supporting the use, composition of board to board connection. Or with electronic wiring harness terminal supporting the use of, constitute the board of line connection.
Payment & Shipping
Payment
1. We can accept China domestic bank(RMB) is available too,you can choose the best way for yourself
2. For small amount,if all instock,after you arrange payment we will arrange shipment 1-3 days;For quantity amount,usually we require 50% pre-payment,the rest payment need done before delivery
3. Make sure that you have completed all the details information,such as contact person,adress,post
4. code and telephone,etc.
Shipment
1. We can use any one of UPS ,Fedex and DHL
2. For big quantity,if you choice sea or air shipment,has other requirement need inform us in advance
3. All terms will be shipped 7-15 working days after receiving payment,if this is an urgent order,we can insist your requirement]
Why choose RealRun?
1. Professional R & D, production, sales as one of the industrial companies;
2. With advanced production equipment and testing equipment abroad, with advanced product design, development and manufacturing capabilities;
3. Through ISO9001, ISO14001, ROHS, CE, reach, UL certification;
4. Main board to board, board to line, line to line, I / O, IC base, storage connector;
5. The products are widely used in mobile devices, LED displays, computer peripherals, automobile peripherals, power peripherals, medical equipment, household appliances and monitoring equipment, TV and TV set-top boxes, instruments and meters, network peripherals and other equipment products;
6. It mainly cooperates with domestic large and medium-sized well-known enterprises and international well-known multinational companies. Its products are exported to Europe and America, Japan and South Korea, Singapore, and all over the world.
