Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.0*5.0-2*nW 14W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.0mm | Current Rating: | 1.0A |
|---|---|---|---|
| Contact Resistance(max): | 20m Ohm Max | Insulation Resistance(min): | 1000M Ohm |
| Processing Temperature: | 260±5℃ For 10 Seconds | Operating Temperature: | -40~105℃ |
| High Light: | female pin header connector,right angle female header |
||

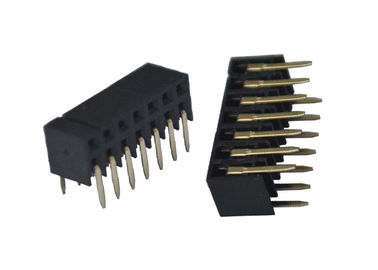

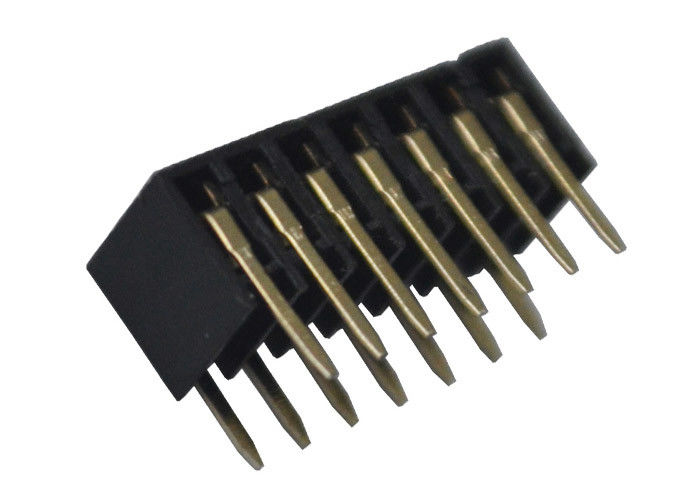

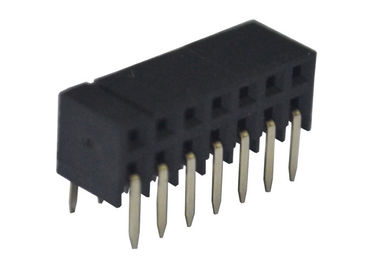

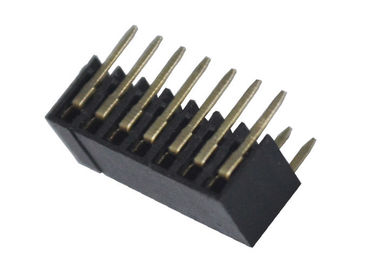

Dual Row Right Angle Female Connector 2.0mm Pitch Environmental Protection
| Product name: 2.0mm female pin connector | ||
| 1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance. | ||
| 2. product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0. | ||
| 3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection. |
Specifications
1. Pitch:2.0mm(0.1'')
2. Connector Name: PCB Connector/Female Pin Header
3. Insulation Material:PA9T UL 94-V0
4. Contact Material: Copper Alloy
5: Mounting Type: Through Hole
6: Number of Row: Dual Row
7: Contact Finish: Gold Over Nickel
8: Termination: Solder
9: Color:Black
10: Current Rating:2.0A
11: Withstand Voltage:500V AC/DC
12: Contact Resistance:20mΩ Max
13: Pin Length: Customization
14: Pin Available:2Pins to 80Pins
15. Number of Row:3Rows
16. Fastening Type:Push-Pull
17. Style:Board to Board
18. Contact Type:Female Socket
Packaging & Shipping
Packaging:
1) Packed in polybag/tray ,and cartons (bulk package )
2) Private packing and label service are available as per your requirement
Shipping
1. The parts from us are sure to have quality warranty, and they are double tested before shipping.
2. The items can be sent within 7-10 working days after we received the payments.
3. As for mass production, we will confirm the delivery in advance.We will send you’re the products by UPS/DHL/TNT/ FedEx.
Our Advantage
1. We offer factory price and MOQ is 1000pcs
2. OEM order is warmly welcome, we have 10 years OEM professional experience.
3. Good quality: Our QC staffs inspect product one by one and the defect rate is under 3%, we can assure the best quality.
4. Fast delivery: 3-7 workdays.
5. Warranty:12 months after-sale service.
6. We promise to give you feedback within 24 hours and find solution in the next 48 hours.
Warranty
We provide comprehensive after-sales service, including quality service, guidance services, We focus on customer needs in every detail. Please contact us if you need our detail warranty term.
