| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.0*6.35-1*nPBW 2PBW |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.0mm | Current Rating: | 1.5A |
|---|---|---|---|
| Contact Resistance(max): | 20M Ohm | Insulation Resistance(min): | 1000M Ohm |
| Processing Temperature: | 260±5℃ For 10 Seconds | Operating Temperature: | -40~105℃ |
| Highlight: | female pin header connector,right angle female header |
||

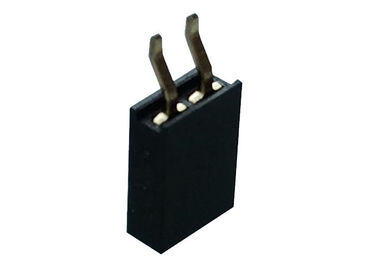

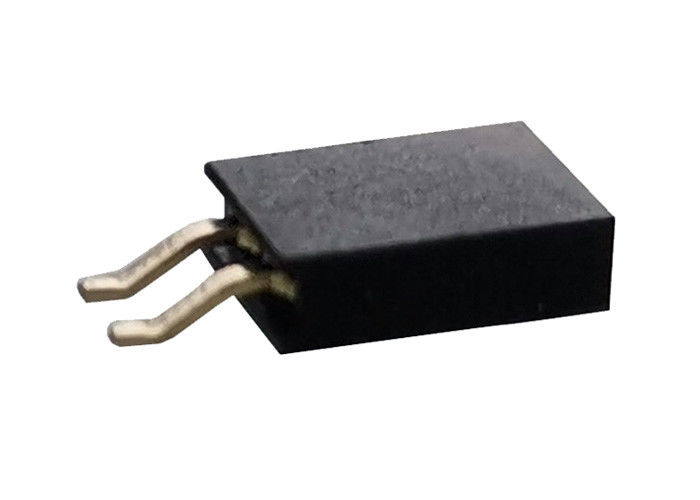

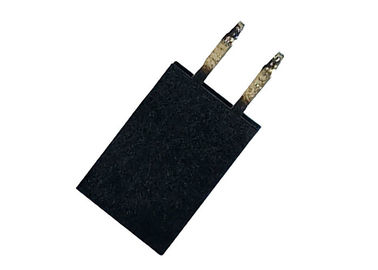

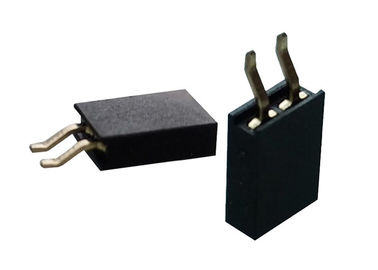

Black Single Row Female Header SMT Type Horizontal 2.0 Mm Pitch Connector
| Product name: 2.0mm female pin connector | ||
| 1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance. | ||
| 2. product function :Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission. | ||
| 3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection. |
Specifications
1. Pitch:2.0mm(0.1'')
2. Connector Name: PCB Connector/Female Pin Header
3. Insulation Material:PA9T UL 94-V0
4. Contact Material: Copper Alloy
5: Mounting Type: Through Hole
6: Number of Row: Dual Row
7: Contact Finish: Gold Over Nickel
8: Termination: Solder
9: Color:Black
10: Current Rating:1.5A
11: Withstand Voltage:500V AC/DC
12: Contact Resistance:20mΩ Max
13: Pin Length: Customization
14: Pin Available:2Pins to 80Pins
15. Number of Row:3Rows
16. Fastening Type:Push-Pull
17. Style:Board to Board
18. Contact Type:Female Socket
Packaging & Shipping
Packaging:
1) Packed in polybag/tray ,and cartons (bulk package )
2) Private packing and label service are available as per your requirement
Shipping
1.The parts from us are sure to have quality warranty, and they are double tested before shipping.
2.The items can be sent within 3-7 working days after we received the payments.
3.As for mass production, we will confirm the delivery in advance.We will send you’re the products by UPS/DHL/TNT/ FedEx.
FAQ
Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
Q: How can we get a quote?
A: Please offer the specification of the product, such as part No. , quantity, drawing, etc.
Q: Who do I contact if I have a technical questions?
A: We have an experienced team of technical sales representatives in house. They are ready to answer any questions you may have and assist you in your project.
Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.
