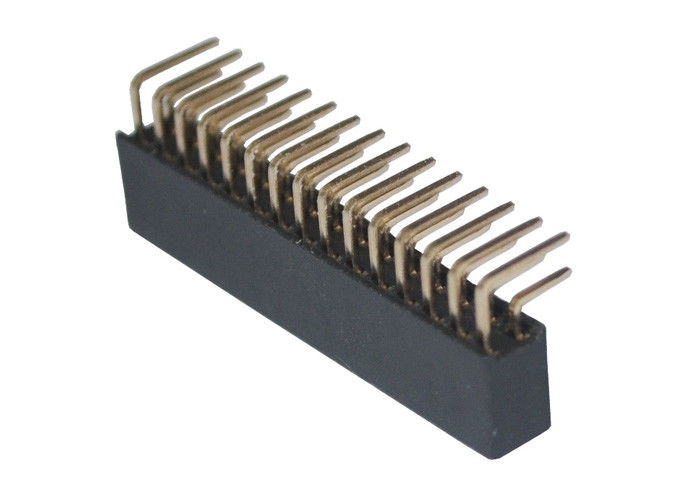

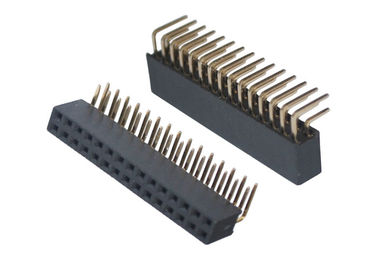

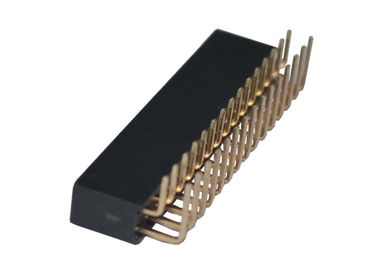

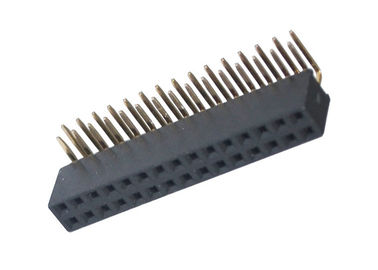

Right Angle Female Header Connector 30 Pin Fire Resistance For Electronics

Right Angle Female Header Connector 30 Pin Fire Resistance For Electronics

Product Name: female connector

1.features: the use of a wide range of environmental protection fireproof antioxidant strong conductivity

2.material: PA9T/PBT/ brass or phosphor bronze; dielectric materials: plastic UL 94V-0

3.scope of application: general are widely used in electronics, electrical appliances, instrument connection device mainly plays the role of a current or signal transmission. Usually with pin supporting the use, composition of board to board connection. Or with electronic wiring harness terminal supporting the use of, constitute the board of line connection.

Category

1. According to the spacing: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm.

2. According to whether it has convex points, the convex points are divided into half convex and full convex.

3. According to the number of rows: single row, double row, three row, four row, etc. at present, there are only four rows at most.

4. According to the installation mode, 180 degrees are represented by s, 90 degrees by W, and SMT by T.

5. According to whether it needs to be increased or not, whether it needs to be divided with positioning columns, there are two kinds of positioning columns, one is the internal positioning column and the other is the ear positioning column.

6. According to the terminal division: Y-type terminal (generally used for plastic height), U-type terminal (generally used for plastic height), four side ring bonding terminal.

Q: How can we get a quote?

A: Please offer the specification of the product, such as part No. , quantity, drawing, etc.

Q: Who do I contact if I have a technical questions?
A: We have an experienced team of technical sales representatives in house. They are ready to answer any questions you may have and assist you in your project.

Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.

Q. If happend with the defective products when receiving the goods, how to deal with?

1. Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all the responsibility.

2. First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.

3. Second: discuss the solutions.

4. Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.

Q. which payment can be accepted:

A: 1. The payment terms can be flexiable depend on the quantity and products.

2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.

Q: Is it OK to print my logo on the packing?

A: Of course, customized packing accepted!! But it may bring some cost, it depends on the qty and the packing.
