| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.0*6.35-4*nP 80P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.0mm | Current Rating: | 2A |
|---|---|---|---|
| Contact Resistance(max): | 20M Ohm | Insulation Resistance(min): | 1000M Ohm |
| Processing Temperature: | 260±5℃ For 10 Seconds | Operating Temperature: | -40~105℃ |
| Highlight: | female pin header connector,right angle female header |
||

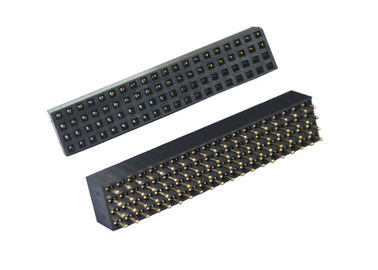

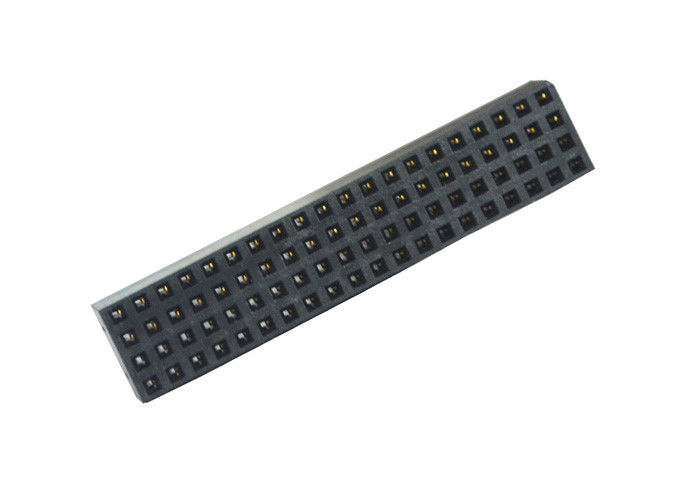

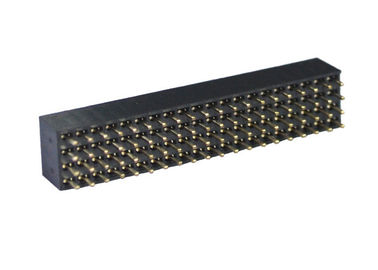

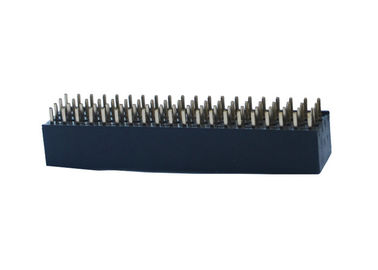

2.0mm Female Straight Pin Header Connector Four Row 180 Degree Copper Alloy
| Product name: 2.0mm female pin connector | ||
| 1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance. | ||
| 2. product function :Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission. | ||
| 3. scope of application: It is used together with the pin header to form the board to board connection; or it is used together with the electron beam end to form the board to line connection; it can also be used independently for the board to board connection. |
Specifications
1. Pitch:2.0mm(0.1'')
2. Connector Name: PCB Connector/Female Pin Header
3. Insulation Material:PA9T UL 94-V0
4. Contact Material: Copper Alloy
5: Mounting Type: Through Hole
6: Number of Row: Four Row
7: Contact Finish: Gold Over Nickel
8: Termination: Solder
9: Color:White
10: Current Rating:2A
11: Withstand Voltage:500V AC/DC
12: Contact Resistance:20mΩ Max
13: Pin Length: Customization
14: Pin Available:2Pins to 80Pins
15. Number of Row:3Rows
16. Fastening Type:Push-Pull
17. Style:Board to Board
18. Contact Type:Female Socket
19. Platic Height: 6.35mm
FAQ
Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
Q: Who do I contact if I have a technical questions?
A: We have an experienced team of technical sales representatives in house. They are ready to answer any questions you may have and assist you in your project.
Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
Payment
Our company accept T/T, Western union, Paypal, Alipay for payment, Please inform us if you have a prefer payment way.
