Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.0*2.5-2*nT 24T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.0mm | Current Rating: | 2A |
|---|---|---|---|
| Contact Resistance(max): | 20M Ohm | Insulation Resistance(min): | 1000M Ohm |
| Processing Temperature: | 260±5℃ For 10 Seconds | Operating Temperature: | -40~105℃ |
| High Light: | female pin header connector,right angle female header |
||

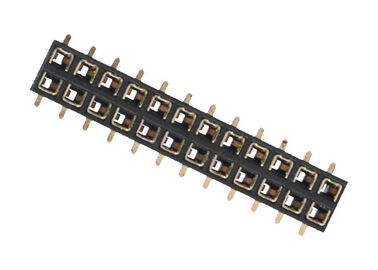

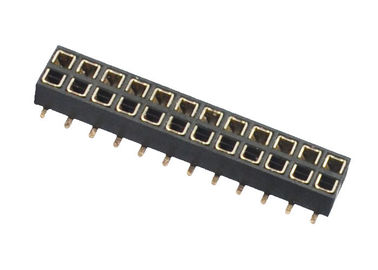

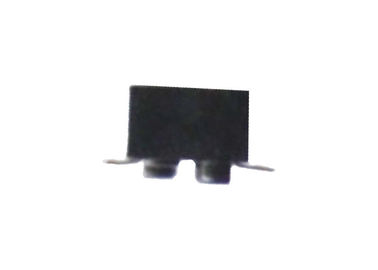

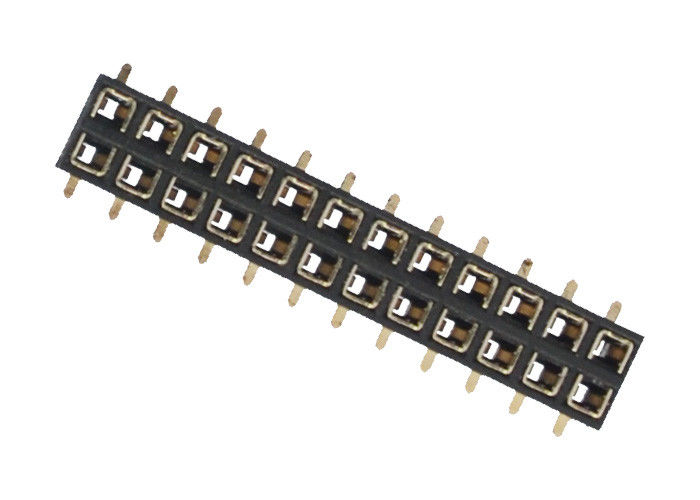

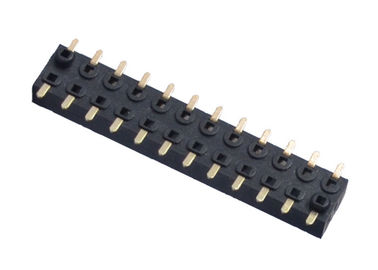

SMT Female Header Connector 2.0 Mm Pitch Dual Row For Medical Equipment
Specifications:
| Products Name | Female Header/PCB Connector |
| Pitch | 2.00mm(0.1'') |
| Current Rating | 2.0 AMP |
| Contact Resistance | 20 mΩ Max |
| Withstand Voltage | 500 V AC/DC |
| Insulation Resistance | 1000 MΩ Min |
| Operation Temperature | -40℃ to 105℃ |
| Contact Material | Coppy Alloy |
| Contact Plating | Au or Sn Over Ni |
| Insulator Material | PA6T+30 GF(UL94-V0) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Number of Row | Dual |
| Plastic Height | 7.2mm |
| Contact Finish | Gold Flash |
| Pins available | 4 Pins to 40 Pins |
| Color | Black |
| Packaging | Tube |
What is the Female Header Connector?
It is used together with the pin header to form the board to board connection; or it is used together with the electron beam end to form the board to line connection; it can also be used independently for the board to board connection.
Product Application
It widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.
Product features
The use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
How to Packing:
We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:
1. Tray Packing, suitable for manual assembly.
2. Tube Packing, suitable for manual assembly.
3. Reel Packing with tape, suitable for automatic machine producing
4. Reel Packing with Cap, suitable for automatic machine producing
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
Payment
Our company accept T/T, Western union, Paypal, Alipay for payment, Please inform us if you have a prefer payment way.
Why choose RealRun?
1. Our business is not just about components supply, it’s about delivering promises.
2. Our aim is make sourcing connector easy for you
3. We'll reply your inquiry within 24hours,Online Inquiry is Welcome.
4. We provide OEM,ODM services
5. 20pcs free samples, For repeat order customer, We'll provide more than 20pcs samples for prototype project if necessary.
6. Your one-stop source for components solutions.
