Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.54*3.55-2*nT 8T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.54mm | Color: | Black/White |
|---|---|---|---|
| Application: | PCB Board | Insulator Material: | PA6T//PA9T/LCP |
| Processing Temperature: | 260±5℃ For 10 Seconds | Plastic Height: | 3.55mm |
| High Light: | female pin header connector,smd female header |
||

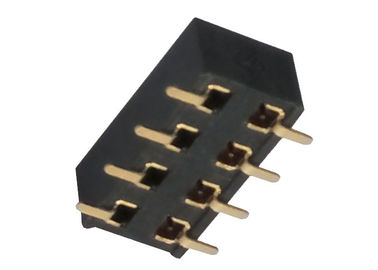

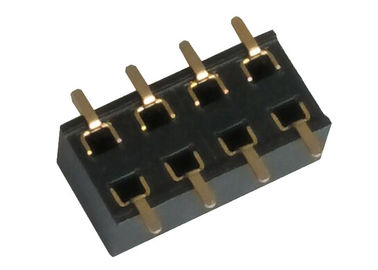

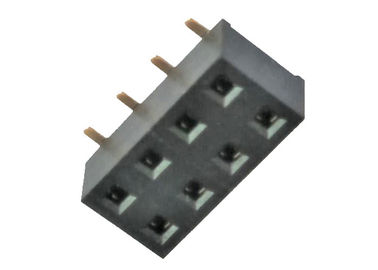

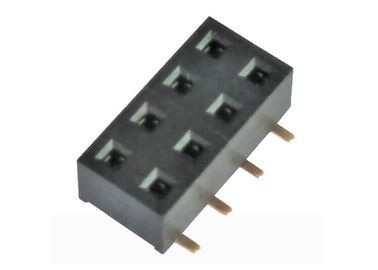

90 Degree Female Header 2.54 Mm Double Row SMT Surface Mount Pin Header
| Product Name | female header connector |
| Pitch | 0.8mm,1.0mm,1.27mm,2.0mm,2.54mm,3.96mm,5.08mm |
| Detail | DIP,SMD,90 degree,180 degree |
| Housing | PA6T/PA9T/LCP+30%G.F UL94V-0 |
| Insulator Height for Choice | 3.50mm ,3.60mm ,4.50mm ,5.00mm ,5.70mm ,5.90mm ,6.00mm ,6.80mm ,6.90mm ,7.10mm ,7.20mm ,7.50mm ,8.40mm ,8.50mm ,8.60mm ,11.0mm |
| Pin | 02~80P |
| Contact Material | Phosphor Brass,Brass |
| Insulator Material | PBT,PA6T,PA9T,LCP,PA66,PA46,PPS,PA115(Halogen Free) |
| Rating Current | 2.00AMP |
| Contact Resistance | 30mΩ Max |
| Withstanding Voltage | AC 1000V/Minute |
| Insulating Resistance | 1000MΩ Min |
| Temperture Range | -40°C to +105°C |
| Plating | Gold(Au) or Tin(Sn) plated over Nickel(Ni) |
| Packaging | PE Bag,Tube,Tape&Reel,Tube+CAP,Tray,Plastic Box |
Description
1. Female header connector is a kind of connector.
2. Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission.
3. It is used together with the pin header to form the board to board connection; or it is used together with the electron beam end to form the board to line connection; it can also be used independently for the board to board connection.
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
Payment
Our company accept T/T, Western union, Paypal, Alipay for payment, Please inform us if you have a prefer payment way.
Our advantages
1. RealRun has more than 10 years experiences in the electronic connectors area.
2. The goods with good quality and service are sold to more than 70 countries.
3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4. One of the biggest electronic connectors supplier in the China mainland.
5. Professional R & D, production, sales as one of the industrial companies.
6. Main board to board, board to line, line to line, I / O, IC base, storage connector.
