Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.54*8.5-1*nP 2P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.54mm | Color: | Yellow |
|---|---|---|---|
| Application: | PCB Board | Insulator Material: | PA6T//PA9T/LCP |
| Processing Temperature: | 260±5℃ For 10 Seconds | Operating Temperature: | -40~105℃ |
| High Light: | female pin header connector,right angle female header |
||

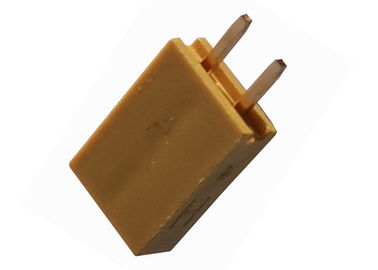

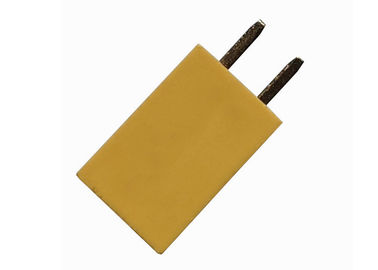

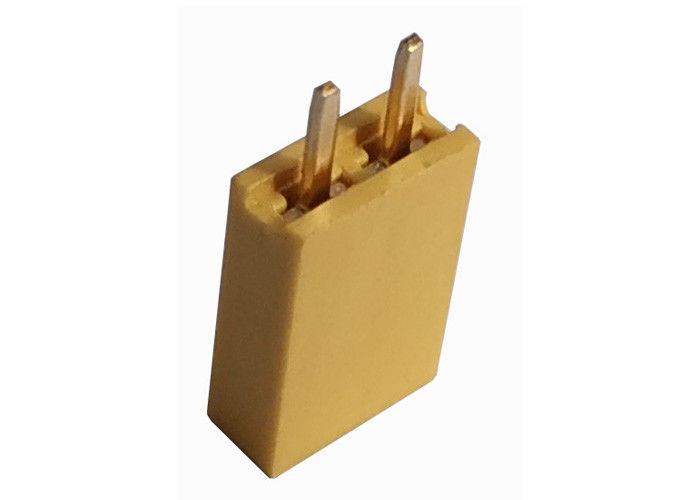

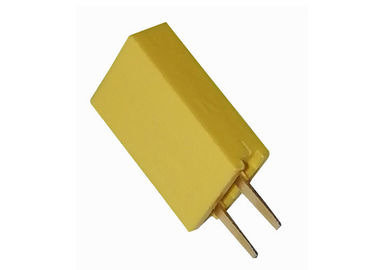

PCB Board 2.54 Mm Female Connector Single Row 16 Pin Header Straight Type
Specifications:
| Product Name: | female header conncetor |
| Description: |
Pitch: 2.54mm Row Number :single row Color: Yellow Orietional :straight |
| Housing | PA6T/PA9T/LCP+30%G.F UL94V-0 |
| Insulator Height for choice: | 1.0mm ,1.5mm ,1.7mm ,2.0mm ,2.5mm ,2.8mm |
| Number of Pin | 1~40pin,2~80Pin |
| Contact Material: | Brass |
| Contact Plating: | Gold (Au) or Tin (Sn) Plated over Nickel (Ni) |
| Insulator/Plastic Material: | PBT,PA6T ,PA9T ,LCP |
| Rating Current: | 3.00AMP |
| Contact Resistance: | 20mΩ Max |
| Insulating Resistance: | 1000 MΩ Min |
| Withstanding Voltage: | AC 500V/Minute |
| Temperture: | -40°C to +105°C |
| Sample Lead time | Free, 2~5days |
| Production lead time | 3-7days |
| OEM/ODM | Accepted |
| Item name: 2.54mm female header connector | ||
| 1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance. | ||
| 2. product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0. | ||
| 3. scope of application: Generally, female headers with suited pin headers are used to finish created modules in electronic industry.As below you can find some of scope of application. |
Our Services
1. Provide free samples
2. Accept ODM/OEM with strong R&D team
3. Fast response to your inquiry and feedback
4. Good quality with strict quality control
5. Professional after-sale team
Packaging Details
1. Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
2. Box/Tape & Reel/ Tray/ Tube/ PE Bag
3. special Packing depend on customer
Shipping
1. If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
2. If goods is large: Sea or Air shipping method.
3. Please nitfy me you have any special needs.
Payment
Our company accept T/T, Western union, Paypal, Alipay for payment, Please inform us if you have a prefer payment way.
