Double Row Female Header Connector

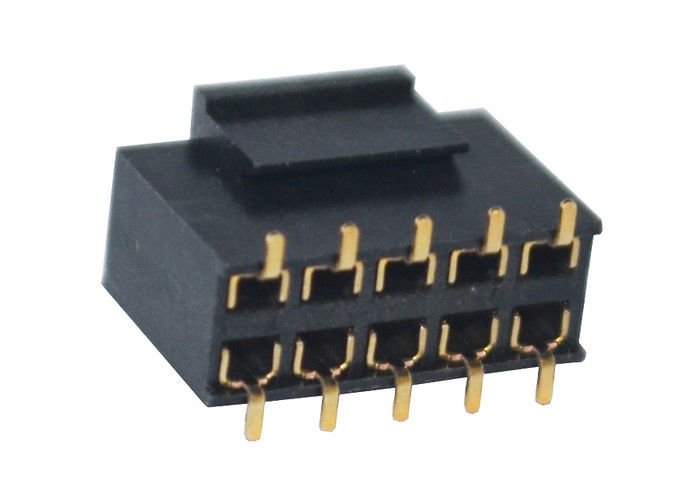

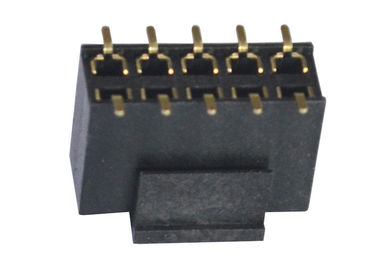

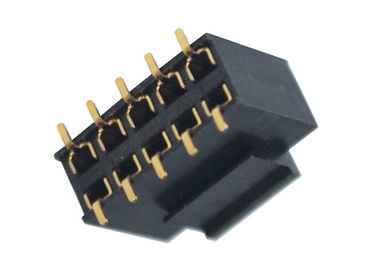

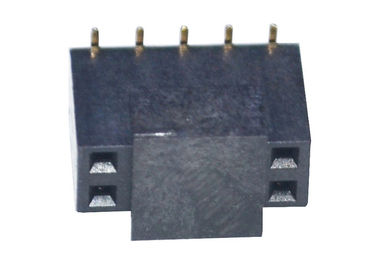

2.54mm 10 Pin Double Row Female Header Connector SMT Type With CAP

Specifications:

Product Name: female header connector

1. features: the use of a wide range of environmental protection fireproof antioxidant strong conductivity

2. material: PA9T/PBT/ brass or phosphor bronze; dielectric materials: plastic UL 94V-0

3. scope of application: general are widely used in electronics, electrical appliances, instrument connection device mainly plays the role of a current or signal transmission. Usually with pin supporting the use, composition of board to board connection. Or with electronic wiring harness terminal supporting the use of, constitute the board of line connection.

Category

1. According to the spacing: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm.

2. According to whether it has convex points, the convex points are divided into half convex and full convex.

3. According to the number of rows: single row, double row, three row, four row, etc. at present, there are only four rows at most.

4. According to the installation mode, 180 degrees are represented by s, 90 degrees by W, and SMT by T.

5. According to whether it needs to be increased or not, whether it needs to be divided with positioning columns, there are two kinds of positioning columns, one is the internal positioning column and the other is the ear positioning column.

6. According to the terminal division: Y-type terminal (generally used for plastic height), U-type terminal (generally used for plastic height), four side ring bonding terminal.

FAQ

Q1: Are you Manufacturer or trade company?
A: We are a professional manufacturer integrating r&d, production and sales

Q2: Is OEM & ODM available?
A: OEM ODM are welcome.

Q3: Do you offer customized product ?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.

Q4: How can I get quotation?
A: It is helpful for us to recommend the right item if we know your detail description or specifications. Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.

Q5: Do you provide samples ? is it free or extra?

A: Free samples. You need to pay for courier cost. Please contact us for details.

Q6: What’s the lead time of sample?
A: Usually within 2-7 days after details confirmed.
