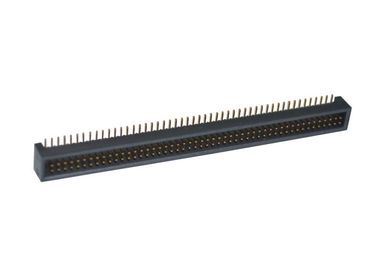

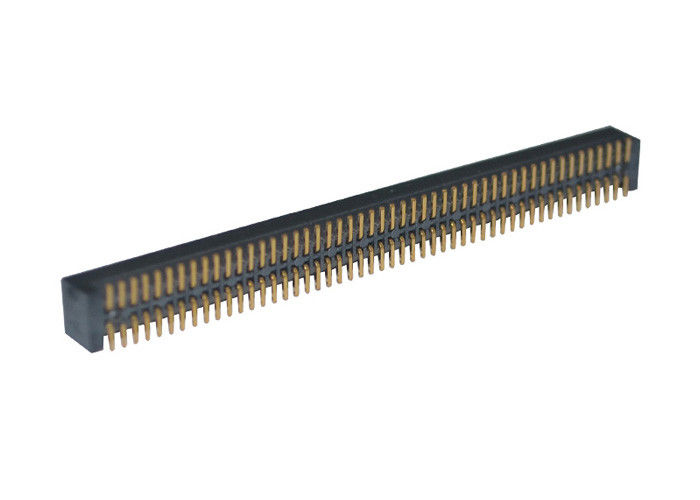

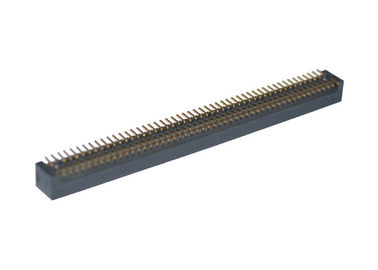

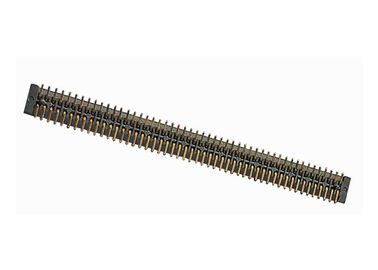

100 Pin Box Header Connector Through Hole Board To Cable Connectors SMT Type

100 Pin Box Header Connector Through Hole Board To Cable Connectors SMT Type


Product name: Ejector Header Connector

1. Product features: high temperature resistant to high voltage electrical conductivity.

2. Product material: PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating.

3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal.



Category
1. According to the spacing: 1.0mm, 1.27mm, 2.0mm, 2.54mm.
2. No. of pins: 2~80 pins.
3. Installation mode: straight, right angle, SMT.
4. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).
5. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;
6. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);
7. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column.

FAQ
Q. If happend with the defective products when receiving the goods, how to deal with?
1. Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all the responsibility.
2. First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.
3. Second: discuss the solutions.
4. Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.

Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.

Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.

Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.
