| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | BH2.0*5.6-nP 12P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Insulator Flammability: | UL 94V-0 | Mounting Type: | Through Hole |
|---|---|---|---|
| Application: | PCB Board | Insulator Material: | PBT/PA6T |
| Contact Material: | Brass | Contact Plating: | Gold/Tin Over Nickel |
| Highlight: | printed circuit board connector,board to wire connector |
||

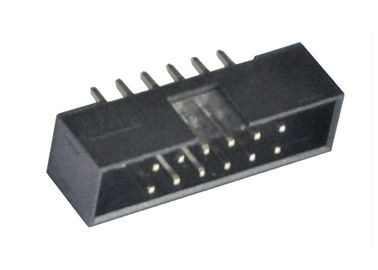

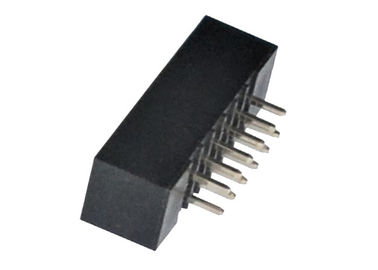

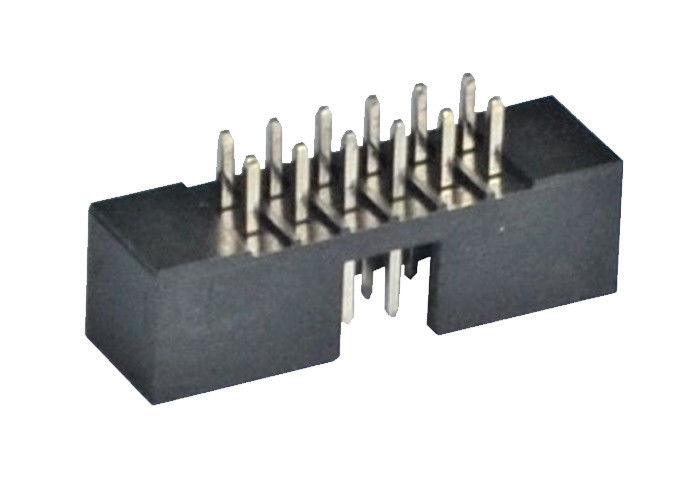

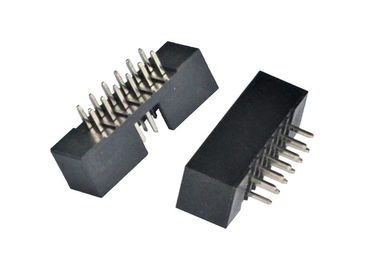

Straight IDC PCB Box Header Connector 180 Degree 2.0mm Pitch 2x12 Pin Socket
| Products Name | Box Header Connector/Wire to Board Connector |
| Pitch | 2.0mm |
| Color | Black/Blue |
| Insulator Material | PBT+30%GF UL94V-0 |
| Contact Material | Brass |
| Pin Available | 2Pins to 100Pins |
| Current Rating | 3.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000MΩ |
| Operation Temperature | -40℃ to +105℃ |
| Contact Plating | Au Over Ni |
| Mounting Type | Surface Mount/SMT |
| Termination | Solder |
| Orientation | Horizontal |
| Soldering Temperature | 260℃ for 10 Seconds |
Description
1. Box header connector is usually composed of square plastic socket and several square pins arranged in order. The difference between the simple ox connector and ox horn connector is that the simple ox horn has removed the clasps on both sides.
2. Box header connector is welded on the PCB, it connects the IDC cable of corresponding specifications, and then forms the circuit connection mode that the designer needs to achieve with other circuits.
3. It is usually used to transmit control signals and weak current.
Product Application
Box header widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team.
Shipping:
1. We can shipping all over the world by DHL, UPS, FEdex, TNT and EMS. The packaging is very safe and strong. Please nitfy me you have any special needs
2. It will take around 3-7 days to reach your hands.
Product Type & condition:
Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated. So please consult the stock situation when you inquire.
Warranty & Guarantee:
All components we sell the quality with 30 days Return policy from the day of shipment.
Our Service
We have a excellent engineer team, all sales has at least three years foreign trade experience, So we can provide professional product advise and best service for you.
a, Your enquiry will be replied within 12 hours.
b, OEM & ODM can be accepted.
c, Your business relationship with us will be confidential to any third party.
d, Good after-sales service. If you have any questions on products, please feel free to contact us anytime.
