Name: Blue DIP 12 Pin Header Connector Straight Box 180 Degree Type 2.54mm Pitch
Brand: Shenzhen Realrun Electronic Co., Ltd.
SKU: BH2.54*9.0-nP 12P
Price: Negotiable USD
Availability: InStock

Home Products Box Header Connector

Blue DIP 12 Pin Header Connector Straight Box 180 Degree Type 2.54mm Pitch

Product Details:

Place of Origin:	China
Brand Name:	RealRun
Certification:	ISO9001, SGS, Rohs, Reach
Model Number:	BH2.54*9.0-nP 12P

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Tray Packing
Delivery Time:	3~7workdays
Payment Terms:	L/C, T/T, Western Union,PayPal
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Pitch:	2.54mm	Color:	Blue
Current Rating:	3A	Contact Resistance(max):	30m Ohm
Insulation Resistance(min):	1000M Ohm	Contact Plating:	Gold/Tin Over Nickel
Highlight:	circuit board wire connectors , printed circuit board connector

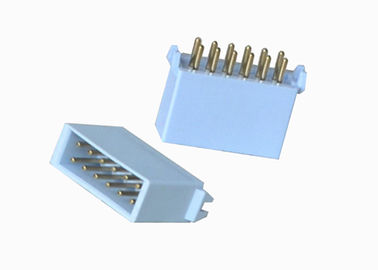

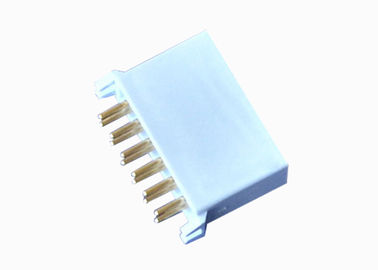

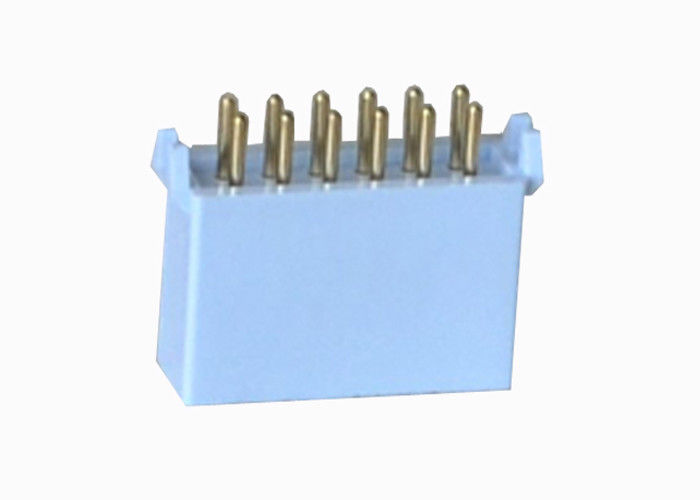

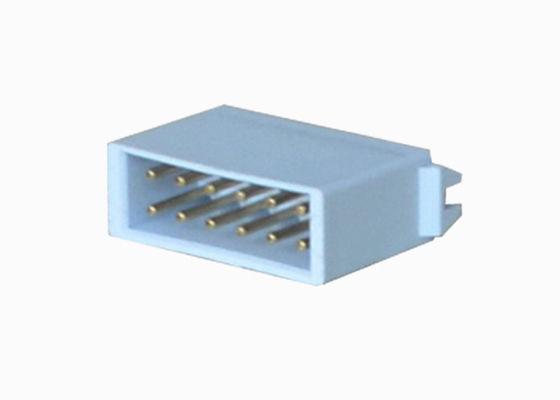

Blue DIP 12 Pin Header Connector Straight Box 180 Degree Type 2.54mm Pitch

Current Rating	3.0AMP
Contact Resistance	30mΩ Max
Withstand Voltage	500V AC/DC
Insulation Resistance	1000mΩ Min
Operation Temperature	-40℃ to +105℃
Contact Material	Brass
Contact Plating	Au or Sn over Ni
Insulator Material	LCP +30％GF( UL94V-0 )
Plastic Color	Blue

Product name: Box header connector
1. Product features: high temperature resistant to high voltage electrical conductivity.
2. Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission.
3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal.

Blue DIP 12 Pin Header Connector Straight Box 180 Degree Type 2.54mm Pitch 0

Packaging Details:

Tube package, Reel package,Box package, PE Bag package

Shipment ways:

1. Sample order: DHL,FEDEX,UPS,TNT,EMS,etc.

2. Bulk order: Shipping by sea or air.

Our Advantages:

Have a strong research and development ability for a new product
Equipment and manufacturing ability for would
Competitive price , and in time delivery well-selling in both domestic and foreign markets.
Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .
Reasonable prices, very competitive and reliable.
Excellent sales team and tech team ready to serve you.
Fast delivery.
OEM services with agreed quantity by both parties.
Specializes in the development , design , production and sale of communication network connectors .
We hope to make long term business cooperation with all our customers.
