Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | BH2.0*6.4-nW 16W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.0mm | Operating Temperature: | -40~105℃ |
|---|---|---|---|
| Application: | PCB Board | Contact Resistance(max): | 30m Ohm |
| Insulation Resistance(min): | 1000M Ohm | Contact Plating: | Gold/Tin Over Nickel |
| Highlight: | printed circuit board connector,board to wire connector |
||

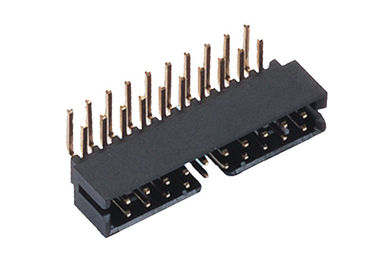

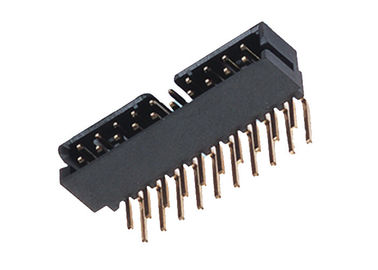

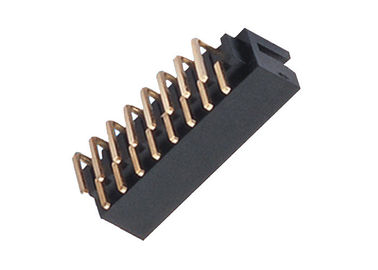

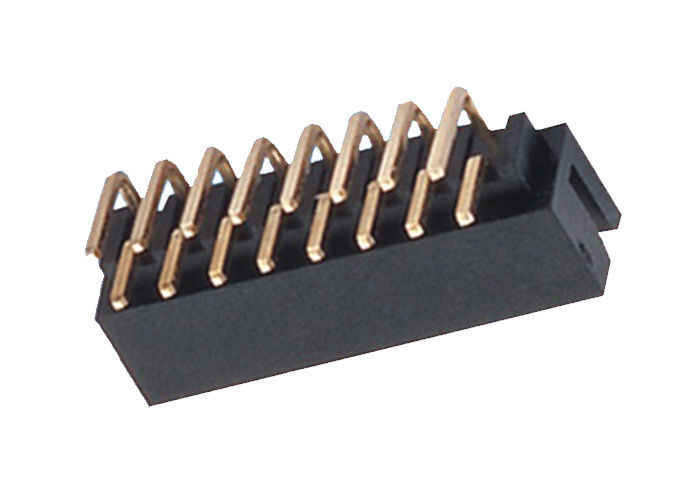

90 Degree 2.0mm Pitch 16 Pin Box Header Connector Right Angle Type
| Products Name | Box Header Connector/Wire to Board Connector |
| Pitch | 2.0mm |
| Color |
Black |
| Insulator Material | PBT+30%GF UL94V-0 |
| Contact Material | Brass |
| Pin Available | 2Pins to 100Pins |
| Current Rating | 3.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000MΩ |
| Operation Temperature | -40℃ to +105℃ |
| Contact Plating | Au Over Ni |
| Mounting Type | Surface Mount/SMT |
| Termination | Solder |
| Orientation | Right Angle |
| Soldering Temperature | 260℃ for 10 Seconds |
Description
1. Box header connector is usually composed of square plastic socket and several square pins arranged in order. The difference between the simple ox connector and ox horn connector is that the simple ox horn has removed the clasps on both sides.
2. Box header connector is welded on the PCB, it connects the IDC cable of corresponding specifications, and then forms the circuit connection mode that the designer needs to achieve with other circuits.
3. It is usually used to transmit control signals and weak current.
Shipping:
1. We can shipping all over the world by DHL, UPS, FEdex, TNT and EMS. The packaging is very safe and strong. Please nitfy me you have any special needs
2. It will take around 3-7 days to reach your hands.
Product Type & condition:
Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated. So please consult the stock situation when you inquire.
Warranty & Guarantee:
All components we sell the quality with 30 days Return policy from the day of shipment.
RealRun always regards quality as corporate life, adheres to the business philosophy of the quality to the market, the management to benefit and the leading innovation and brand strategy.
Sincerely welcome customers home and abroad to discuss cooperations! Sincerely thanks to our customers for more than 10 years of cooperation and guidance, we will be strict in management of the production of science and technology, good quality, as always, to serve you.
