Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | BTB0.5-2×nT 50T Male |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Application: | PCB Board | Current Rating: | 3A |
|---|---|---|---|
| Insulator Material: | PA6T/PA9T/LCP | Withstanding Voltage: | 500V AC/minute |
| Insulation Resistance: | 1000MΩ Min | Contact Resistance: | 20mΩ Max |
| High Light: | 0.5A DIP BTB Connector,PA9T LCP Insulator BTB Connector,PA6T Board To Board Pcb Connector |
||

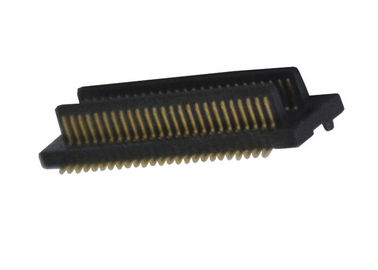

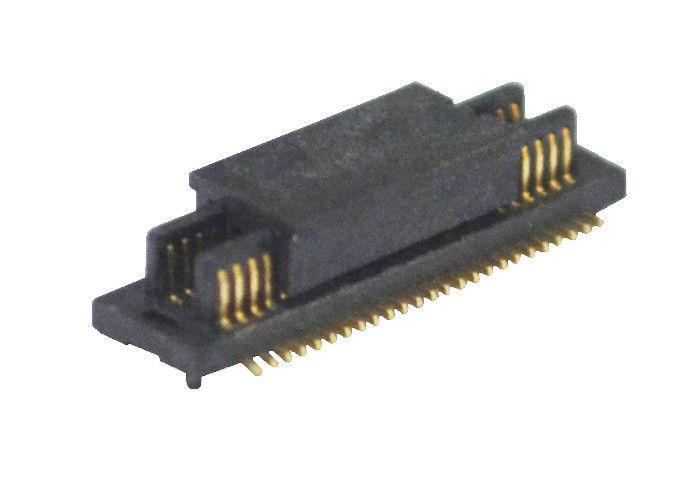

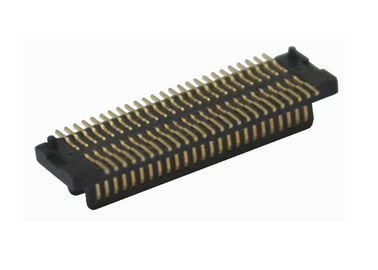

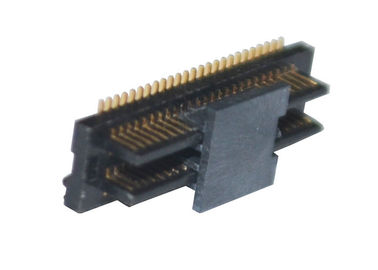

PCB Board BTB Connector 50 Pin Gold Plate PA6T PA9T LCP Insulator Material
Description
1. Board to board Connector can also be called plugs, widely used in various electrical lines, connecting or disconnecting.
2. The function of the circuit. Improving the reliability of connectors is the responsibility of manufacturers first. However, due to the wide variety of connectors and wide range of applications, proper selection is necessary. Selecting connectors is also an important aspect of improving connector reliability.
Product Application
1. VGA card connection
2. MDC connection
3. ODD connection
4. Daughter board connection
5. FPC connection
|
Name |
Board To Board Connector |
|
Pitch |
0.5mm |
|
Type |
DIP type |
|
Insulator Color |
Black |
|
Insulator Flammability |
UL 94V-0 |
|
Current Rating |
0.5A |
|
Contact Resistance(max) |
50m ohm Max |
|
Operating Voltage |
60V AC/DC |
|
Insulation Resistance(min) |
1000M ohm Min at DC 500V |
|
Contact materials |
Gold/Tin plating |
|
Contact Plated |
Tin or gold over nickel |
|
Insulator material |
PA6T |
|
Processing Temperature |
-40~105℃ |
|
Packing |
Tray Packing |
|
OEM/ODM |
Accepted |
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted:
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Are you manufacture of trading company?
A: We are a manufacture in Shenzhen, China.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
