Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | BTB0.5-2×nT 50T Female |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Operating Temperature: | -40~105℃ | OEM/ODM: | Accepted |
|---|---|---|---|
| Insulator Material: | PA6T/PA9T/LCP | Insulation Resistance: | 1000MΩ Min |
| Withstanding Voltage: | 500AC | Packing: | Tray Packing |
| High Light: | board to board pcb connector,board to board power connectors |
||

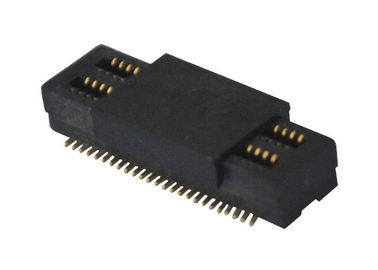

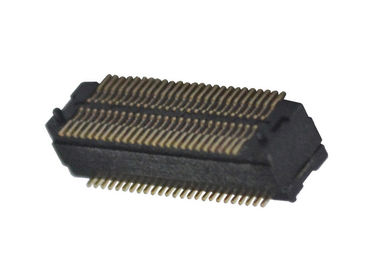

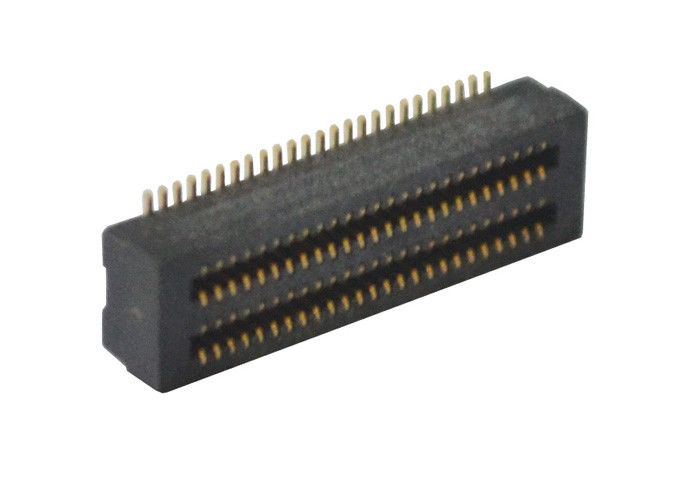

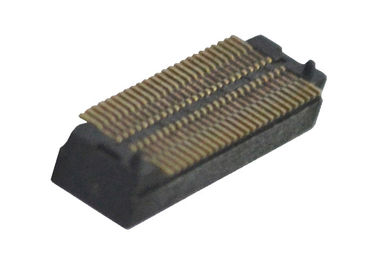

Female Type PCB Board To Board Connectors 0.5mm Pitch For Electrical Lines
What is the board to board connector
1. Hereinafter referred to as connectors can also be called plugs, widely used in various electrical lines, connecting or disconnecting.The function of the circuit. Improving the reliability of connectors is the responsibility of manufacturers first. However, due to the wide variety of connectors and wide range of applications, proper selection is necessary.Selecting connectors is also an important aspect of improving connector reliability.
2. Manufacturers of board to board connectors can only work together with both manufacturers and users.Maximize the function of the connector. Board to plate connector manufacturers according to frequency, with high frequency connectors and low Frequency Connector; Round Connector Machine, Rectangular Connector Machine according to the shape; PCB Connector, Cabinet Connector, Audio Equipment Connector according to the use Connectors, power connectors, special purpose connectors and so on.
|
Name |
Board To Board Connector |
|
Pitch |
0.5mm |
|
Type |
DIP type |
|
Insulator Color |
Black |
|
Insulator Flammability |
UL 94V-0 |
|
Current Rating |
0.5A |
|
Contact Resistance(max) |
50m ohm Max |
|
Operating Voltage |
60V AC/DC |
|
Insulation Resistance(min) |
1000M ohm Min at DC 500V |
|
Contact materials |
Gold/Tin plating |
|
Contact Plated |
Tin or gold over nickel |
|
Insulator material |
PA6T |
|
Processing Temperature |
-40~105℃ |
|
Packing |
Tray Packing |
|
OEM/ODM |
Accepted |
Product Application
1. VGA card connection
2. MDC connection
3. ODD connection
4. Daughter board connection
5. FPC connection
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted:
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
