Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | BTB0.5-2×nT 60T Female |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Insulator Flammability: | UL 94V-0 | Current Rating: | 3A |
|---|---|---|---|
| Withstanding Voltage: | 500V AC/minute | Operation Temperature: | -40~+105℃ |
| Type: | SMT | Pin Length: | Customization |
| High Light: | board to board pcb connector,board to board power connectors |
||

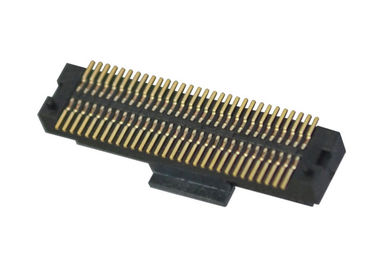

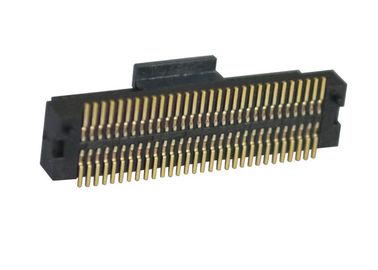

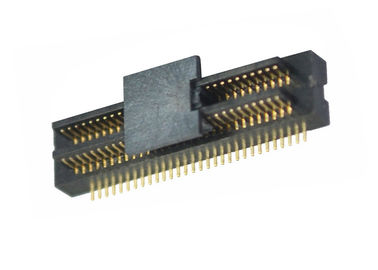

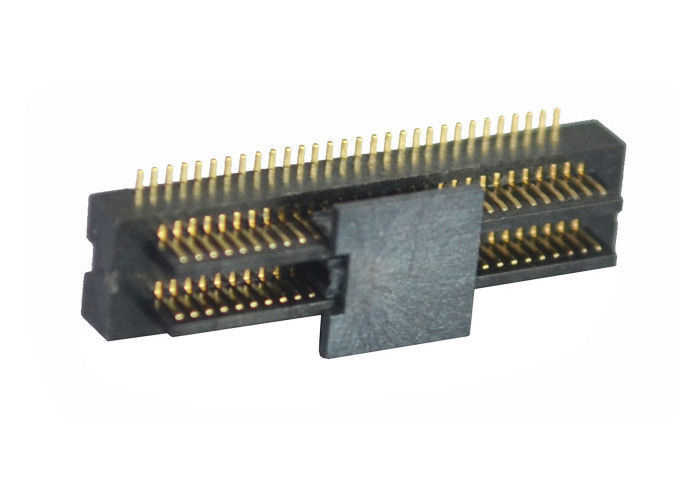

0.5mm Pitch Printed Circuit Board Connector Female Environmental Protection
What is the board to board connector
1. The most powerful transmission capacity in the current connector, the use of a wide range of environmental protection, high temperature resistance, fire resistance, oxidation resistance, electrical conductivity, precision and strong connection.
2. Power systems, communications networks, financial manufacturing, elevators, industrial automation, medical equipment, office equipment, home appliances, military manufacturing and other industries.
Product Application
The thin spacing board to board connector is an optimized interconnection solution, which is suitable for smaller and thinner electronic consumer products. These connectors can cope with the trend of miniaturization in the market. The product line has smaller pin spacing, narrower body and lower socket height, as well as various advantages.
|
Name |
Board To Board Connector |
|
Pitch |
0.5mm |
|
Type |
DIP type |
|
Insulator Color |
Black |
|
Insulator Flammability |
UL 94V-0 |
|
Current Rating |
0.5A |
|
Contact Resistance(max) |
50m ohm Max |
|
Operating Voltage |
60V AC/DC |
|
Insulation Resistance(min) |
1000M ohm Min at DC 500V |
|
Contact materials |
Gold/Tin plating |
|
Contact Plated |
Tin or gold over nickel |
|
Insulator material |
PA6T |
|
Processing Temperature |
-40~105℃ |
|
Packing |
Tray Packing |
|
OEM/ODM |
Accepted |
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
Why choose RealRun?
1. RealRun has more than 10 years experiences in the electronic connectors area.
2. The goods with good quality and service are sold to more than 70 countries.
3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4. One of the biggest electronic connectors supplier in the China mainland.
5. Main board to board, board to line, line to line, I / O, IC base, storage connector;
6. The products are widely used in mobile devices, LED displays, computer peripherals, automobile peripherals, power peripherals, medical equipment, household appliances and monitoring equipment, TV and TV set-top boxes, instruments and meters, network peripherals and other equipment products.
