| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | BTB2.54-1×nP 32P Female |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Contact Plating: | Gold/Tin Over Nickel | Current Rating: | 3A |
|---|---|---|---|
| Contact Shape: | Square Hole | Insulation Resistance: | 1000MΩ Min |
| Contact Resistance: | 20mΩ Max | Processing Temperature: | 260±5℃ For 10 Seconds |
| Highlight: | board to board pcb connector,board to board power connectors |
||

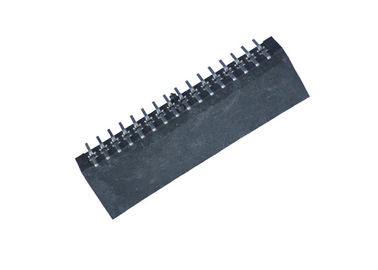

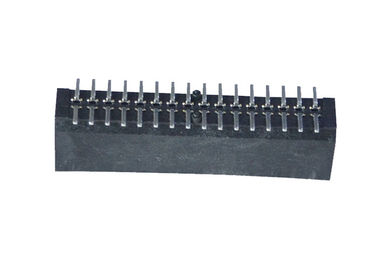

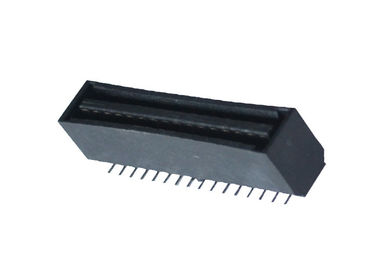

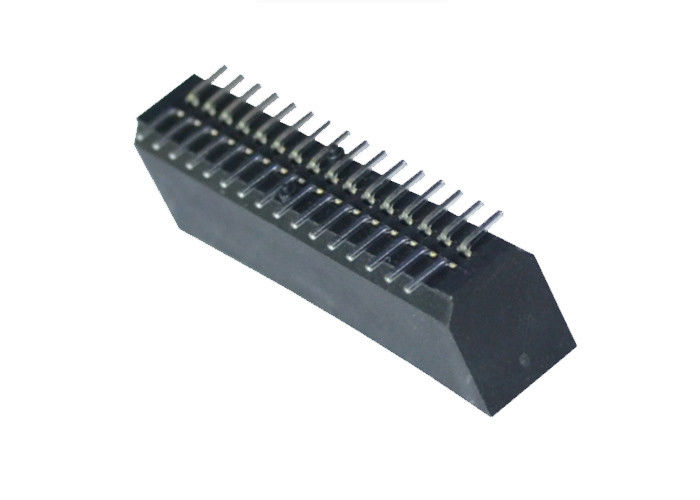

Black Female 2.54mm 32 Pin BTB Connector SMT Board To Board LCP Material
| 1.Current Rating | 0.5AMP |
| 2.Voltage Rating | 50V AC/DC |
| 3.Contact Resistance | 50milliohm Max |
| 4.Insulation Resistance | 100Megohm Min |
| 5.Operation Temperature | ﹣20℃ to +105℃ |
| 6.Housing Material | PA9T+30％GF(UL94V-0) |
| 7.CAP Material | LCP (UL94V-0) |
| 8.Contact Material | Phosphor Bronze |
| 9.Contact Plating | Au Or Sn over Ni |
What is the board to board connector
Hereinafter referred to as connectors can also be called plugs, widely used in various electrical lines, connecting or disconnecting.The function of the circuit. Improving the reliability of connectors is the responsibility of manufacturers first. However, due to the wide variety of connectors and wide range of applications, proper selection is necessary.Selecting connectors is also an important aspect of improving connector reliability.
Product Application
1. VGA card connection
2. MDC connection
3. ODD connection
4. Daughter board connection
5. FPC connection
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: What parts do you stock?
A: We stock many common connectors for quicker turnaround times.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
