| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | DIN41612-3xnP 96P Male |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Contact Materials: | Gold/Tin Plating | Insulator Material: | PA6T/PA9T/LCP |
|---|---|---|---|
| Contact Material: | Brass | Operating Temperature: | -40~105℃ |
| Current Rating: | 3A | Withstanding Voltage: | 500V AC/minute |
| High Light: | pcb pin connector,2.54 mm pitch header |
||

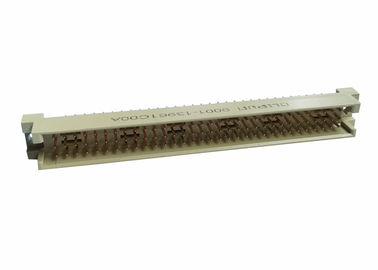

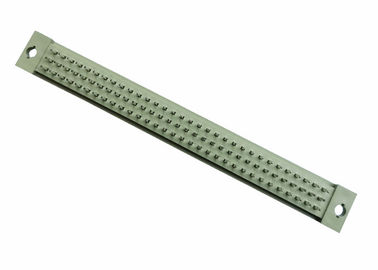

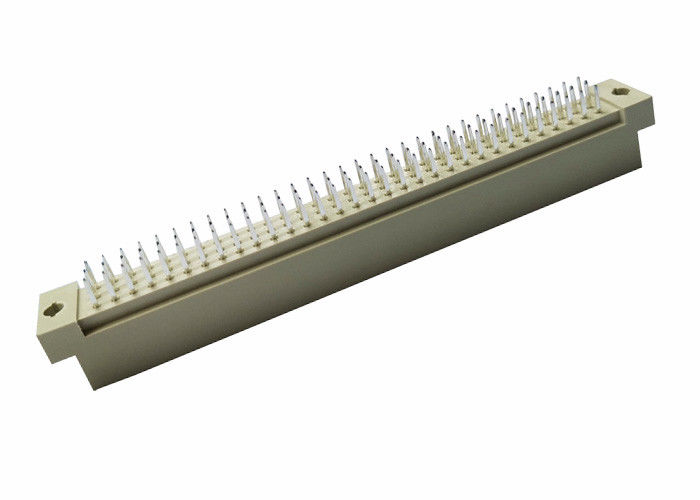

Brass 96p PCB Connector DIP 3X32 Pin Triple Row DIN 41612 Male Straight
Description
1. Din41612 has two types of male connector and female connector. Each din41612 connector has many different contact and termination finishes.
2. It is widely used in the connection of communication equipment backplane and daughterboard, industrial control equipment backplane and daughterboard, telecommunication, aviation, industrial control, industrial control security control backplane and daughterboard, with reliable precision connection and stable performance.
| Name | DIN 41612 Connector |
| Type | Surface Mount SMT type |
| Insulator Color | Black |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 30m ohm Max |
| Withstand Voltage(for 1 minute) | 500V AC/minute |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tape & Reel |
| OEM/ODM | Accepted |
Category
1. Main models: 232, 332, 348, 364, 396, 120, 128.
2. Number of rows: two rows and three rows.
3. Connection form: straight hole / curved needle, vertical connection of curved hole / straight needle, parallel connection of curved hole / curved needle.
(European socket 120P, European socket 128p, straight hole, curved needle, connected to industrial control backplane, connection between backplane and daughter board, switch equipment control board.)
4. Contact points: 20, 32, 48, 64, 96, 120, 128, 160.
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag
special Packing depend on customer
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
Why choose RealRun?
1. RealRun has more than 10 years experiences in the electronic connectors area.
2. The goods with good quality and service are sold to more than 70 countries.
3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4. One of the biggest electronic connectors supplier in the China mainland.
