| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | DIN41612-3xnW 48W Female |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.54mm | Application: | PCB Board |
|---|---|---|---|
| Contact Material: | Brass | Contact Resistance(max): | 30m Ohm |
| Current Rating: | 3A | Insulation Resistance(min): | 1000M Ohm |
| High Light: | circuit board connectors,2.54 mm pitch header |
||

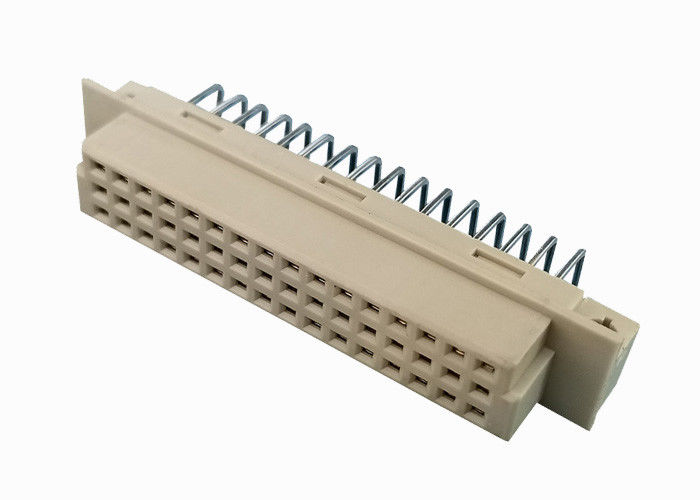

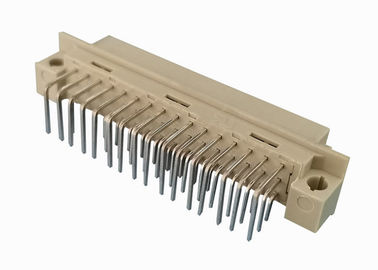

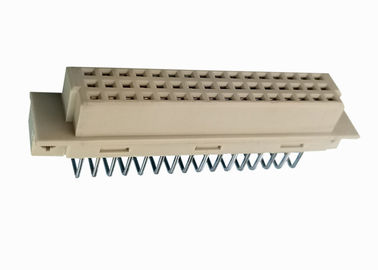

Triple Row DIN 41612 Female Header Connector 3X16 Pin 48P 500V AC/Minute
Product Name: DIN41612 connector
1. the characteristics: the product precision and reliable performance, good force strong
2. material: 1 material: rubber core PBT plus 30% glass, terminal material: copper alloy.
3. scope of application: the product is widely applied to the backplane and the daughter board communications equipment, industrial control equipment connected with the backboard and the daughter board connection, and telecommunications, aerospace and other fields.
| Name | DIN 41612 Connector |
| Type | Surface Mount SMT type |
| Insulator Color | Black |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 30m ohm Max |
| Withstand Voltage(for 1 minute) | 500V AC/minute |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tape & Reel |
| OEM/ODM | Accepted |
Category
1. Main models: 232, 332, 348, 364, 396, 120, 128.
2. Number of rows: two rows and three rows.
3. Connection form: straight hole / curved needle, vertical connection of curved hole / straight needle, parallel connection of curved hole / curved needle.
(European socket 120P, European socket 128p, straight hole, curved needle, connected to industrial control backplane, connection between backplane and daughter board, switch equipment control board.)
4. Contact points: 20, 32, 48, 64, 96, 120, 128, 160.
Why choose RealRun?
1. RealRun has more than 10 years experiences in the electronic connectors area.
2. The goods with good quality and service are sold to more than 70 countries.
3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4. One of the biggest electronic connectors supplier in the China mainland.
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag
special Packing depend on customer
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Are you manufacture of trading company?
A: We are a manufacture in Shenzhen, China.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
