Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | DIN41612-2xnW 64W Male |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Color: | Beige | OEM/ODM: | Accepted |
|---|---|---|---|
| Contact Material: | Brass | Contact Resistance(max): | 30m Ohm |
| Insulation Resistance(min): | 1000M Ohm | Withstanding Voltage: | 500V AC/minute |
| High Light: | pcb pin connector,2.54 mm pitch header |
||

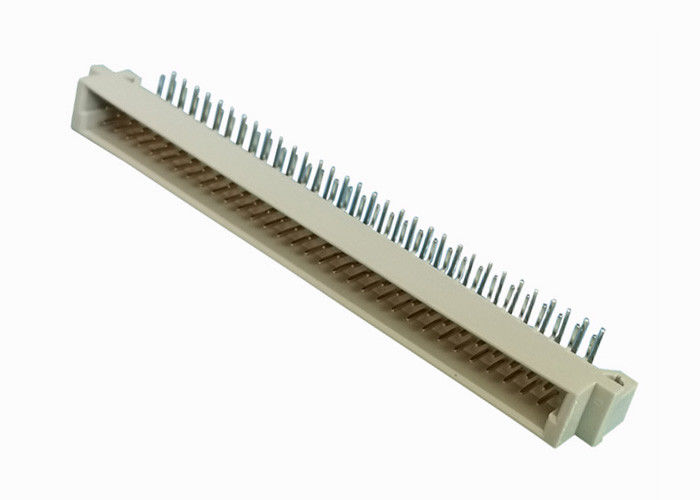

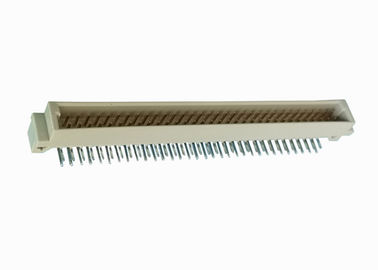

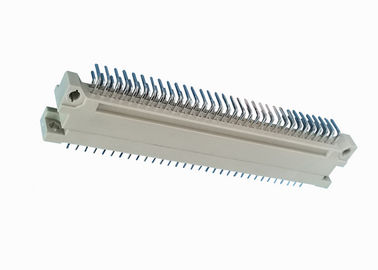

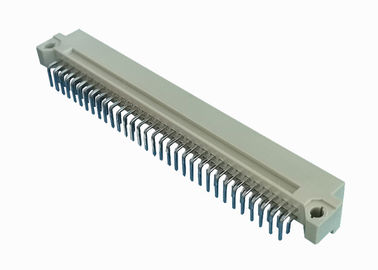

PBT Male DIN 41612 Pcb Pin Connector 2X32 Pin Right Angle Type Beige Color
| Current Rating | 3.0AMP |
| Contact Resistance | 30mΩ Max |
| Withstand Voltage | 1000V AC/DC |
| Insulation Resistance | 1000mΩ |
| Operation Temperature | ﹣55℃ to +105℃ |
| Contact Material | Phosphor Bronze |
| Contact Plating | Au And Sn over Ni |
| Fixing Material | Phosphor Bronze |
| Fixing Plating | Sn over Ni |
| Housing Material | PBT+30%GF(UL94V-0) |
Product Name: DIN41612 connector
1. the characteristics: the product precision and reliable performance, good force strong
2. material: 1 material: rubber core PBT plus 30% glass, terminal material: copper alloy.
3. scope of application: the product is widely applied to the backplane and the daughter board communications equipment, industrial control equipment connected with the backboard and the daughter board connection, and telecommunications, aerospace and other fields.
Category
1. Main models: 232, 332, 348, 364, 396, 120, 128.
2. Number of rows: two rows and three rows.
3. Connection form: straight hole / curved needle, vertical connection of curved hole / straight needle, parallel connection of curved hole / curved needle.
(European socket 120P, European socket 128p, straight hole, curved needle, connected to industrial control backplane, connection between backplane and daughter board, switch equipment control board.)
4. Contact points: 20, 32, 48, 64, 96, 120, 128, 160.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Are you manufacture of trading company?
A: We are a manufacture in Shenzhen, China.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
Why choose RealRun?
1. RealRun has more than 10 years experiences in the electronic connectors area.
2. The goods with good quality and service are sold to more than 70 countries.
3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4. One of the biggest electronic connectors supplier in the China mainland.
