| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | DIN41612-2xnP 64P Female |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Color: | Beige | Insulator Flammability: | UL 94V-0 |
|---|---|---|---|
| Contact Material: | Brass | Contact Plating: | Gold/Tin Over Nickel |
| Current Rating: | 3A | Termination: | Solder |
| High Light: | circuit board connectors,2.54 mm pitch header |
||

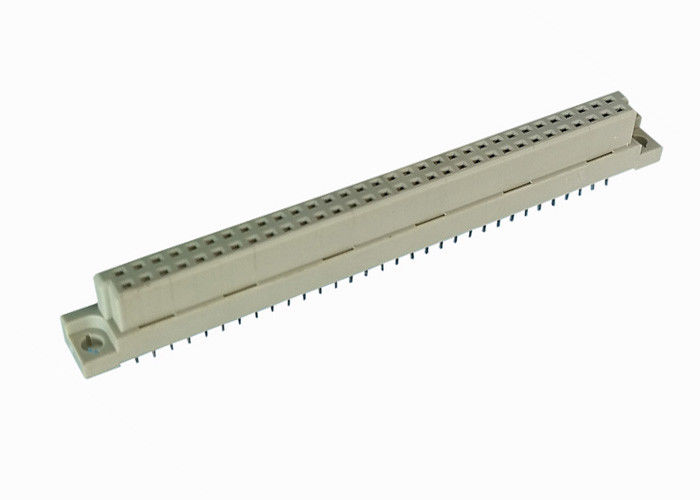

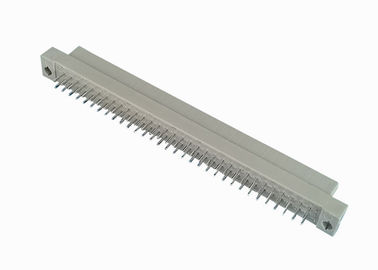

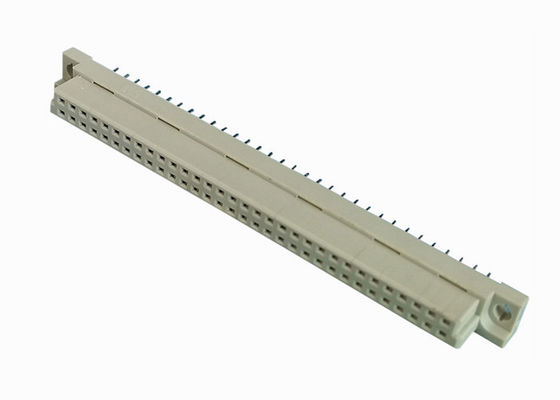

PBT Female DIN 41612 Connector 2.54mm Pitch 180 Degree Straight Double Row
|
Current Rating |
3.0AMP |
|
Contact Resistance |
30mΩ Max |
|
Withstand Voltage |
1000V AC/DC |
|
Insulation Resistance |
1000mΩ |
|
Operation Temperature |
﹣55℃ to +105℃ |
|
Contact Material |
Phosphor Bronze |
|
Contact Plating |
Au And Sn over Ni |
|
Fixing Material |
Phosphor Bronze |
|
Fixing Plating |
Sn over Ni |
|
Housing Material |
PBT+30%GF(UL94V-0) |
Product Name: DIN41612 connector
1. the characteristics: the product precision and reliable performance, good force strong
2. material: 1 material: rubber core PBT plus 30% glass, terminal material: copper alloy.
Product application
It is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides.
Category
1. Main models: 232, 332, 348, 364, 396, 120, 128.
2. Number of rows: two rows and three rows.
3. Connection form: straight hole / curved needle, vertical connection of curved hole / straight needle, parallel connection of curved hole / curved needle.
(European socket 120P, European socket 128p, straight hole, curved needle, connected to industrial control backplane, connection between backplane and daughter board, switch equipment control board.)
4. Contact points: 20, 32, 48, 64, 96, 120, 128, 160.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Are you manufacture of trading company?
A: We are a manufacture in Shenzhen, China.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
