SMT Type 16 Pin FFC FPC Connector 0.5mm Pitch Surface Mount Pin Header

Product Details:

Place of Origin:	China
Brand Name:	RealRun
Certification:	ISO9001, SGS, Rohs, Reach
Model Number:	FFC0.5-2*nT 16T

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Tray Packing
Delivery Time:	3~7workdays
Payment Terms:	L/C, T/T, Western Union,paypal
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Gender:	Male	Pitch:	0.5mm
Application:	PCB Board	Operating Voltage:	60V AC/DC
Contact Material:	Brass	Withstanding Voltage:	500V AC/minute
High Light:	flat flex cable connector , flex ribbon cable connector

SMT Type 16 Pin FFC FPC Connector 0.5mm Pitch Surface Mount Pin Header

Name	FFC Connector
Pitch	0.5mm
Type	DIP type
Insulator Color	Black
Insulator Flammability	UL 94V-0
Current Rating	3A
Contact Resistance(max)	4m ohm Max
Operating Voltage	60V AC/DC
Insulation Resistance(min)	1000M ohm Min at DC 500V
Contact materials	Gold/Tin plating
Contact Plated	Tin or gold over nickel
Insulator material	PA6T
Processing Temperature	-40~105℃
Packing	Tray Packing
OEM/ODM	Accepted

Description
1. FFC connector is flexible flat cable connector.
2. It is a new type of data cable made of pet insulating material and very thin tinned flat copper wire, which is pressed by high-tech automation equipment production line.
3. It has the advantages of softness, arbitrary bending and folding, thin thickness, small volume, simple connection, convenient disassembly, easy to solve electromagnetic shielding (EMI).
4. FPC connector is a flexible printed circuit board. Generally speaking, it is a PCB connector made of flexible materials (folding and bending materials) for the connection between LCD display and drive circuit (PCB).

Product Application:
1. FFC connector is widely used in the connection between various printer printheads and mainboards, signal transmission and board connection of products such as plotters, scanners, copiers, audio, liquid crystal appliances, fax machines and various DVD players.
2. FPC connector is mainly used in various fields such as digital communication products, portable electronic products, computer peripheral equipment, measuring instruments, automobile electronics, etc., such as mobile phones, digital cameras, notebook computers, mid, MP3 4 5, handheld game machines, audio systems, etc.

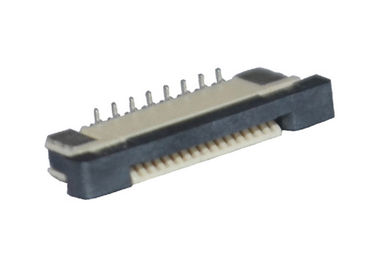

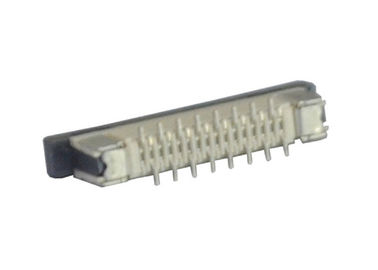

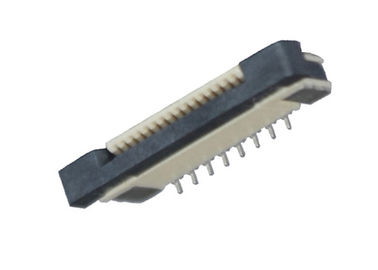

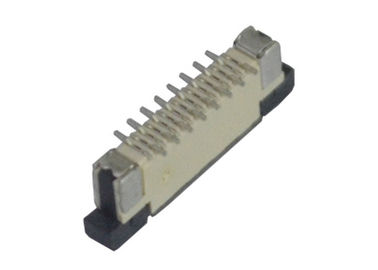

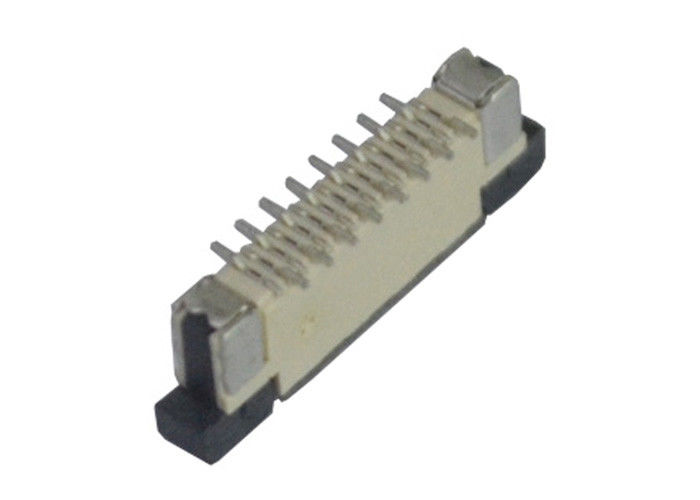

SMT Type 16 Pin FFC FPC Connector 0.5mm Pitch Surface Mount Pin Header 0
