Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | DP-nP 44P Female |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Processing Temperature: | -40~105℃ | Circuits: | 4~68P |
|---|---|---|---|
| Color: | Black | Application: | PCB Board |
| Insulator Material: | PBT/PA6T | Contact Plating: | Gold/Tin Over Nickel |
| High Light: | d subminiature connector,d type connector |
||

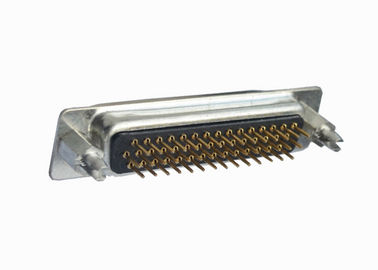

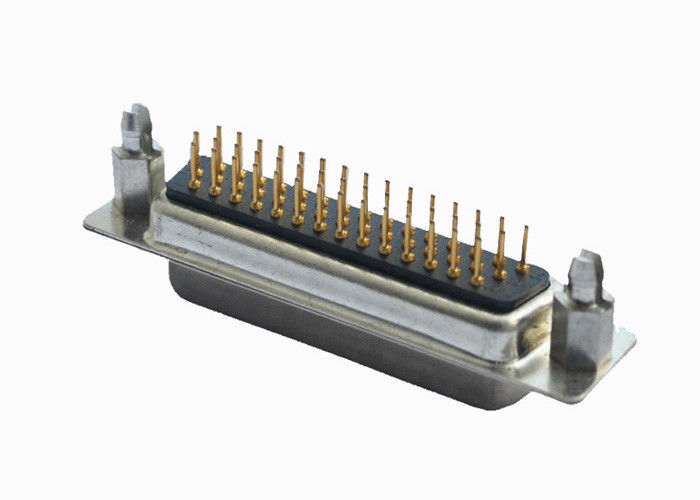

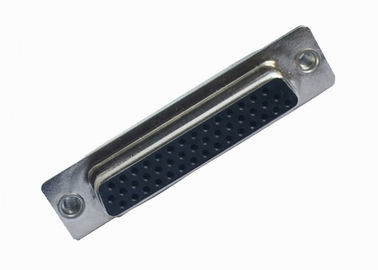

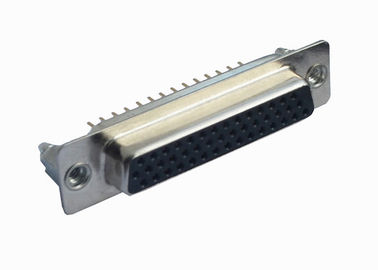

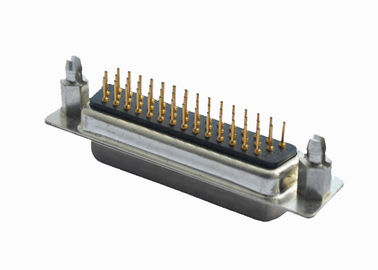

44 Pin D Type Female Connector Double Row PBT Material ISO9001 Approved
|
Rated current |
3.0A AC (RMS) |
|
Material - metal |
phosphor bronze |
|
Working temperature range |
-55 ℃~+105℃ |
|
Material - metal |
copper alloy |
|
Insulation resistance |
1000M Omega Min |
|
Contact resistance |
25 m Omega Max |
|
Voltage resistance |
500V AC r.m.s |
|
Rated voltage |
250V AC (RMS) /DC |
|
Material - resin |
PBT UL94V-0 |
D-SUB usage characteristics
D-SUB product characteristics: Can be divided into two rows, three rows of welding line series, male head head series, with rivets, with a high degree of close reactivity and a variety of fixed ground accessories, is a universal D-SUB, so that socket and plug protection cover combined, It is very good at shielding EMI. High-current D-SUB can complete high-density and high-current series and can be mixed with the signal at the same time. The maximum current is 50A. The coaxial D-SUB allows mixed contact in mixed use, including signals, Gaodianya and Fiber, this new type of connector, are improved by combining military products.
Product Application
(D-SUBminiature connectors) A family of plugs and sockets widely used in communications and on earlier PCs. For example, the analog VGA monitor interface uses a D-sub 15-pin plug and socket. Also called "DB connectors" and "D-subs," they come in 9, 15, 25, 37 and 50 pin varieties. The D-sub designation defines the physical structure of the connector, not the purpose of each line.
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method.
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
Q: How can we get a quote?
A: Please offer the specification of the product, such as part No. , quantity, drawing, etc.
