Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | R4.2-nW 8W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Name: | Wafer Connector | Contact Resistance(max): | 30m Ohm |
|---|---|---|---|
| Current Rating: | 7A | Insulator Material: | PA6T+30%GF(UL94V-0) |
| Insulation Resistance(min): | 1000M Ohm | Operating Temperature: | -40~105℃ |
| High Light: | terminal housing connector,wire board connector |
||

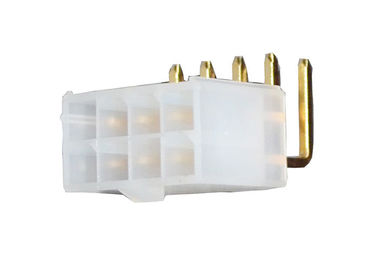

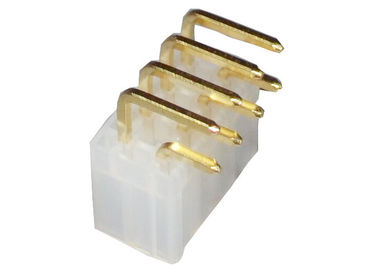

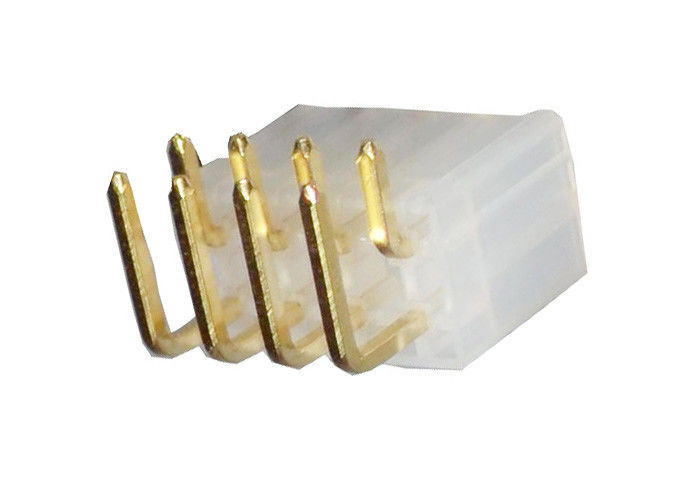

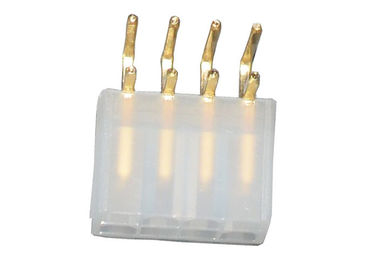

4.2 Mm Pitch Wafer Connector Right Angle Coppy Alloy Contact Material
| Product Name: wafer connector | ||||||||
| features: It is usually used together with female header to form board to board connection; or it is used together with electronic harness terminal to form board to line connection; it can also be used independently for board to board connection. | ||||||||
| product material: It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel. | ||||||||
| Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. Provide the most reliable connection for the plate to plate and the line to plate. |
| Current Rating | 2.0 AMP |
| Contact Resistance | 20 mΩ Max |
| Withstand Voltage | 500 V AC/DC |
| Insulation Resistance | 1000MΩ Min |
| Operation Temperature | -40℃ to 105℃ |
| Contact Material | Coppy Alloy |
| Products Name | Female Header Connector |
| Pitch | 2.00mm(0.079'') |
| Mounting Type | Through Hole |
| Contact Plating | Au over Ni |
| Insulator Material | PA6T+30%GF(UL94V-0) |
Packing & Shipping
1. Housing: bag /SMT Wafer:tape and reel/terminal:tape and reel .Normally,we use the carton with good quality to put all goods in it in case any damage during the delivery.
2. The way of shipment : by sea, by air, or express such as DHL/TNT/UPS etc.
3. Delivery Time: normally 3~7wroking dasy. For urgent orders ,we can shorten the delivery time accordingly.
Payment
1. We can accept T/T, L/C, Western Union, and Money Gram, you can choose the way you like.
2. Please make sure that you have completed all the detailed information like contact person, address, zip code, and telephone number when filling in your information.
Delivery Time
3 -7 days after receiving your payment(according to your quantity).
Feedback
Buyer’s early confirmation will be highly appreciated after receiving the goods.
Because your feedback is vital to our business’s development, we sincerely invite you to leave positive feedback for us, if you are satisfied with our products and services.
What we can do
1. All of our products will be 100% inspected before shipment.
2. We can design products according to customer demand.
3. Support imprint your logo on products.
