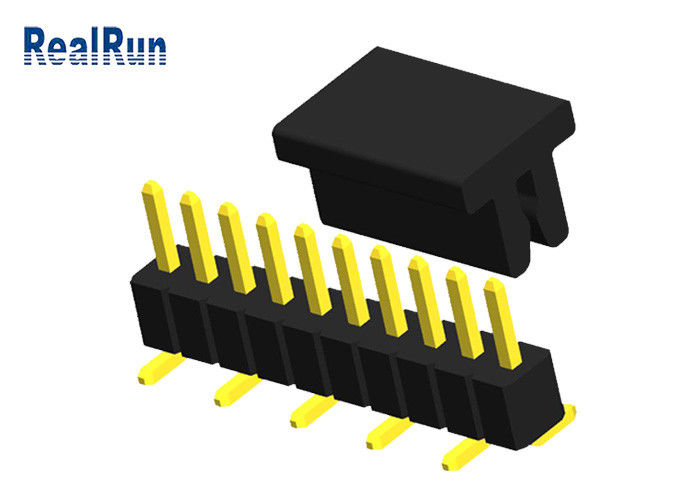

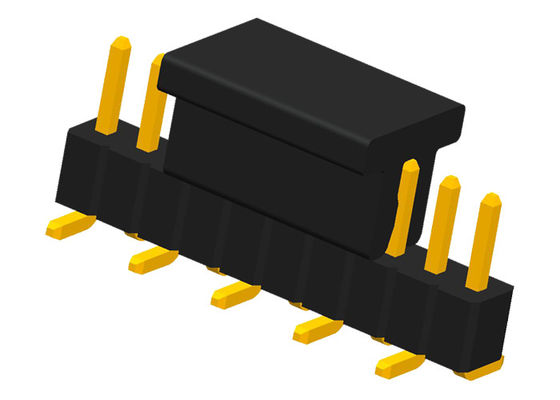

1.0mm 1x10 Single Row10P Male Header Connector With CAP

High Precision 1.0mm 1x10 Single Row Surface Mount 10P H=1.5 Male Header Connector with CAP

What's the Pin Header?

1. Pin header is called universal connector. Based on different designs for PCB,they choose different pitch connectors to meet.

2. 0.8mm/1.0mm/1.27mm/2.00mm/2.54mm pitch pin header are featured products in our company. If you need special pin header that standard pitch couldn't satisfy, e-mail or call our sales team.

3. Generally, pin headers with suited female headers are used to finish created modules in electronic industry.

4. Regarding pin header electrical and mechanical properties, same pitch has the same function, which we have shown clearly in our data sheet.

5. Another common variation on pin header is called "machine pin" version. The normal version is formed out of stamped and folded sheet metal, machine pin connectors are formed by tooling the metal into the desired shape,which is a more robust, with a better joint and longer life, making it more expensive though. Still more and more automotive and medical industry customers choose machine pin to improve connection stability.

Category

1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;

2. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);

3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;

4. According to the Height: 1.0/1.5/2.5mm;

5. Number of stitches: 02 to 80;

6. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column;

7. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).

8. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing;

FAQ

Q: Can I get some samples?

A: Yes,some samples are free.

Q: Who do I contact if I have a technical questions?
A: We have an experienced team of technical sales representatives in house. They are ready to answer any questions you may have and assist you in your project.

Q: If happend with the defective products when receiving the goods, how to deal with?

1. Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all the responsibility.

2. First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.

3. Second: discuss the solutions.

4. Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.

Q: How do you guarantee my goods right?

A: Order will be arranged exactly as requested, we will doubly check the packing and qty before delivering out also we will take you photos if required or necessary.

Q: Which payment can be accepted:

1. The payment terms can be flexiable depend on the quantity and products.

2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
