Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.54*8.5-2*nT 12T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.54mm | Current Rating: | 3A |
|---|---|---|---|
| Contact Resistance(max): | 20M Ohm | Insulation Resistance(min): | 1000M Ohm |
| Processing Temperature: | 260±5℃ For 10 Seconds | Operating Temperature: | -40~105℃ |
| High Light: | 8.5mm Height SMT Female Header,2.54mm Pitch SMT Female Header,PA9T Dual Row SMT Connector |
||

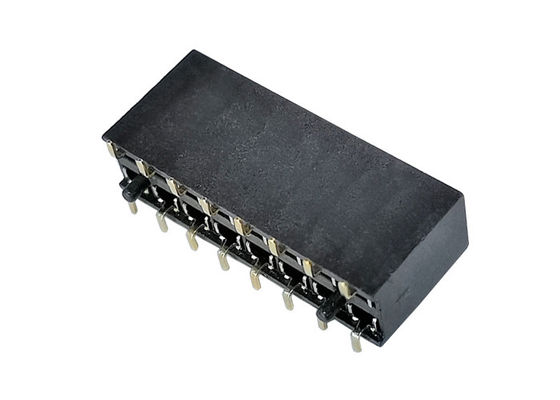

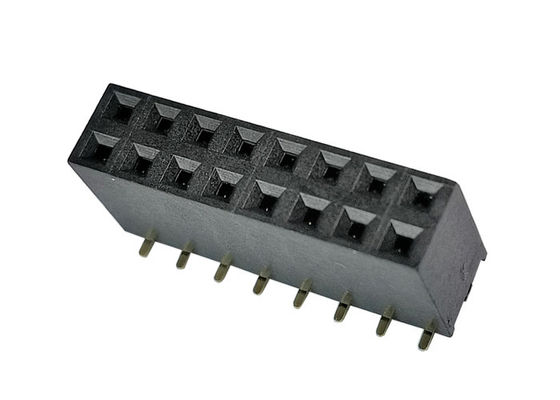

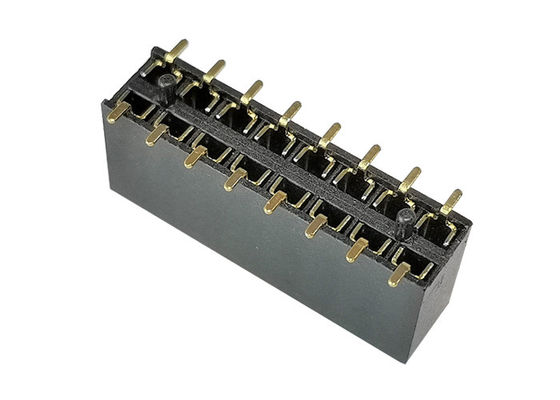

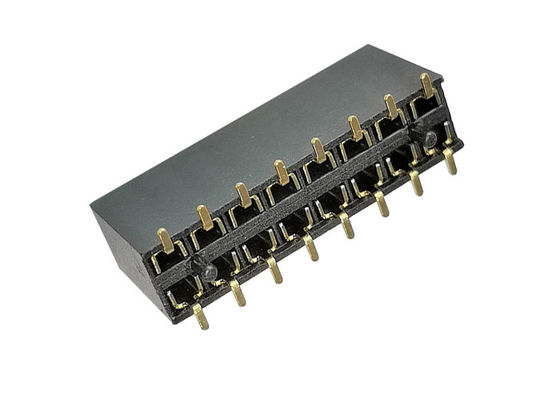

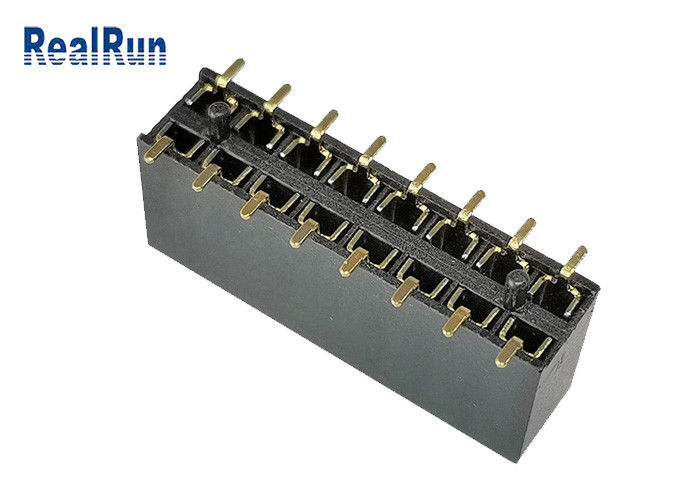

2.54mm Pitch Dual Row SMT Female Header H=8.5mm Height Connector
| Product name: 2.54mm female header connector | ||
| 1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance. | ||
| 2. product function :Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission. | ||
| 3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection. |
Specifications
1. Pitch:2.54mm(0.1'')
2. Connector Name: PCB Connector/Female Pin Header
3. Insulation Material:PA9T UL 94-V0
4. Contact Material: Copper Alloy
5: Mounting Type: Through Hole
6: Number of Row: Single Row
7: Contact Finish: Gold Over Nickel
8: Termination: Solder
9: Color:Black
10: Current Rating:2A
11: Withstand Voltage:500V AC/DC
12: Contact Resistance:20mΩ Max
13: Pin Length: Customization
14: Pin Available:2Pins to 80Pins
15. Plastic Height: 5.0mm
16. Fastening Type:Push-Pull
17. Style:Board to Board
18. Contact Type:Female Socket
Our Services:
1. We value our customers’ trust in sourcing for the most suitable components for their requirements.
2. We only offer what is best for our customers, knowing each customer is unique.
3. Our fast, innovative service will ensure that our customers’ needs are answered
4. We value every customer, no matter small or medium volume orders.
5. Our business is not just about components supply, it’s about delivering promises.
6. Our aim is make sourcing connector easy for you
7. We'll reply your inquiry within 24hours,Online Inquiry is Welcome.
8. We provide OEM,ODM services
9. 20pcs free samples, For repeat order customer, We'll provide more than 20pcs samples for prototype project if necessary.
10. Your one-stop source for components solutions.
How to Packing:
We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:
1. Tray Packing, suitable for manual assembly.
2. Tube Packing, suitable for manual assembly.
3. Reel Packing with tape, suitable for automatic machine producing.
4. Reel Packing with Cap, suitable for automatic machine producing.
