| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.0*4.0-1*7P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing/Tube Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Color: | Black | Pitch: | 2.0mm |
|---|---|---|---|
| Plastic Height: | 4.0mm | Insulator Material: | PBT+30%Glass Fiber UL94V-0 |
| Contact: | Brass | Contact Plating: | Gold/Tin Over Nickel |
| Current Rating: | 2.0A | Contact Resistance(max): | 30mΩ Max |
| Insulation Resistance(min): | 1000MΩ Min | Processing Temperature: | 230℃ For 10 Seconds |
| Operating Temperature: | -40℃ To +105℃ | ||
| High Light: | Dip Single Row Pin Header,7pin Single Row Pin Header,2.0mm Pitch Pcb Pin Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 10 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

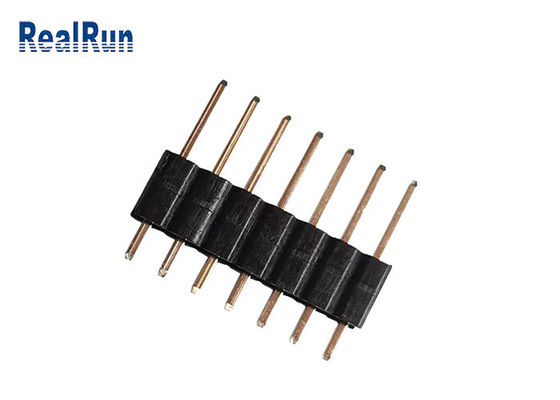

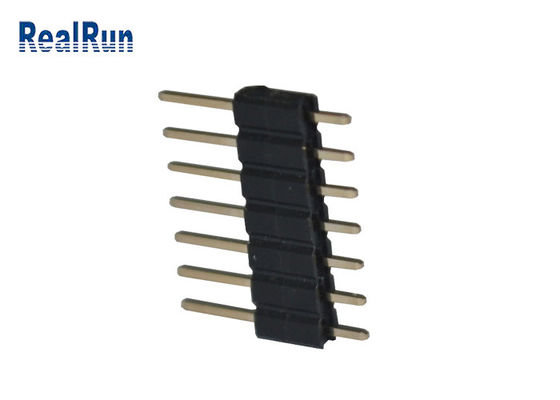

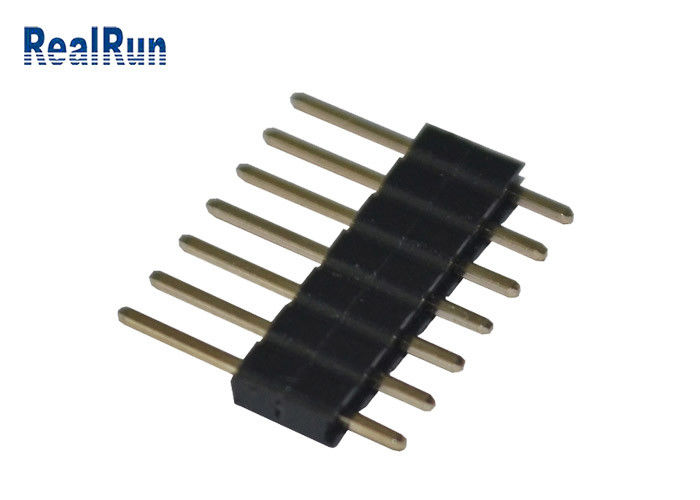

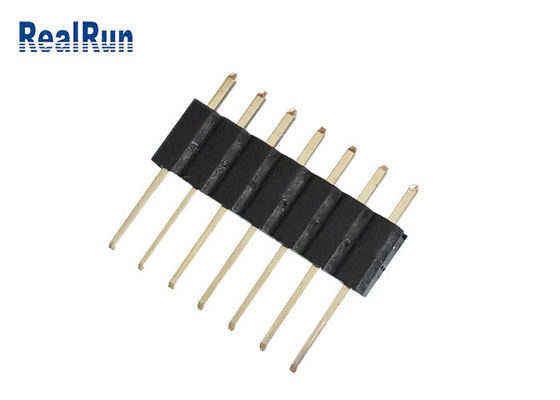

Gold plated 2.0mm pitch 7 pin pcb connector dip type single row pin header
Product features:Envornment protection rubber and plastic, containing 30% glass fiber, fireproof and high temperature resistant, with strong oxidation resistance and stability.
Product function:Complete the plate-to-plate-to-line connection like a bridge, so as to achieve the function of current connection signal transmission.
Scope of application: Widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.
| Name | Pin Header Connector/PCB Connector |
| Pitch | 2.0mm |
| Plastic Height | 4.0mm |
| Type | DIP Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 2.0A |
| Contact Resistance(max) | 30m ohm Max |
| Operating Voltage | 40V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Brass |
| Contact Plating | Tin or gold over nickel |
| Insulator material | PBT+30%Glass Fiber |
| Operation Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
| Mounting Type | Through Hole |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2 Pins to 80 Pins |
Classification of pin header
According to pitch:0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.96mm, 5.08mm.
According to row number: single row ,dual row,three row,four row.
According to terminal shape: U type,Y type,O type.
According to number of plastic:single plastic, double plastic,three plastic.
According to structure:DIP,right angle,PBW,SMT,U type.
Packaging＆shipping
Tray/Reel/Tube/Inner box + outer packing.
why choose RealRun for supplier?
A: 1. RealRun has more than 10 years experiences in the electronic connectors area.
2.The goods with good quality and service are sold to more than 70 countries.
3.More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4.One of the biggest electronic connectors supplier in the China mainland.
Payment
A 1.The payment terms can be flexiable depend on the quantity and products.
2.Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
