| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.0*4.0-1*nT-6T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing/Tube Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.0mm | Plastic Height: | 4.0mm |
|---|---|---|---|
| Current Rating: | 2.0A | Contact Resistance(max): | 30mΩ Max |
| Insulation Resistance(min): | 1000MΩ Min | Processing Temperature: | 260℃ For 10 Seconds |
| Operating Temperature: | -40℃ To +105℃ | ||
| High Light: | PA6T Single Row Pin Header,2.0mm Pitch Single Row Pin Header,6pin Single Row SMT Connector |
||

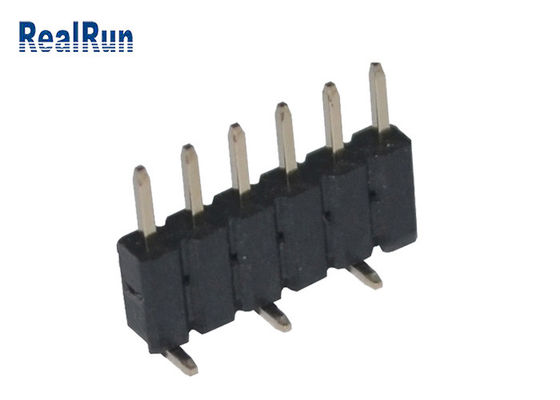

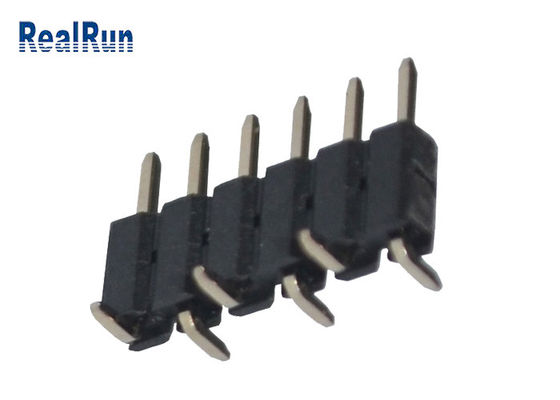

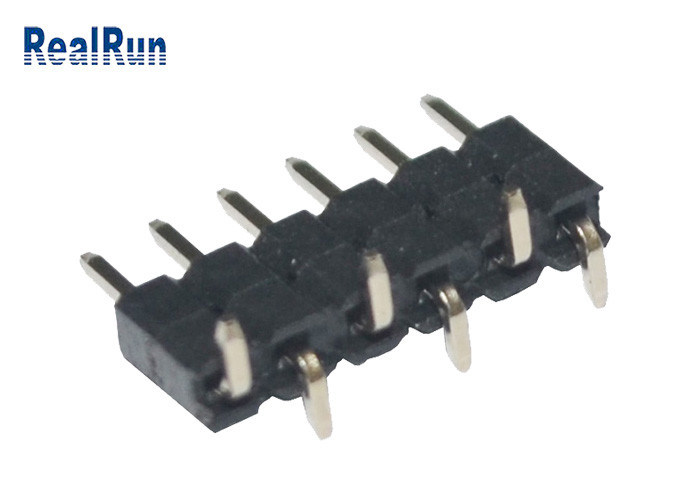

PA6T 2.0mm 6 pin single row and plastic SMT type pin header
| Product name: 2.0mm pin header connector |
|
1. Features: By using environmental protection high temperature resistant fireproof rubber and plastic, strong oxidation resistance and stability. |
|
|
|
2. Material: it is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel. High strength, high hardness, strong chemical corrosion resistance.
|
|
|
|
3. Scope of application: widely used all kinds of products in Electronic industry, such as remote control, computer, TV, digital camera, MP3, mobile phone, U disk, electronic watch motherboard, home appliances, etc. all kinds of board-to-board, board-to-line connection. |
| Name | Pin Header Connector |
| Pitch | 2.0mm |
| Plastic Hight | 4.0mm |
| Type | SMT Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 2.0A |
| Contact Resistance(max) | 30m ohm Max |
| Withstanding Voltage | 500V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
| Mounting Type | Horizontal |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2 Pins to 80 Pins |
How to order?
1,please tell us what type and quantity you need；
2,we will make a PL for you to confirm the order details ;
3,when we confirmed everything, can arrange the payment;
4,finally we deliver the goods within the stipulated time;
How to contact us?
Send your inquiry details in the below, click "chat now", communicate with our customer service staff and they will tell you the information you need.if you can't find the product in our web, you can also send an inquiry to us, even if we don't make it, we will find the same product with good quality and price for you.
Can i get some samples?
Yes, we can provied some samples for you and free of charge.
