| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.0*2.0-2*nT |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing/Tube Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Color: | Black | Pitch: | 2.0mm |
|---|---|---|---|
| Plastic Height: | 2.0mm | Insulator Material: | PA6T+30%Glass Fiber, UL94V-0 |
| Contact: | Brass | Contact Plating: | Gold/Tin Over Nickel |
| Current Rating: | 2.0A | Contact Resistance(max): | 30mΩ Max |
| Insulation Resistance(min): | 1000MΩ Min | Processing Temperature: | 260℃ For 10 Seconds |
| Operating Temperature: | -40℃ To +105℃ | ||
| High Light: | 44pin Dual Plastic Pcb Connector,Dual Plastic Pcb Connector UL94V-0,Pitch 2.0mm Smt Pin Header |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 10 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

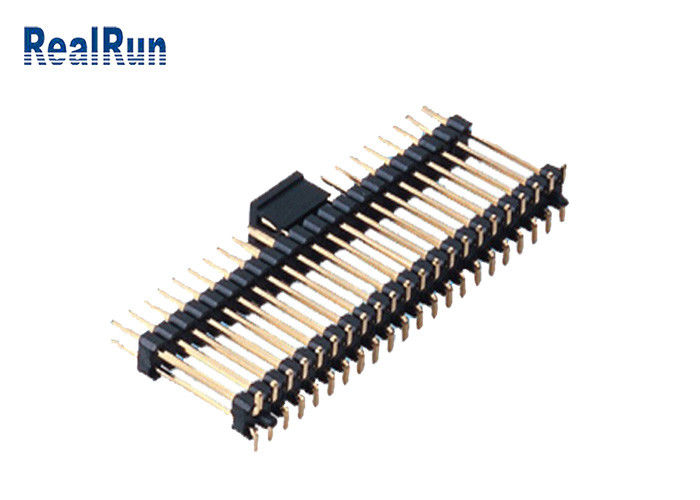

2.0 mm 2*22 pin dual row and dual plastic pcb connector smt type pin header
Product features:Fire prevention and high temperature resistance, stable performance and not easy to deform, long service life.
Product function: Play a connecting role, help connect PCb, conducting electricity and transmitting signals.
Scope of application:Suitable for various same electronic products.
| Name | Pin Header Connector/PCB Connector |
| Pitch | 2.0mm |
| Plastic Height | 2.0mm |
| Type | SMT Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | PA6T+30%Glass Fiber, UL 94V-0 |
| Current Rating | 2.0A |
| Contact Resistance(max) | 30m ohm |
| Insulation Resistance(min) | 1000M ohm |
| Contact materials | Brass |
| Contact Plating | Gold/Tin over nickel |
| Operation Temperature | -40℃ to +105℃ |
| Processing Temperature | 260℃ for 10 seconds |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
| Mounting Type | Through Hole |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2 Pins to 80 Pins |
Please feel free to contact us and we will send you the drawings you need
What's the Pin Header
1. Pin header is called universal connector. Based on different designs for PCB,they choose different pitch connectors to meet.
2. 0.8mm/1.0mm/1.27mm/2.00mm/2.54mm 3.96 pitch pin header are featured products in our company. If you need special pin header that standard pitch couldn't satisfy, e-mail or call our sales team.
3. Generally, pin headers with suited female headers are used to finish created modules in electronic industry.
4. Regarding pin header electrical and mechanical properties, same pitch has the same function, which we have shown clearly in our data sheet.
5. Another common variation on pin header is called "machine pin" version. The normal version is formed out of stamped and folded sheet metal, machine pin connectors are formed by tooling the metal into the desired shape, which is a more robust, with a better joint and longer life, making it more expensive though. Still more and more automotive and medical industry customers choose machine pin to improve connection stability.
How to contact us online?
Click dialog box on the right and choose "chat". now you can send us your problem.
What's the delivery time?
The delivery time will depends on the quantity that you need, it's usually 7-14 workdays.
