| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.0*2.0-2*nT |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing/Tube Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Color: | Black | Pitch: | 2.0mm |
|---|---|---|---|
| Plastic Height: | 2.0mm | Insulator Material: | PA6T+30%Glass Fiber, UL94V-0 |
| Contact: | Brass | Contact Plating: | Gold/Tin Over Nickel |
| Current Rating: | 2A | Contact Resistance(max): | 30mΩ Max |
| Insulation Resistance(min): | 1000MΩ Min | Processing Temperature: | 260℃ For 10 Seconds |
| Operating Temperature: | -40℃ To +105℃ | ||
| High Light: | 2.0mm Pitch Pin Header Connector,Double Row Pin Header Connector,2A 30 Pin Header Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

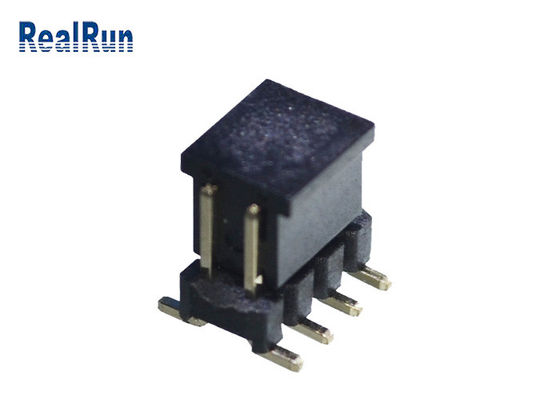

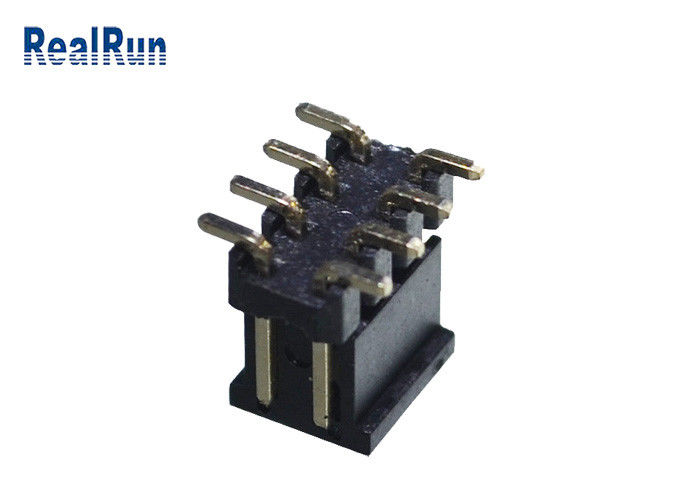

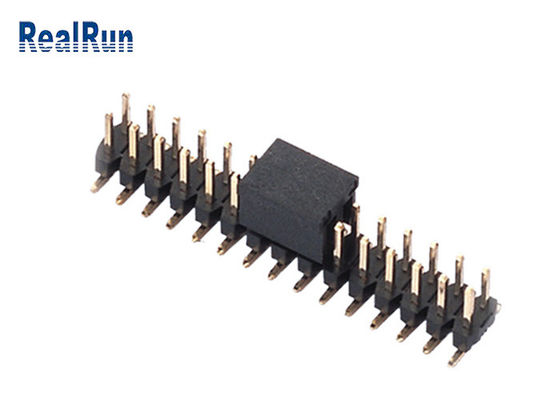

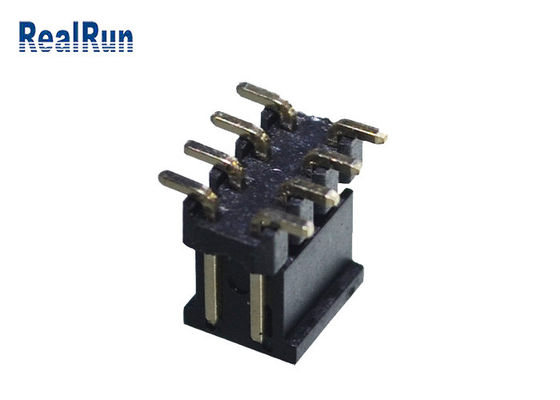

Section 2.0 pitch 30 pin double row smt type pin header connector
Product features: It adopts a variety of environmentally friendly fire-proof antioxidant, which has strong electrical conductivity, is blocked or isolated between circuits, plays the role of bridge, and undertakes current tasks or signal transmission.
Product material: Its materials are brass wire, phosphor copper wire, copper-clad steel wire, pure copper wire, nickel plating and nickel plating on the surface.
Scope of application: widely used in monitors, MP3,MP4,PDA,digital cameras, computers, computer motherboards, mobile storage disks, card readers, safety products, electricity meters, wireless phones, mobile phones, interphones, program-controlled switches, VCD,DVD,LCM / LED display module, electronic toys, household appliances, etc. Provide the most reliable connection for board-to-board and line-to-board.
| Name | Pin Header Connector/PCB Connector |
| Pitch | 2.0mm |
| Plastic Height | 2.0mm |
| Type | SMT Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | PA6T+30%Glass Fiber, UL 94V-0 |
| Current Rating | 2.0A |
| Contact Resistance(max) | 30m ohm |
| Insulation Resistance(min) | 1000M ohm |
| Contact materials | Brass |
| Contact Plating | Gold/Tin over nickel |
| Operation Temperature | -40℃ to +105℃ |
| Processing Temperature | 260℃ for 10 seconds |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
| Mounting Type | Through Hole |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2 Pins to 80 Pins |
Please feel free to contact us and we will send you the drawings you need.
