| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.0*2.0-2*nW |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing/Tube Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Color: | Black | Pitch: | 2.0mm |
|---|---|---|---|
| Plastic Height: | 2.0mm | Insulator Material: | PBT/PA6T+30%Glass Fiber, UL94V-0 |
| Contact: | Brass | Contact Plating: | Gold/Tin Over Nickel |
| Current Rating: | 2A | Contact Resistance(max): | 20mΩ Max |
| Insulation Resistance(min): | 1000MΩ Min | Processing Temperature: | 230℃ ±5℃ For 10 Seconds |
| Operating Temperature: | -40℃ To +105℃ | ||
| High Light: | PBT Right Angle Pin Header,PA6T Right Angle Pin Header,2A Dual Row Pin Header |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

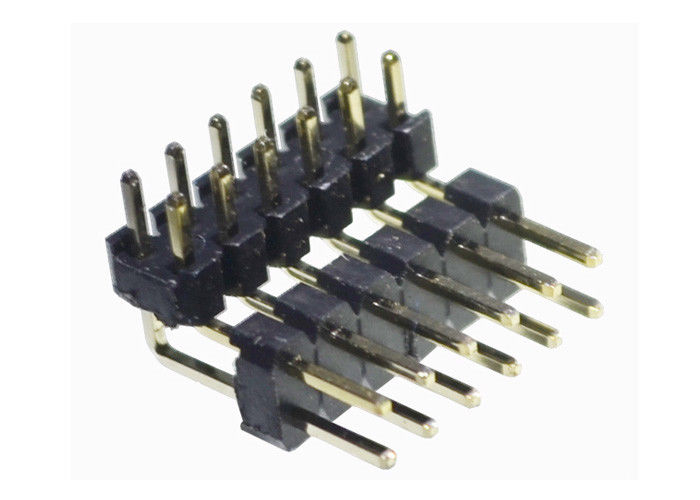

2.0 mm pitch dual row dual plastic right angle type pin header
Product features: stable performance, high temperature resistance, excellent conductivity, stable signal transmission.
Product material: 30% glass fiber, high temperature resistant plastic, brass wire, phosphor copper wire, copper clad steel wire, pure copper wire, nickel plating, nickel plating on the surface.
Scope of application: this kind of connector is widely used in PCB circuit board of electronics,electrical appliances and instruments. Its function is to bridge the blocked or isolated circuits in the circuit and take on the task of current or signal transmission. It is usually used with bus bar to form board to board connection, or with electronic harness terminal to form board to line connection, or can be used independently for board to board connection.
| Name | Pin Header Connector/PCB Connector |
| Pitch | 2.0mm |
| Plastic Height | 2.0mm |
| Type | Right Angle Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | PBT/PA6T+30%Glass Fiber, UL 94V-0 |
| Current Rating | 2A |
| Contact Resistance(max) | 20m ohm |
| Insulation Resistance(min) | 1000M ohm |
| Contact materials | Brass |
| Contact Plating | Gold/Tin over Nickel |
| Operation Temperature | -40℃ to +105℃ |
| Processing Temperature | 230℃±5℃ for 10 seconds |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
| Mounting Type | Through Hole |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2 Pins to 80 Pins |
Please feel free to contact us and we will send you the drawings you need.
Pin Header
Pin header,a kind of connector, This kind of connector is widely used in PCB circuit board of electronics,electrical appliances and instruments.
Its function is to bridge the blocked or isolated circuits in the circuit and take on the task of current or signal transmission.
It is usually used with bus bar to form board to board connection, or with electronic harness terminal to form board to line connection, or can be used independently for board to board connection.
Due to the different specifications required by different products, there are many types and specifications of pin connectors.
According to the spacing, it can be roughly divided into seven categories: 5.08mm, 3.96mm, 2.54mm, 2.00mm, 1.27mm, 1.00mm and 0.8mm.
According to the number of rows, there are single row pins, double row pins and three row pins.
According to the shap structure, there are SMT (horizontal / vertical), dip (direct / curved), U type and so on.
It mainly plays the role of current or signal transmission. It is usually used together with female header to form board to board connection.
FAQ
Q: Are you trading company or factory?
A: We are a factory with 15 years of connector manufacturing experience.
Q: What's your terms of payment?
A: 1.The payment terms can be flexiable depend on the quantity and products.
2.Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Can i get some samples?
A: Yes, some samples are for free.
Q: Has the product been check before delivery?
A: Yes, we have 100% full check before delivery.
Q: Can I visit your factory?
A: Welcome to visit, you will be more confident to us because of our professional control from design,production to shipment.
