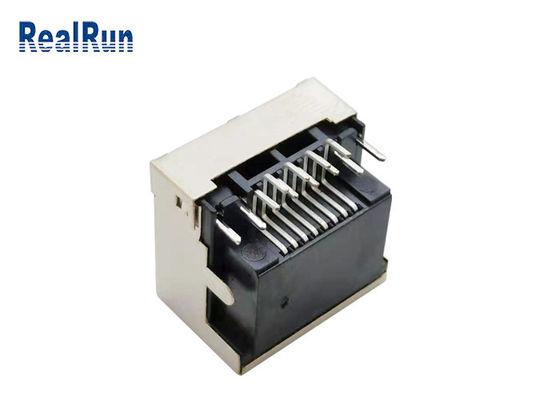

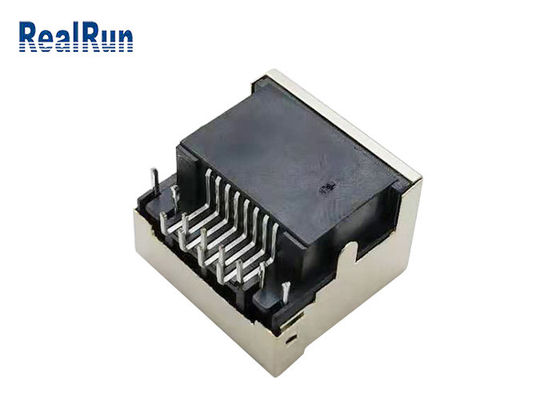

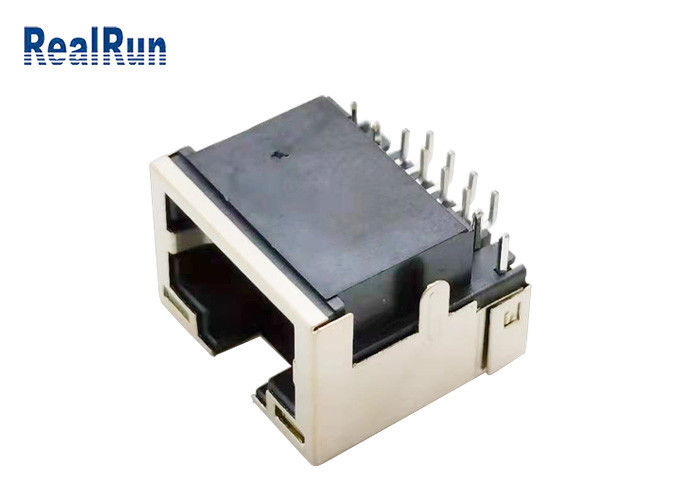

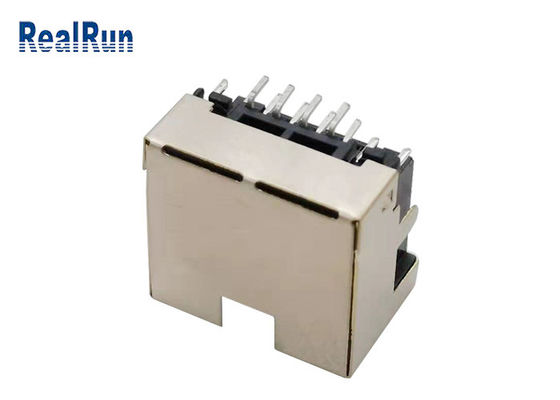

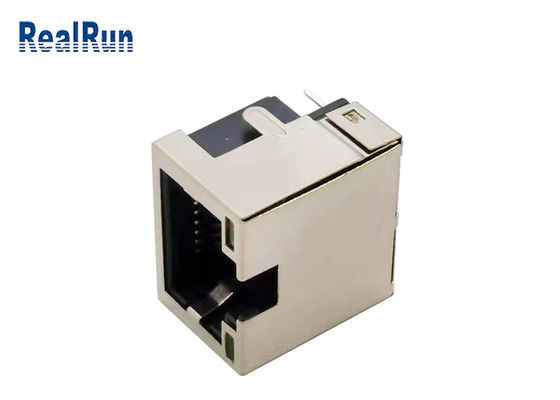

PCB 8pin RJ45 Modular Jack Connector Right Angle With LED Light 1.5A

Product Description:

Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

Ethernet 8 Pin RJ45 Modular Jack Connector Right Angle With LED Light/Shield 1.5A

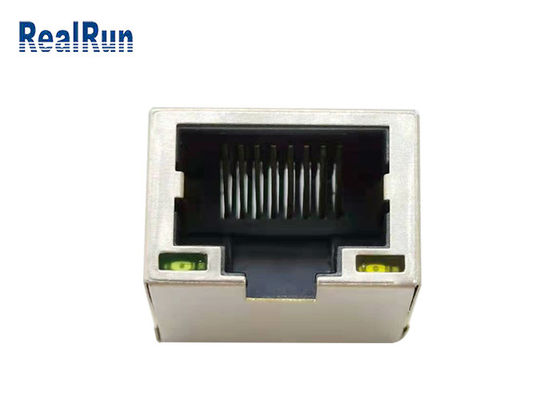

Product features: Modular shape, It has strong stability. low profile housing metal shield, strong anti-interference ability. with LED signal lamp to detect the working state, environment protection and high temperature resistant Nylon UL94V-0 plastic, phosphor bronze contact material,Stable, wear-resistant, good conductivity. electroplating - gold plating over nickel surface Antirust treatment.

Product function:Like a bridge, connecting the two sides of the circuit, so that they get between the flow, to achieve the purpose of signal transmission.

Scope of application: Common in the network communication equipment manufacturing industry, used as network computer, router, optical cat, printer and other Internet and communication electronic products network interface, and RJ45 plug matching use, so that information and data exchange, transmission.

Specification:

Please feel free to contact us and we will send you the drawings you need.

What are the components of RJ45 connector?

1. Main Body: It's made of plastic, which can isolate, protect and fix RJ45 connector terminals. The commonly used materials are: PBT, PA66, PA46, LCP and other fireproof materials.

2. Shielding shell: Shielding shell plays a role in protecting and beautifying the product. Brass nickel plating is often used as shielding shell of RJ45 connector.

3. Terminal: The terminal plays the role of conducting and connecting in the whole circuit, and generates and maintains the pressure between the contact surface and the crystal head. Generally, phosphor bronze is used as the main material of the terminal.

4. Terminal Coating: The terminal coating can prevent the oxidation of the terminal surface and strengthen the conduction of the contact surface of the terminal. Generally, the contact surface is plated with gold and the welding surface is plated with tin.

FAQ

Q: Can I get some samples?

A: Yes,some samples are free.

Q: Are you factory or trading company?

A: We are a factory in Shenzhen,GuangDong,China.

Q: How can we get a quote?

A: Please offer the specification of the product, such as part No. , quantity, drawing, etc.

Q: Which payment can be accepted?

A1. The payment terms can be flexiable depend on the quantity and products.

A2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
