Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | RJ45-56-31 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing/Tube Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Place Of Origin: | GuangDong, China | Brand: | RealRun |
|---|---|---|---|
| Applycation: | PCB | Type: | RJ45 Connector |
| Model Number: | RJ45-56-31 | Number Of Ports: | Single Port |
| Temperature Range: | -40~+70℃ | Voltage Rating: | 125V |
| Current Rating: | 1.5A | Contact Resistance: | ≤30m Ω |
| Insulation Resistance: | ≥500MΩ | Dielectric Strength: | 1000V AC/(50hz)/Min |
| Mating And Unmating Force: | 3~20N | Durability: | 750 Cycles Min |
| Housing: | PBT/PA46 UL94V-0 | Contact: | Phosphor Bronze Ø0.46mm |
| Plating: | Gold Plating Over Nickel | Shiled: | Copper Alloy Plated Nickel |
| High Light: | 8P8C Modular RJ45 Female Connector,PA46 RJ45 Female Connector,PBT Metal Shielded RJ45 Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

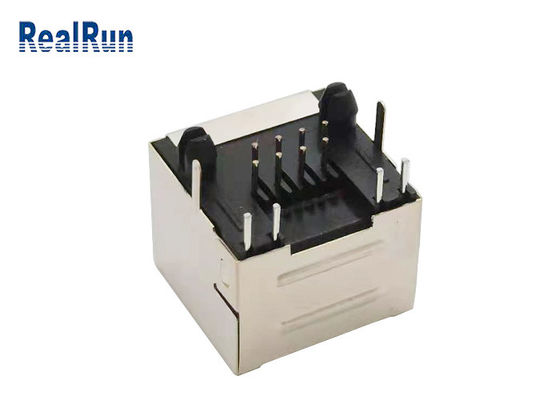

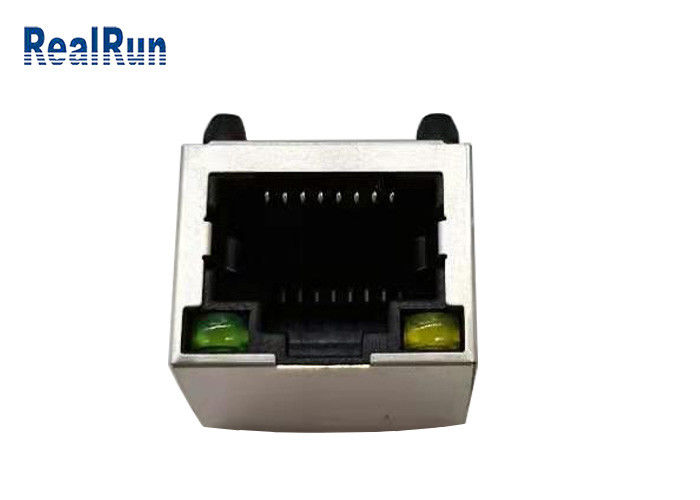

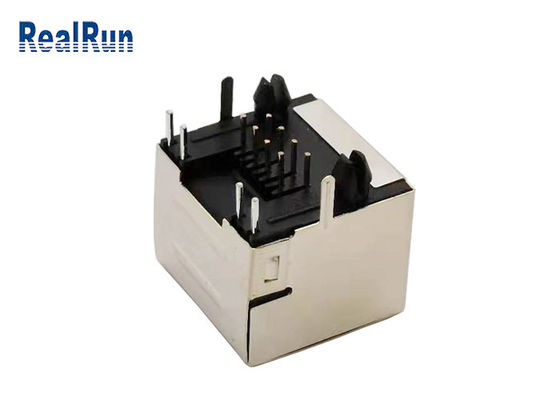

8P8C Modular Jack RJ45 Female Connector With Metal Shield And LED
Product features: Environmental protection and high temperature resistant PBT / PA6T UL94V-0 plastic, modular shell metal shield, effectively protect the product and resist external interference. LED signal indicator light can reflect the state of connection. The material used for the terminal is phosphor bronze, which is relatively stable, with high conductivity and wear resistance. The terminal coating can prevent the oxidation of the terminal surface and strengthen the conduction of the contact surface of the terminal.
Product function: Through the connection with RJ45 plug, the network bridge is built to realize the terminal data connection at both ends.
Scope of application: It is widely used in communication equipment industry and network interface.
Specification:
| Product Name | RJ45 Connector |
| Place Of Origin | GuangDong, China |
| Brand | RealRun |
| Applycation | PCB |
| Number Of Ports | Single Port |
| Gender | Female |
| Temperature Range | -40~+70℃ |
| Voltage Rating | 125V |
| Current Rating | 1.5A |
| Contact Resistance | ≤30m Ω |
| Insulation Resistance | ≥500MΩ |
| Dielectric Strength | 1000V AC/(50hz)/Min |
| Mating and Unmating Force | 3~20N |
| Durability | 750 Cycles Min |
| Housing | PBT/PA46 UL94V-0 |
| Contact | Phosphor Bronze Ø0.46mm |
| Plating | Gold Plating Over Nickel |
| Shiled | Copper Alloy Plated Nickel |
| Packing | PE bag, Tube, Tube+Cap, Tray, Tape & Reel |
| OEM/ODM | Accepted |
Please feel free to contact us and we will send you the drawings you need.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: How do I buy the product I want?
A1: You can find products on our website and send it to us.
A2: If you can't find them, you can also find similar products and send them to us. It's usually best to send us drawings or pictures and product specifications, We'll soon know what products you need and quote you.
Q: Which payment can be accepted?
A1. The payment terms can be flexiable depend on the quantity and products.
A2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: what's your delivery time?
A: it depends on the quantity of the order. If there is stock in stock, it usually takes 3-7 working days. If there is no stock, it will take 15-20 days.
