Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | RJ45-56-31 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing/Tube Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Place Of Origin: | GuangDong, China | Brand: | RealRun |
|---|---|---|---|
| Applycation: | PCB | Type: | RJ45 Connector |
| Model Number: | RJ45-56-31 | Number Of Ports: | Single Port |
| Operation: | -40℃~+70℃ | Voltage Rating: | 125V |
| Current Rating: | 1.5 Amp | Contact Resistance: | ≤30m Ω |
| Insulation Resistance: | ≥500MΩ | Dielectric Strength: | 1000V AC/(50hz)/Min. |
| Mating And Unmating Force: | 3-20N | Durability: | 750 Cycles Min |
| Housing＆ Insert Material: | PA6T/PBT UL94V-0 | Contact Material: | Phosphor Bronze Ø0.46mm |
| Plating: | Gold Plating Over Nickel, Thickness | Shiled: | Copper Alloy T=0.2mm Plating Nickel |
| Led Light: | The Color Is Optional | ||
| High Light: | PA6T RJ45 Female Connector Socket,PBT RJ45 Female Connector Socket,Elastic Shell Shield Female Rj45 Socket |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

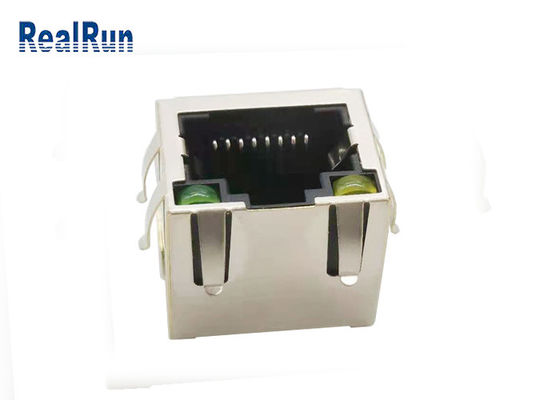

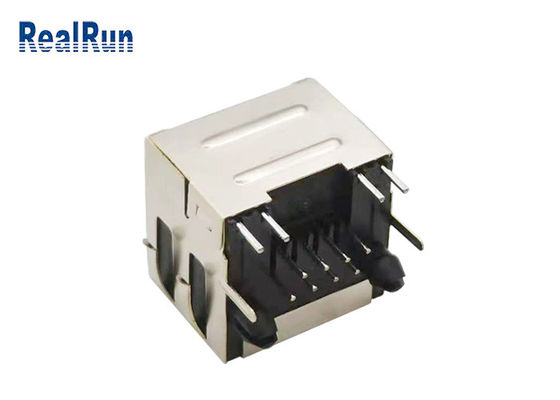

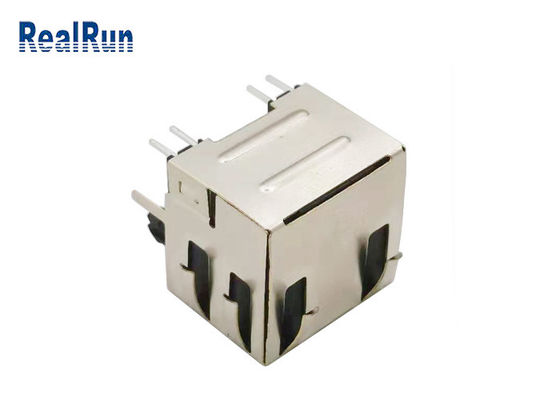

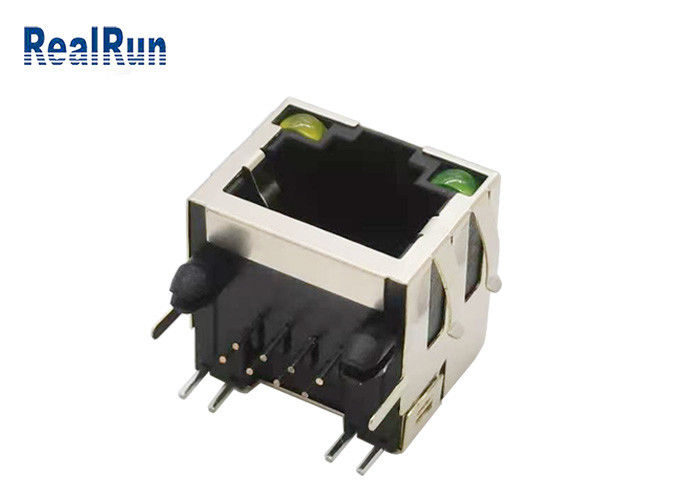

RJ45 Connector Female Socket For PCB With LED/Elastic Shell Shield
Product features:
Light and no deformation, with elastic metal shell , effective anti-interference, contact material oxidation treatment, in addition, electroplating treatment, extend the service life.
Product material:
1. Shell (Plastic) material: PBT / LCP / PA46 UL94V-0
2. Shell (Plastic) color: black or other
3. Contact material: phosphor bronze
4. Electroplating: Gold Plating Over Nickel, Thickness
5. Protective layer (Shielded) : Copper Alloy Plated Nickel
Scope of application:
It is widely used in network communication industry, network equipment manufacturing industry and network jack of various products.
Specification:
| Product Name | RJ45 Connector |
| Place Of Origin | GuangDong, China |
| Brand | RealRun |
| Applycation | PCB |
| Number Of Ports |
Single Port |
| Gender | Female |
| Temperature Range | -40~+70℃ |
| Voltage Rating | 125V |
| Current Rating | 1.5A |
| Contact Resistance | ≤30m Ω |
| Insulation Resistance | ≥500MΩ |
| Dielectric Strength | 1000V AC/(50hz)/Min |
| Mating and Unmating Force | 3~20N |
| Durability | 750 Cycles Min |
| Housing | PA46/PBT UL94V-0 |
| Contact | Phosphor Bronze Ø0.46mm |
| Plating | Gold Plating Over Nickel, Thickness is Optional |
| Shiled | Copper Alloy t=0.2mm Plating Nickel |
| Led Light | The Color Is Optional |
| Packing | PE bag, Tube, Tube+Cap, Tray, Tape & Reel |
| OEM/ODM | Accepted |
Please feel free to contact us and we will send you the drawings you need.
FAQ
Q: Can i get some samples?
A: Yes, we can provied some samples for you and free of charge.
Q: Do you check the products before shipment?
A: We will ensure that every product is inspected before shipment.
Q: How long does it usually take to get the goods?
A: It depends on quantity,if in stock,usually 3-7 days,If no stock,usually 15~20 days.
Q: Where is your company?
A: RealRun company in GongMing Town, GuangMing New District, ShenZhen,GuangDong, China.
