Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | RJ45-59-01 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing/Tube Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Place Of Origin: | GuangDong, China | Brand: | RealRun |
|---|---|---|---|
| Applycation: | PCB | Type: | RJ45 Connector |
| Model Number: | RJ45-56-31 | Number Of Ports: | Single Port |
| Operation: | -40℃~+70℃ | Voltage Rating: | 125V |
| Current Rating: | 1.5 Amp | Contact Resistance: | ≤30m Ω |
| Insulation Resistance: | ≥500MΩ | Dielectric Strength: | 1000V AC/(50hz)/Min. |
| Mating And Unmating Force: | 3-20N | Durability: | 750 Cycles Min |
| Housing＆ Insert Material: | PA6T/PBT UL94V-0 | Contact Material: | Phosphor Bronze Ø0.46mm |
| Plating: | Gold Plating Over Nickel, Thickness | Shiled: | Copper Alloy T=0.2mm Plating Nickel |
| Led Light: | The Color Is Optional | ||
| High Light: | UL94-0 Rj45 Connector Metal Shielded,125V Rj45 Connector Metal Shielded,10P8C Modular RJ45 Jack |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

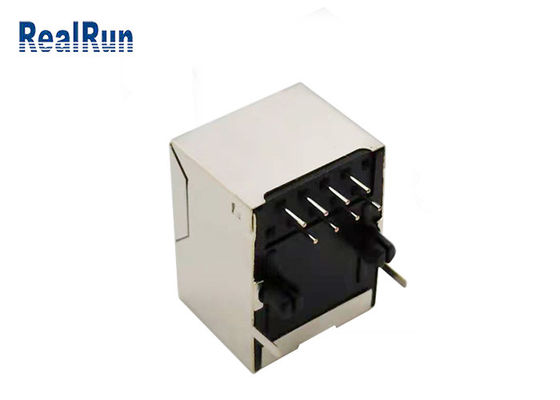

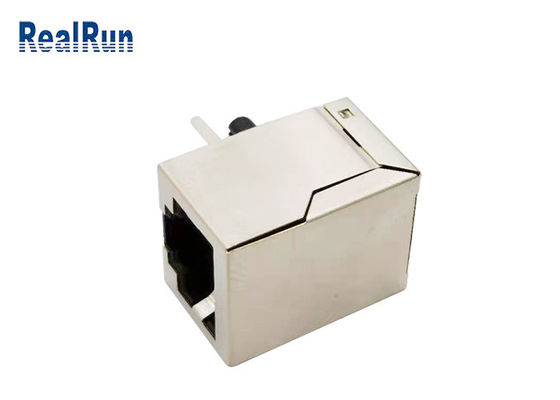

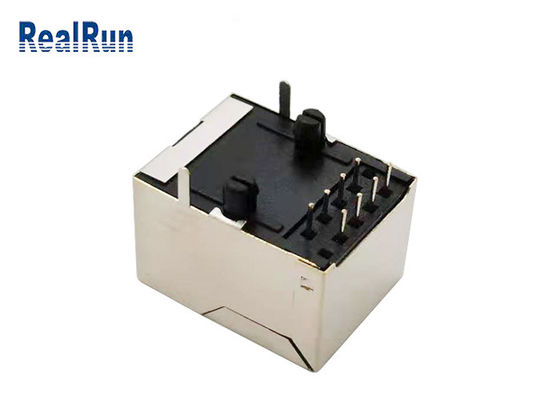

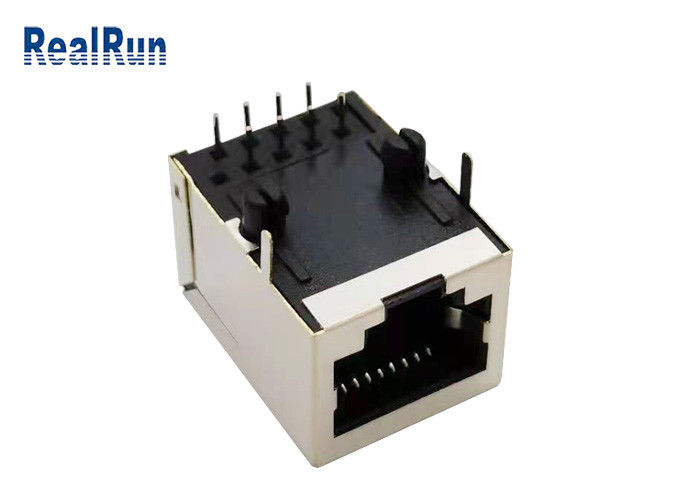

Copper Alloy RJ45 Connector 10P8C Modular Full Shield Jack UL94-0
Product Features:
Widely used, light and thin, easy to install, stable performance, beautiful appearance, beautiful price, long service life.
Product Material:
1. Housing: PBT UL94V-0
2. Contact: Phosphor Bronze Ø0.46mm
3. Plating: Gold Plating Over Nickel
4. Shield: Copper Alloy t=0.2mm Plating Ni.
Scope of Application:
It is widely used in electronic communication equipment industry, such as desktop computer network cable interface, notebook computer network cable interface, router interface, optical cat interface, printer and so on.
Specification:
| Product Name | RJ45 Connector |
| Place Of Origin | GuangDong, China |
| Brand | RealRun |
| Applycation | PCB |
| Number Of Ports |
Single Port |
| Gender | Female |
| Temperature Range | -40~+70℃ |
| Voltage Rating | 125V |
| Current Rating | 1.5A |
| Contact Resistance | ≤30m Ω |
| Insulation Resistance | ≥500MΩ |
| Dielectric Strength | 1000V AC/(50hz)/Min |
| Mating and Unmating Force | 3~20N |
| Durability | 750 Cycles Min |
| Housing | PBT UL94V-0 |
| Contact | Phosphor Bronze Ø0.46mm |
| Plating | Gold Plating Over Nickel |
| Shiled | Copper Alloy t=0.2mm Plating Nickel |
| Packing | PE bag, Tube, Tube+Cap, Tray, Tape & Reel |
| OEM/ODM | Accepted |
Please feel free to contact us and we will send you the drawings you need.
Why choose us as the supplier?
1.We focus on making electronic connectors and have 15 years of experience
2. We have a strong professional R & D team for the design of modules and connectors
3. Quality assurance, product quality certification, RoHS and reach certification, SGS, ISO9001
4. 100% inspection, ensure each product passes the quality inspection standard before shipment
5. Fast Delivery, Orders Shipped In 3-10 Days
6. Provide OEM / ODM service, Good pre-sales and after-sales service until the customer is satisfied.
