| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | RJ45-59-01 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing/Tube Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Place Of Origin: | GuangDong, China | Brand: | RealRun |
|---|---|---|---|
| Applycation: | PCB | Type: | RJ45 Connector |
| Model Number: | RJ45-59-01 | Number Of Ports: | Single Port |
| Operation: | -40℃~+70℃ | Voltage Rating: | 125V |
| Current Rating: | 1.5 A | Contact Resistance: | ≤30m Ω |
| Insulation Resistance: | ≥500MΩ | Dielectric Strength: | 1000V AC/(50hz)/Min. |
| Mating And Unmating Force: | 3-20N | Durability: | 750 Cycles Min |
| Housing: | PBT UL94V-0 | Contact Material: | Phosphor Bronze Ø0.46mm |
| Plating: | Gold Plating Over Nickel | Shiled: | Copper Alloy T=0.2mm Plating Nickel |
| High Light: | PBT UL94V-0 RJ45 Network Socket,10p8c RJ45 Network Socket,125V RJ45 Network Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

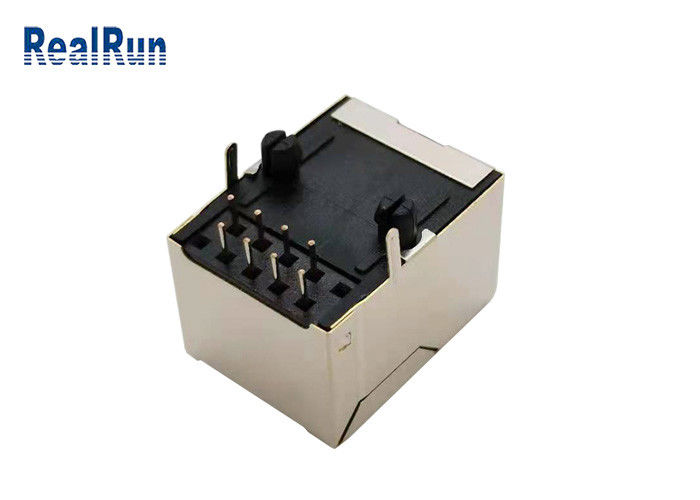

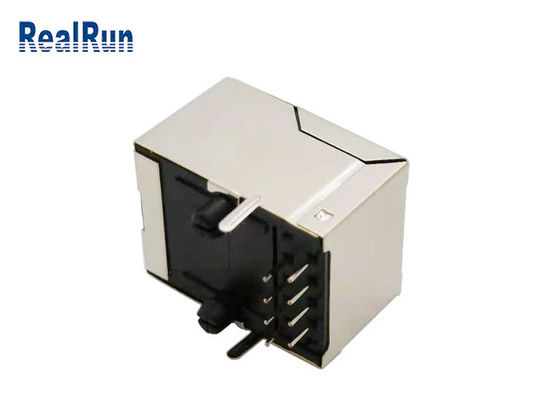

RJ45 Network Interface Socket 10p8c Without LED Socket
Product Features:
modular jack, easy to install and stable. The inner hole is provided with a metal lock, which is fastened and can be plugged in and out for many times. The outer shell is made of 0.2mm copper alloy, with high performance shielding.
Product Material:
1. Housing: PBT UL94V-0
2. Contact: Phosphor Bronze Ø0.46mm
3. Plating: Gold Plating Over Nickel
4. Shield: Copper Alloy t=0.2mm Plating Ni.
Scope of Application:
It is widely used in the interface of electronic equipment, computer network, routing optical cat, etc. it is used for data signal intercommunication, and it is used with RJ45 plug,
Specification:
| Product Name | RJ45 Connector |
| Place Of Origin | GuangDong, China |
| Brand | RealRun |
| Applycation | PCB |
| Number Of Ports |
Single Port |
| Gender | Female |
| Temperature Range | -40~+70℃ |
| Voltage Rating | 125V |
| Current Rating | 1.5A |
| Contact Resistance | ≤30m Ω |
| Insulation Resistance | ≥500MΩ |
| Dielectric Strength | 1000V AC/(50hz)/Min |
| Mating and Unmating Force | 3~20N |
| Durability | 750 Cycles Min |
| Housing | PBT UL94V-0 |
| Contact | Phosphor Bronze Ø0.46mm |
| Plating | Gold Plating Over Nickel |
| Shiled | Copper Alloy t=0.2mm Plating Nickel |
| Packing | PE bag, Tube, Tube+Cap, Tray, Tape & Reel |
| OEM/ODM | Accepted |
Please feel free to contact us and we will send you the drawings you need.
FAQ
1.Can I get some samples?
A: Yes,some samples are free.
2. why we choose RealRun for our supplier?
A: 1. RealRun has more than 15 years experiences in the electronic connectors area.
A: 2.The goods with good quality and service are sold to more than 70 countries.
A: 3.More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
A: 4.One of the biggest electronic connectors supplier in the China mainland.
3. If happend with the defective products when receiving the goods, how to deal with?
A: 1.Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all the responsibility.
A: 2.First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.
A: 3.Second: discuss the solutions.
A: 4.Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.
4. which payment can be accepted?
A: 1.The payment terms can be flexiable depend on the quantity and products.
A: 2.Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
