Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | RJ45-52-42-CB |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing/Tube Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Place Of Origin: | GuangDong, China | Brand: | RealRun |
|---|---|---|---|
| Applycation: | PCB | Type: | RJ45 Connector |
| Model Number: | RJ45-52-42-CB | Number Of Ports: | Single Port |
| Operation: | -40 ~+70℃ | Voltage Rating: | 125V |
| Current Rating: | 1.5 A | Contact Resistance: | ≤30m Ω |
| Insulation Resistance: | ≥500MΩ | Dielectric Strength: | 1000V AC/(50hz)/Min |
| Mating And Unmating Force: | 3-20N | Durability: | 750 Cycles Min |
| Housing: | Glass Filled Polyester (UL94V-0) | Contact: | Phosphor Bronze Ø0.46mm |
| Plating: | Gold Plating Over Nickel | Shield: | Copper Alloy Plated Nickel |
| High Light: | Vertical RJ45 Modular Jack Connector,Phosphor Bronze Modular Jack Connector,UL94V-0 RJ45 Female Socket Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

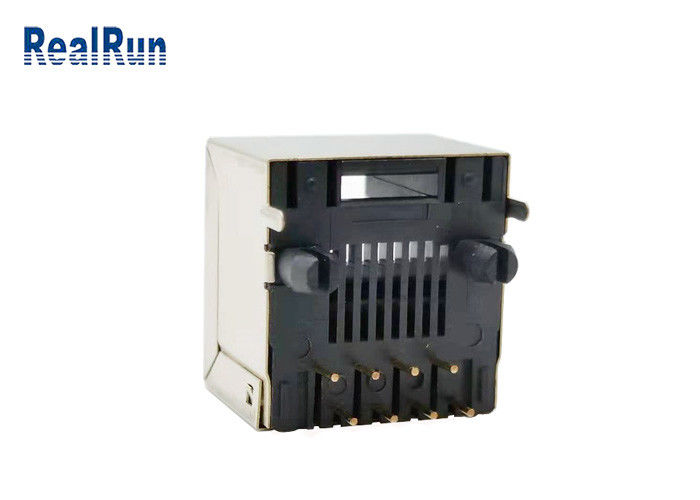

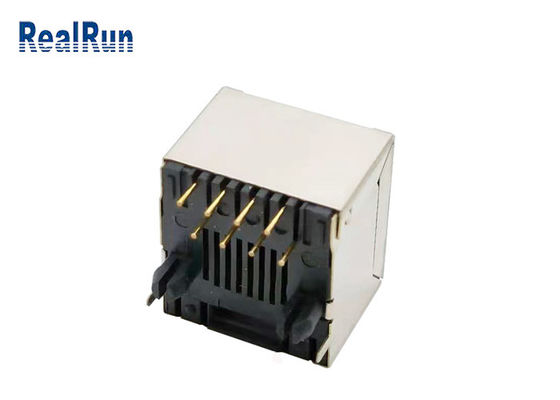

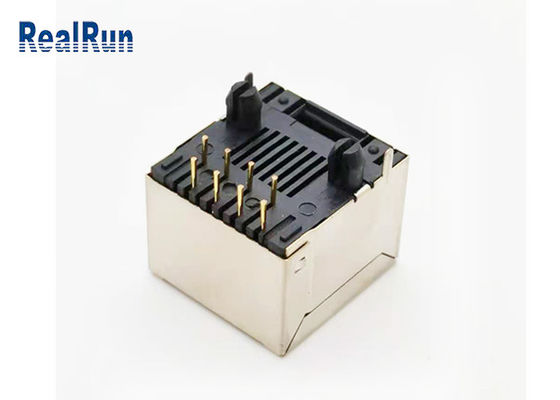

Vertical Modular Jack RJ45 Female Socket PCB Connector
Product Features: Environmental protection, high temperature resistance, high performance, beautiful price, light weight, long life
Product Material: Glass Filled Polyester, UL94V-0, Phosphor bronze, Copper alloy.
Scope of Application: Usually used in Communication interface of network equipment.
Specification:
| Product Name | RJ45 Connector |
| Place Of Origin | GuangDong, China |
| Brand | RealRun |
| Applycation | PCB |
| Number Of Ports |
Single Port |
| Gender | Female |
| Temperature Range | -40~+70℃ |
| Voltage Rating | 125V |
| Current Rating | 1.5A |
| Contact Resistance | ≤30m Ω |
| Insulation Resistance | ≥500MΩ |
| Dielectric Strength | 1000V AC/(50hz)/Min |
| Mating and Unmating Force | 3~20N |
| Durability | 750 Cycles Min |
| Contact | Phosphor Bronze Ø0.46mm |
| Housing | Glass Filled Polyester(UL94V-0) |
| Plating | Gold Plating Over Nickel |
| Shield | Copper Alloy Plated Nickel |
| Packing | PE bag, Tube, Tube+Cap, Tray, Tape & Reel |
| OEM/ODM | Accepted |
Please feel free to contact us and we will send you the drawings you need.
RealRun Company Profile
ShenZhen RealRun Electronic Co.,Ltd. is a connector manufacturer integrating with product R＆D, design, production and marketing with the main business covering pin header, female header, box header, header connector ,IDC, IDC flat cable,FFC/FPC, FFC flexible flat cable and bar connector. S9nce its establishment in May of 2005,the Company persists in a business philosophy of "quality first,service supplemented, credit or ientated" to keep pace with the times. In 2013, the company had passed ISO9001 quality certification, and established a product testing lab, All of the products satisfy the requirements as per ROHS and REACH.
"Three-C" of the Company is deeply trusted by customers and employees;
Clean: cleaning, tidy, self-cleaning;
Coordination: coordinate with customers, leaders and employees;
Connection: connection with the world,colleagues and products;
The Company enjoys excellent equipment and precise testing. At present, our products are well sold to each quarter of China,and some of our products are sold to foreign countries. We have set up business office in ChengDu and BeiJing. Taking "satisfying you" as mission, the Company is making great efforts to develop international market. We sincerely hope all the coustomers to make discussion on cooperation with us for win-win.
