| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | Mini Jumper2.54-2*nP 2P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing/Tube Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Place Of Origin: | GuangDong, China | Brand: | RealRun |
|---|---|---|---|
| Applycation: | PCB | Type: | Mini Jumper Connector |
| Insulator: | PBT | Contact: | Brass |
| Contact Plating: | Au Over Ni | Max. Processing Temp: | 180℃ For 30-60 Seconds (200℃ For 10 Seconds) |
| Current Rating: | 3.0AMP | Withstanding Voltage: | 1000V AC Min |
| Insulation Resistance: | 1000 MΩ Min | Contact Resistance: | 20m Ω Max |
| Operation Temperature: | -40℃ To +105℃ | ||
| High Light: | Mini Jumper Short Circuit Connector,PBT Insulator Short Circuit Connector,3.0A Surface Mount Pin Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

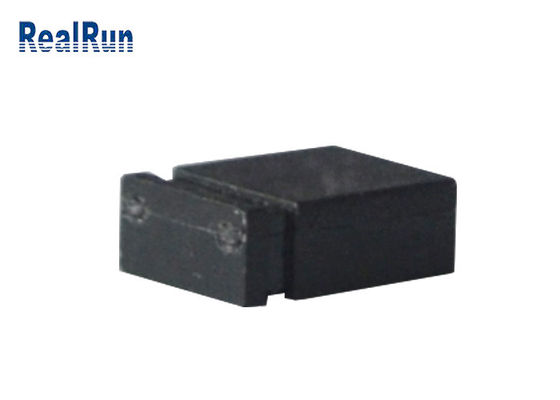

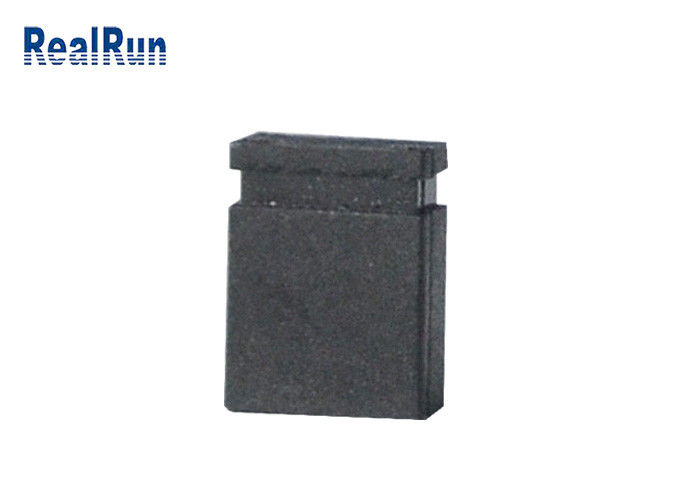

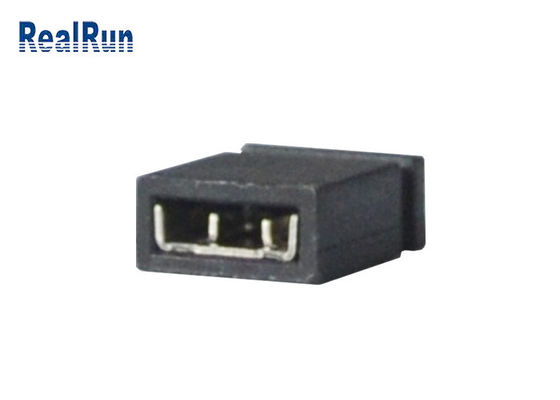

Closed Type 2Pin Mini Jumper Short Circuit Connector
Product features: The outer part is made of high temperature resistant environment-friendly insulating plastic, and the inner contact material is brass, It has the characteristics of stability and good conductivity.
Product function: Adjust the on-off relationship of different electrical signals on the equipment, and adjust the working state of the equipment, such as determining the motherboard voltage, master-slave relationship of the driver, etc.
Scope of application: Widely applicable to various electronic products PCB board in electronic industry.
Specification:
| Product Name | Mini Jumper Connector |
| Place Of Origin | GuangDong, China |
| Brand Name | RealRun |
| Applycation | PCB |
| Number Of Pins | 2 Pin |
| Gender | Female |
| Insulator Color | Black |
| Insulator Material | PBT |
| Contact | Brass |
| Contact Plating | Au over Ni |
| Max. Processing Temp | 180℃ for 30-60 seconds(200℃ for 10 seconds) |
| Current Rating | 3.0 AMP |
| Withstanding Voltage | 1000V AC Min |
| Insulation Resistance | 1000 MΩ Min |
| Contact resistance | 20m Ω Max |
| Operation Temperature | -40℃ to +105℃ |
| Packing | PE bag, Tube, Tube+Cap, Tray, Tape & Reel |
| OEM/ODM | Accepted |
Please feel free to contact us and we will send you the drawings you need.
RealRun Company
Shenzhen RealRun Electronic Co., Ltd established in May of 2005, specializes in operating connectors. RealRun always regards quality as corporate life, adheres to the business philosophy of the quality to the market, the management to benefit and the leading innovation and brand strategy. Since the company established,we have payed attention to the management specification and high quality requirements, now have passed ISO9001 quality management system certification, all products are according with the UR RoHS and REACH the environmental protection requirements. We always adhere to the "market-oriented, customer satisfaction" as the tenet, and constantly strive to be outstanding enterprise.
The company is located in Shenzhen Guangming new district, with a floorage of 1500sq.m. for plant and 100 employees, main products: Pin header, Female header, Box header, Ejector header, IDC series, IC socket, single and double row round hole socket, FFC/FPC connector and SD socket, FFC cable, flat ribbon cable, RJ45 and RJ11, etc.
The company has a skilled R&D and management team, and first-class level of advanced production equipment and precision testing instruments. The domestic market is main in south China, radiation throughout the country, the international market is main in Hong Kong, Taiwan and the global clients.
Our Advantages
1. 15 Year's Connector Manufacturing Experience In The Electronic Industry.
2. Strong R&D Team, Specialized In Connector And Modle Design.
3. Quality Certification,Certified ROHS And REACH,SGS,ISO9001.
4. Strict Shipping,100% Tested Before Delivery.
5. Fast Delivery, Orders Shipped In 3-10 Days.
6. OEM/ODM Service Offered.
