| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.0*1.5-1*nP 10Pin |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing/Tube Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Place Of Origin: | Guangdong, China | Brand Name: | RealRun |
|---|---|---|---|
| Color: | Black | Pitch: | 2.0mm |
| Plastic Height: | 1.5mm | Insulator Material: | PA6T+30%Glass Fiber UL94V-0 |
| Contact: | Brass | Contact Plating: | Gold/Tin Over Nickel |
| Current Rating: | 2.0A | Contact Resistance(max): | 30mΩ Max |
| Insulation Resistance(min): | 1000MΩ Min | Operating Temperature: | -40℃ To +105℃ |
| Processing Temperature: | 260℃ For 10 Seconds | ||
| High Light: | SMT SMD Pin Header Connector,PA6T Vertical Pin Header Connector,2.0mm Single Row Header Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
Description
1. Product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
2. It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.
3. Pin header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides.

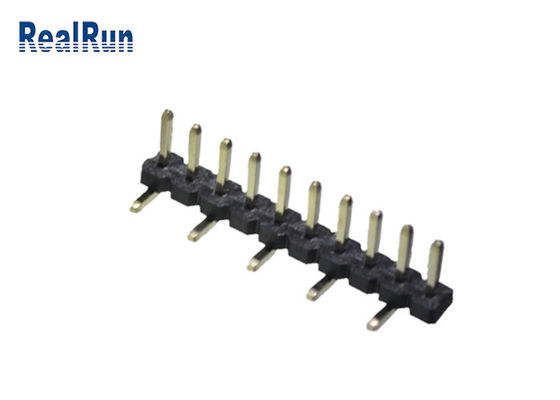

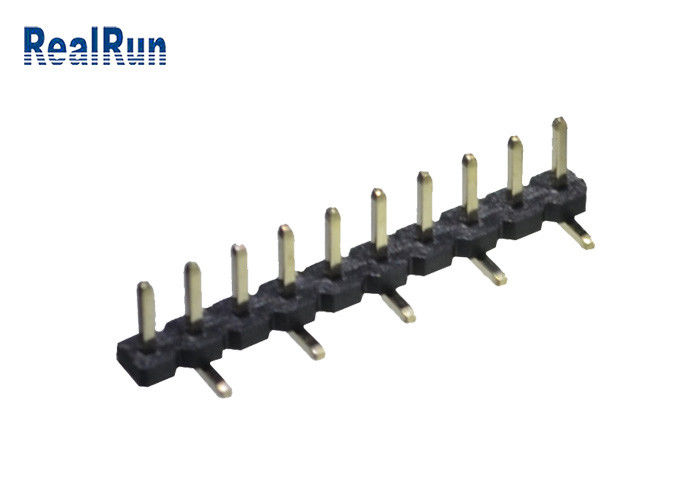

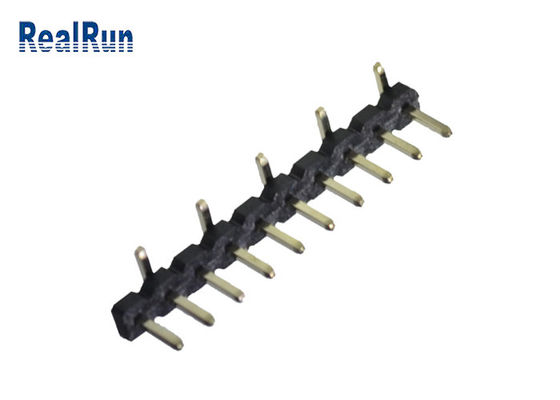

| Name | Pin Header Connector/PCB Connector |
| Pitch | 2.0mm |
| Plastic Height | 1.5mm |
| Type | Vertical SMT Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | PA6T+30%G.F UL 94V-0 |
| Current Rating | 2.0A |
| Contact Resistance(max) | 30m ohm Max |
| Insulation Resistance(min) | 1000M ohm Min |
| Contact materials | Brass |
| Contact Plating | Tin or gold over nickel |
| Insulator material | PA6T+30%Glass Fiber |
| Operation Temperature | -40~105℃ |
| Processing Temperature | 260℃ for 10 seconds |
| Packing | Tape&reel+CAP Packing |
| OEM/ODM | Accepted |
| Mounting Type | Through Hole |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 1Pin~40Pin(Customized) |
Please feel free to contact us and we will send the drawing of you need
why choose RealRun for supplier?
A: 1. RealRun has more than 15 years experiences in the electronic connectors area.
2.The goods with good quality and service are sold to more than 70 countries.
3.More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4.One of the biggest electronic connectors supplier in the China mainland.
FAQ
Q: Are you trading company or factory?
A: We are a factory with 15 years of connector manufacturing experience.
Q: What's your terms of payment?
A: 1.The payment terms can be flexiable depend on the quantity and products.
2.Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Can i get some samples?
A: Yes, some samples are for free.
Q: Has the product been check before delivery?
A: Yes, we have 100% full check before delivery.
Q: Can I visit your factory?
A: Welcome to visit, you will be more confident to us because of our professional control from design,production to shipment.
