| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.54*2.5-3*nW 30Pin |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing/Tube Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Place Of Origin: | Guangdong, China | Brand Name: | RealRun |
|---|---|---|---|
| Color: | Black | Pitch: | 2.54mm |
| Plastic Height: | 2.5mm | Insulator Material: | PBT+30%Glass Fiber, UL94V-0 |
| Contact Material: | Brass | Contact Plating: | Gold Or Tin Over Nickel |
| Current Rating: | 3.0Amp | Contact Resistance(max): | 20mΩ Max At DC 3Amp |
| Insulation Resistance(min): | 1000MΩ Min | Operating Temperature: | -40℃ To +105℃ |
| High Light: | 2.54mm Surface Mount Male Connector,PBT Surface Mount Male Connector,Three Row PCB Male Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

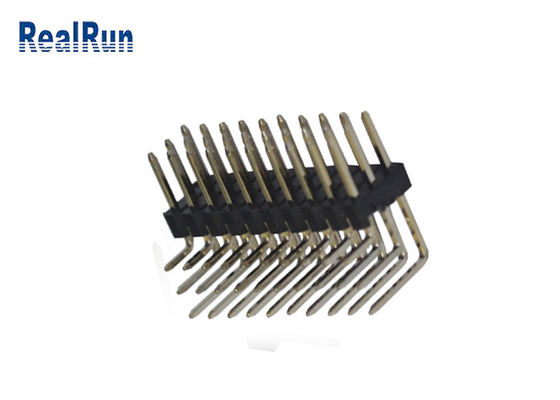

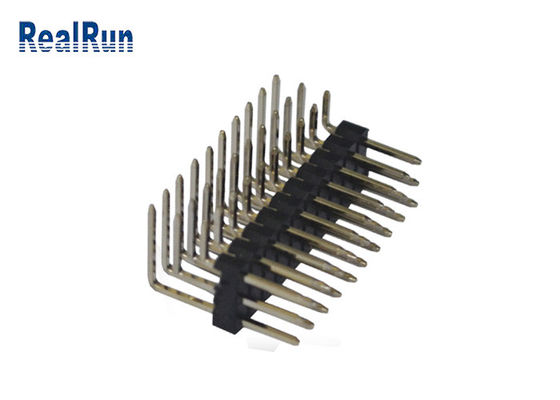

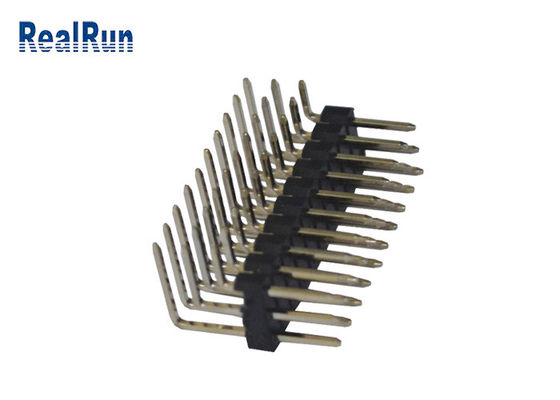

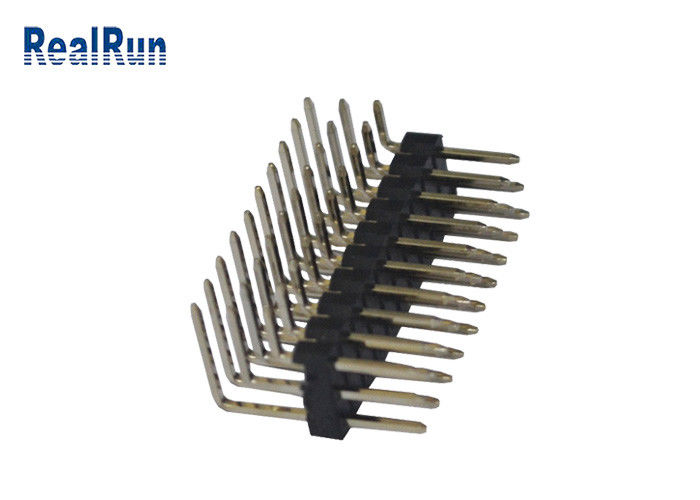

2.54mm Three Row Pin Header Right Angle PCB Surface Mount Male Connector
Product features:Fire prevention and high temperature resistance, stable performance and not easy to deform, long service life.
Product function: Play a connecting role, help connect PCb, conducting electricity and transmitting signals.
Scope of application:Suitable for various same electronic products.
| Name | Pin Header Connector/PCB Connector |
| Pitch | 2.54mm |
| Plastic Height | 2.5mm |
| Type | Right Angle Type |
| Insulator Color | Black/Grey |
| Insulator Material | PBT+30%G.F, UL 94V-0 |
| Current Rating | 3.0Amp |
| Contact Resistance(max) | 20m ohm Max at DC 3Amp |
| Insulation Resistance(min) | 1000M ohm Min at DC500V |
| Contact materials | Brass |
| Contact Plating | Tin or gold over nickel |
| Operation Temperature | -40~105℃ |
| Packing | Bag Packing/Tape&reel+CAP Packing |
| OEM/ODM | Accepted |
| Mounting Type | Through Hole |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2Pin~80Pin(Customized) |
Please feel free to contact us and we will send you the drawings you need.
What's the Pin Header
1. Pin header is called universal connector. Based on different designs for PCB,they choose different pitch connectors to meet.
2. 0.8mm/1.0mm/1.27mm/2.00mm/2.54mm 3.96 pitch pin header are featured products in our company. If you need special pin header that standard pitch couldn't satisfy, e-mail or call our sales team.
3. Generally, pin headers with suited female headers are used to finish created modules in electronic industry.
4. Regarding pin header electrical and mechanical properties, same pitch has the same function, which we have shown clearly in our data sheet.
5. Another common variation on pin header is called "machine pin" version. The normal version is formed out of stamped and folded sheet metal, machine pin connectors are formed by tooling the metal into the desired shape, which is a more robust, with a better joint and longer life, making it more expensive though. Still more and more automotive and medical industry customers choose machine pin to improve connection stability.
