| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.54*2.5-3*nP 36Pin |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing/Tube Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Place Of Origin: | Guangdong, China | Brand Name: | RealRun |
|---|---|---|---|
| Color: | Black | Pitch: | 2.54mm |
| Plastic Height: | 2.5mm | Insulator Material: | PBT+30%Glass Fiber, UL94V-0 |
| Contact Material: | Brass | Contact Plating: | Gold Or Tin Over Nickel |
| Current Rating: | 3.0Amp | Contact Resistance(max): | 20mΩ Max At DC 3Amp |
| Insulation Resistance(min): | 1000MΩ /Min At DC500V | Operating Temperature: | -40℃ To +105℃ |
| High Light: | 3.0Amp DIP Gold Plated Connector,PBT DIP Gold Plated Connector,H2.5mm Three Row Header Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

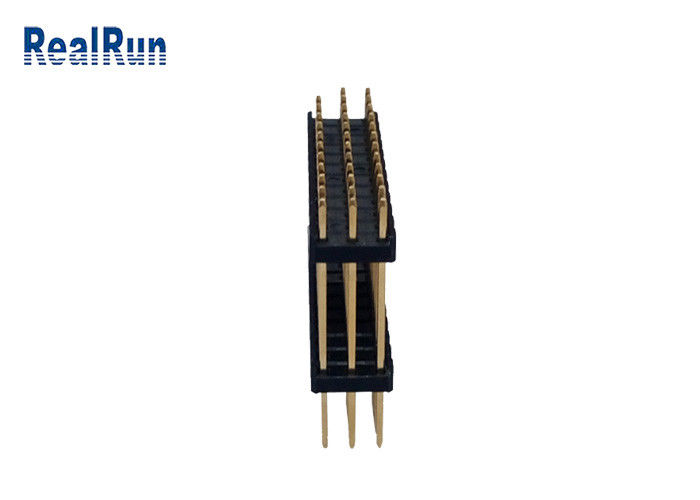

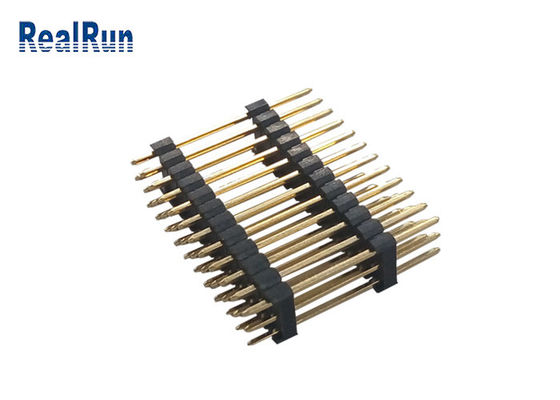

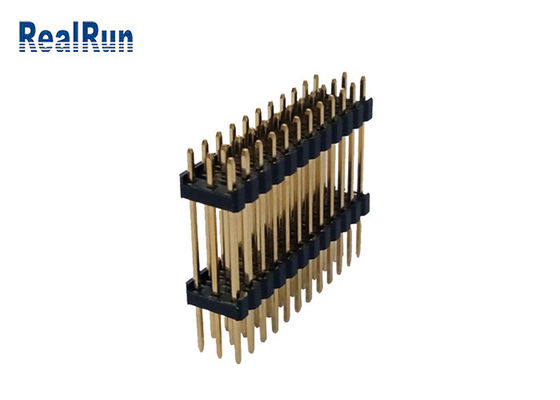

36 Pin H2.5mm Straight DIP Gold Plated Connector Three Row Double Plastic
1. Product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
2. Pin header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides.
3. Products are mainly used in:instrumentation, communication, security, medical equipment, computer motherboards, program-controlled switch, digital camera, LED photoelectricity, etc.
The face of strong demand customization, our strong R&D center, mold manufacturer and processing center, which can quickly grasp customer needs, providing OEM/ODM products with the most reliable product and precise connectors for different customers.:
| Name | Pin Header Connector/PCB Connector |
| Pitch | 2.54mm |
| Plastic Height | 2.5mm |
| Type | DIP Type |
| Insulator Color | Black/Grey |
| Insulator Material | PBT+30%G.F, UL 94V-0 |
| Current Rating | 3.0Amp |
| Contact Resistance(max) | 20m ohm Max at DC 3Amp |
| Insulation Resistance(min) | 1000M ohm /Min at DC500V |
| Contact materials | Brass |
| Contact Plating | Tin or gold over nickel |
| Operation Temperature | -40~105℃ |
| Packing | Bag Packing/Tape&reel+CAP Packing |
| OEM/ODM | Accepted |
| Mounting Type | Through Hole |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2Pin~80Pin(Customized) |
Please feel free to contact us and we will send you the drawings you need.
Description
1. Pin header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides.
2. Its function is to act as a bridge between the blocked or isolated circuits in the circuit, and to take on the task of current or signal transmission.
3. It is usually used together with female header to form board to board connection; or it is used together with electronic harness terminal to form board to line connection; it can also be used independently for board to board connection.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: If happend with the defective products when receiving the goods, how to deal with?
1. Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all the responsibility.
2. First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.
3. Second: discuss the solutions.
4. Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.
Q: Are you manufacture of trading company?
A: We are a manufacture in Shenzhen, China.
Q: Is it OK to print my logo on the packing?
A: Of course, customized packing accepted!! But it may bring some cost, it depends on the qty and the packing.
