Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | BH1.27-nT 20T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Color: | Black | Pitch: | 1.27mm |
|---|---|---|---|
| Contact Material: | Brass | Insulator Material: | PA6T+30%Glass Fiber, UL94V-0 |
| Termination: | Solder | Contact Plating: | Gold/Tin Over Nickel |
| Current Rating: | 1A | Operation Temperature: | -40℃ To +105℃ |
| Insulation Resistance: | 1000 MΩ Min | Contact Resistance: | 30mΩ Max At DC 1A |
| Processing Temperature: | 260℃ For 10 Seconds | ||
| High Light: | 20P PCB Solder Box Header,1.27mm Pitch Solder Box Header,PA6T Surface Mount SMT Connector |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

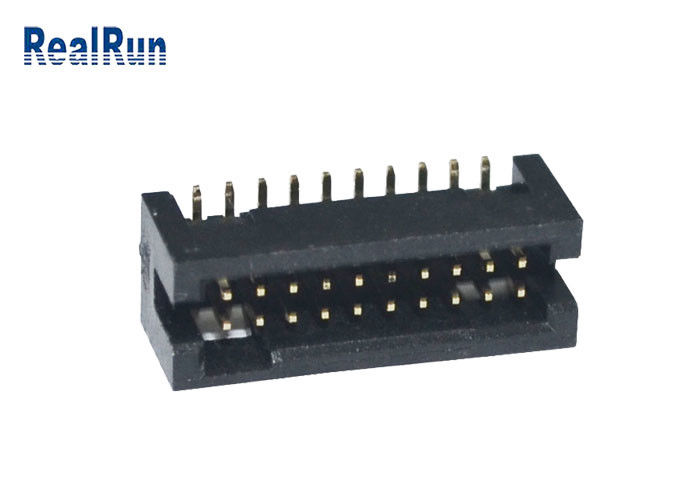

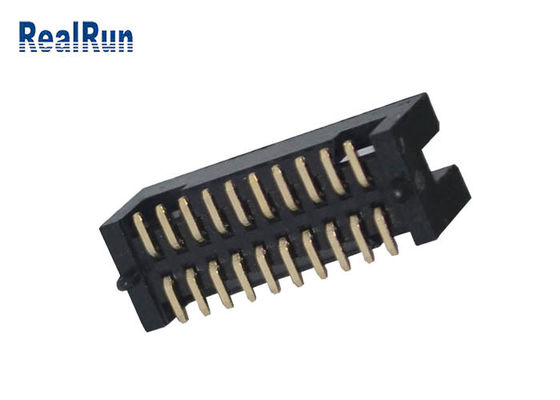

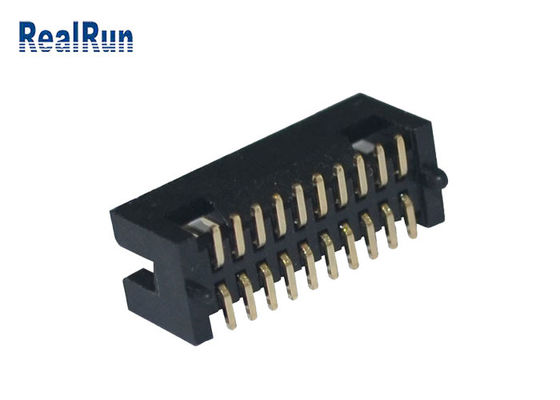

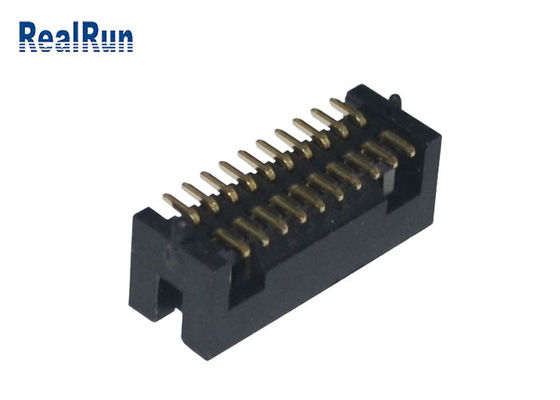

Solder Box Header 1.27mm Pitch Dual Row 20 Pin PCB Surface Mount SMT Connector
Product features: high temperature resistant to high voltage electrical conductivity.
Product material: PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating.
Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal.
|
Name |
Box Header Connector |
|
Pitch |
1.27mm |
|
Type |
SMT type |
|
Insulator Color |
Black |
|
Insulator |
PA6T+30%G.F UL 94V-0 |
|
Current Rating |
1A |
|
Contact Resistance(max) |
30m ohm Max |
| Operation Temperature | -40℃ to +105℃ |
|
Contact |
Brass |
|
Insulation Resistance(min) |
1000M ohm Min at DC 500V |
|
Contact Plated |
Tin or gold over nickel |
|
Insulator material |
PA6T |
|
Processing Temperature |
260℃ for 10 seconds |
|
Packing |
Tray Packing |
|
OEM/ODM |
Accepted |
Please feel free to contact us and we will send you the drawings you need.
Our Advantages:
1.Have a strong research and development ability for a new product
2. Equipment and manufacturing ability for would
3. Competitive price , and in time delivery well-selling in both domestic and foreign markets.
4. Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .
5. Reasonable prices, very competitive and reliable.
6. Excellent sales team and tech team ready to serve you.
7. Fast delivery.
8. OEM services with agreed quantity by both parties.
9. Specializes in the development , design , production and sale of communication network connectors .
10. We hope to make long term business cooperation with all our customers.
Shipping:
1. We can shipping all over the world by DHL, UPS, FEdex, TNT and EMS. The packaging is very safe and strong. Please nitfy me you have any special needs
2. It will take around 3-7 days to reach your hands.
